8061i05.00

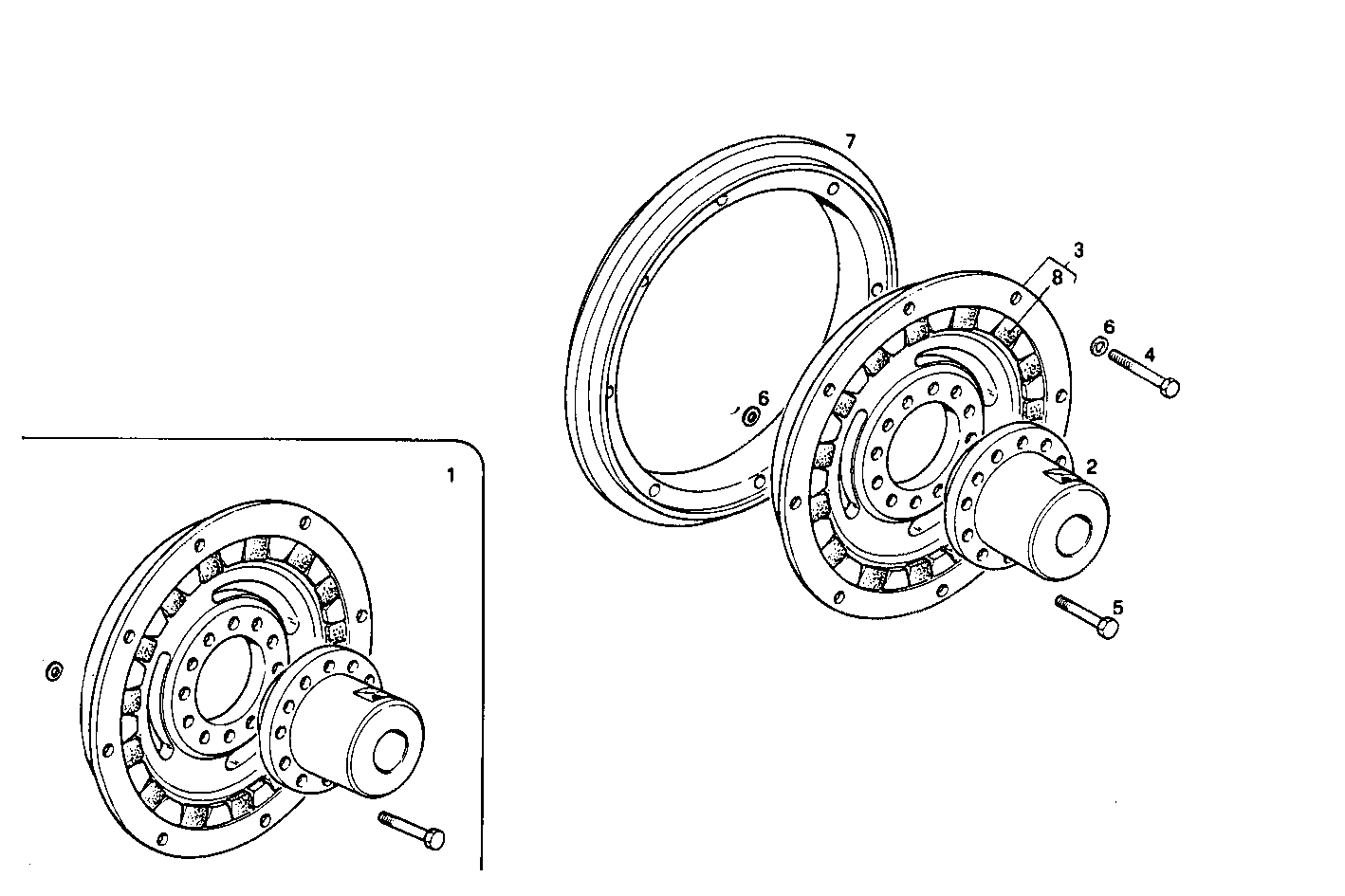

A44020002 ELASTIC COUPLING - for genset - loose

Iveco/FPT ELASTIC COUPLING

Item Part number Description
1 8105572 FLEXIBLE COUPLING
2 8105573 HUB
3 4935821 COUPLER ASSY
4 15888821 HEXAGON BOLT M10X1,25X70 MM
5 15970921 HEXAGON BOLT M10X1,25X35 MM
6 17090174 SPRING WASHER Ø10X20 MM
7 8100419 RING
8 4931816 DOWEL
