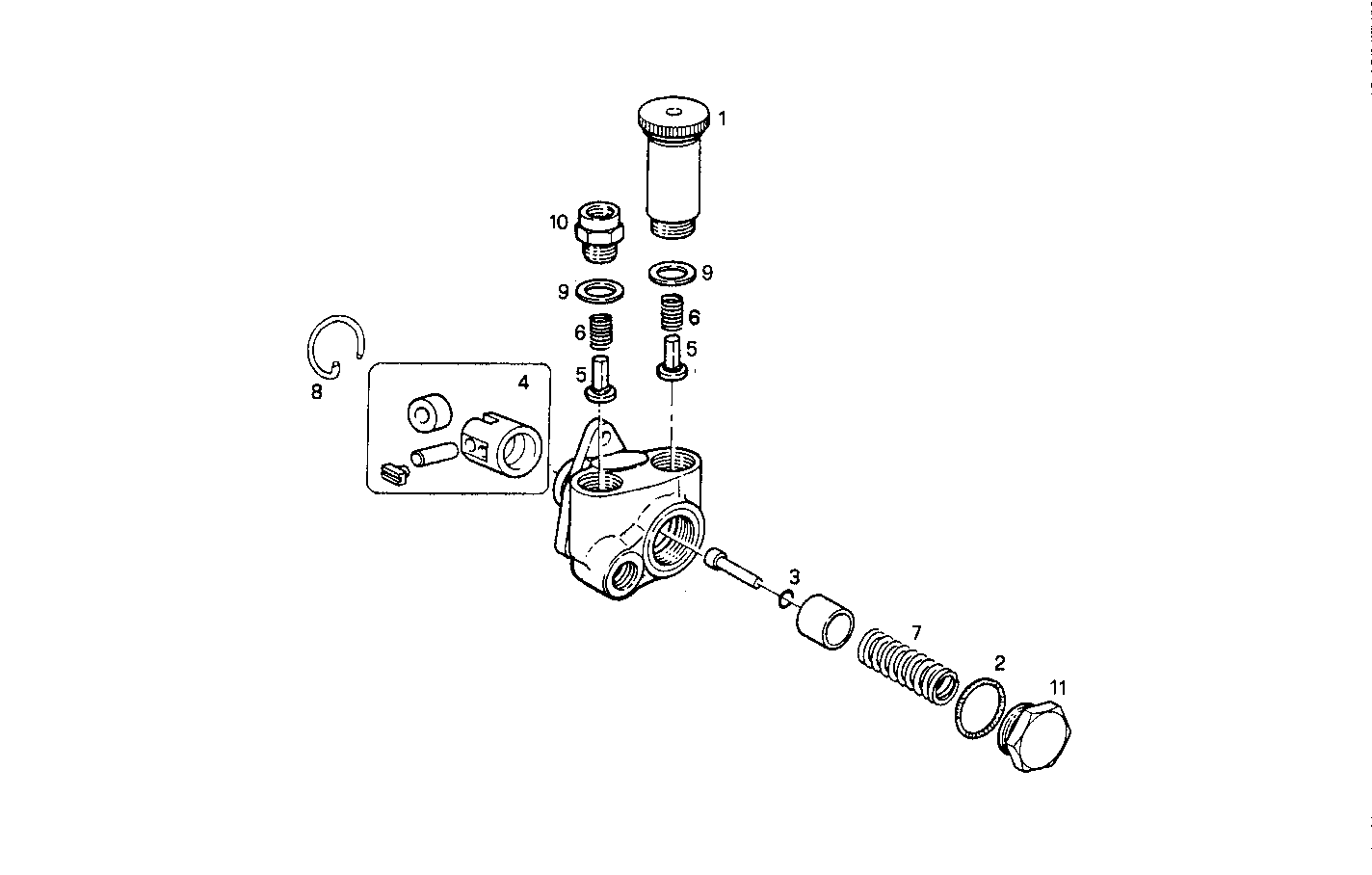

2040.038 FUEL PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 1176332 | PUMP |
| 2 | 1290550 | GASKET |
| 3 | 1289782 | O-RING |
| 4 | 2985086 | ROLLER TAPPET |
| 5 | 1290567 | VALVE |
| 6 | 1290593 | SPRING |
| 7 | 1290601 | SPRING |
| 8 | 1290591 | CIRCLIP |
| 9 | 1287773 | GASKET |
| 10 | 1290570 | SCREW CONNECTOR SP=0,18 MM |
| 11 | 1290590 | SCREW CAP/PLUG SP=0,18 MM |
