8061i05.05

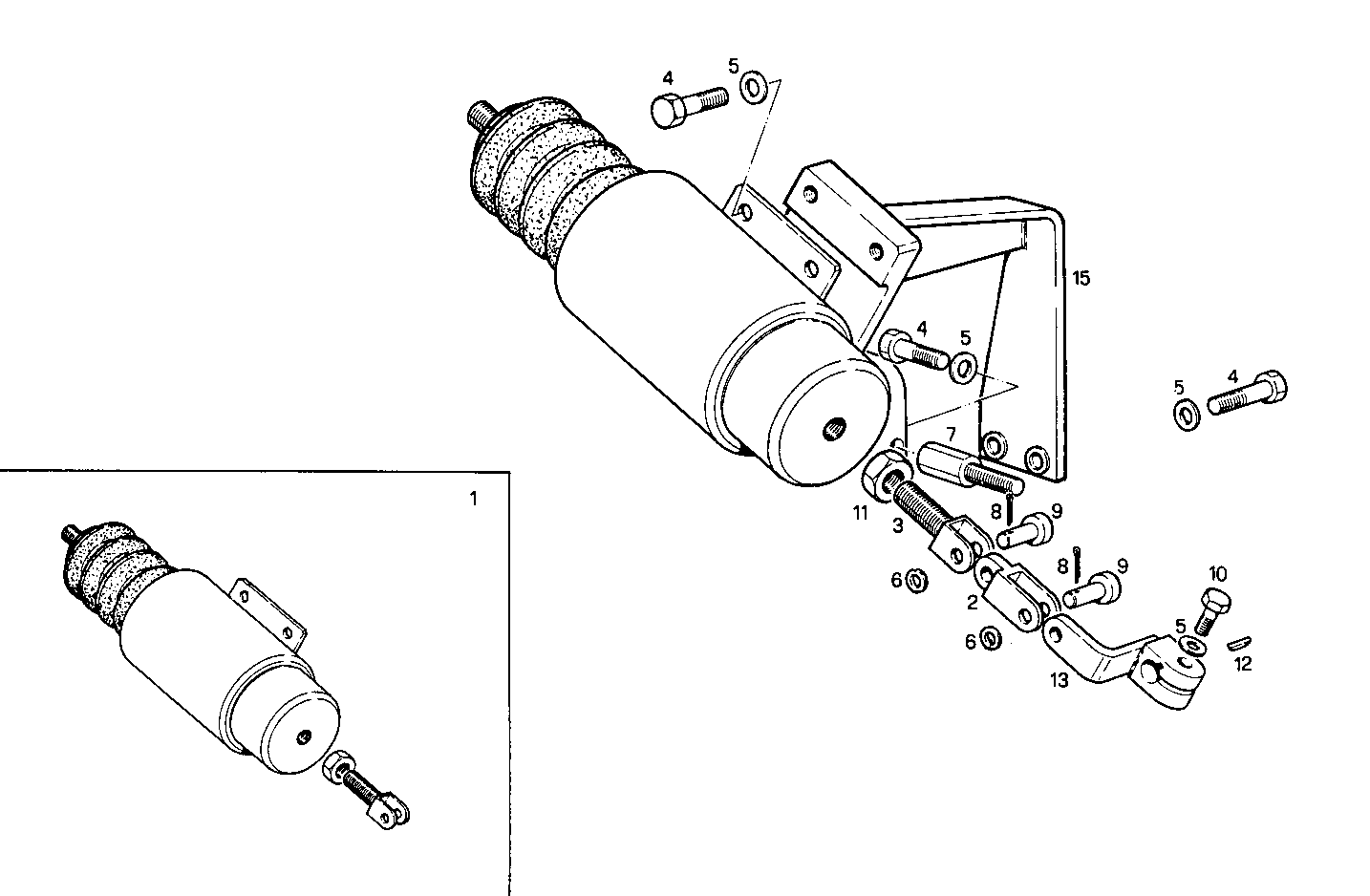

A38410003 STOP SOLENOID - ENERGIZE TO STOP - 12V

Iveco/FPT STOP SOLENOID - ENERGIZE TO STOP - 12V

Item Part number Description
1 8110899 SOLENOID ASSY 12V
2 8108833 CLEVIS
3 8109159 CLEVIS M6X40
4 10902221 HEXAGON BOLT M6X16 MM
5 17088474 WASHER Ø6X12 MM
6 14497821 WASHER Ø5X10X1 MM
7 8110818 SPACING BAR
8 16852501 SPLIT PIN Ø1,6X12 MM
9 17718411 PIN Ø5 MM
10 10977721 HEXAGON BOLT M5X14 MM
11 17037821 HEXAGON NUT M6X1
12 1136607 KEY
13 8110753 LEVER
15 8110754 SUPPORT [up to 12-90]
