8061i05.05

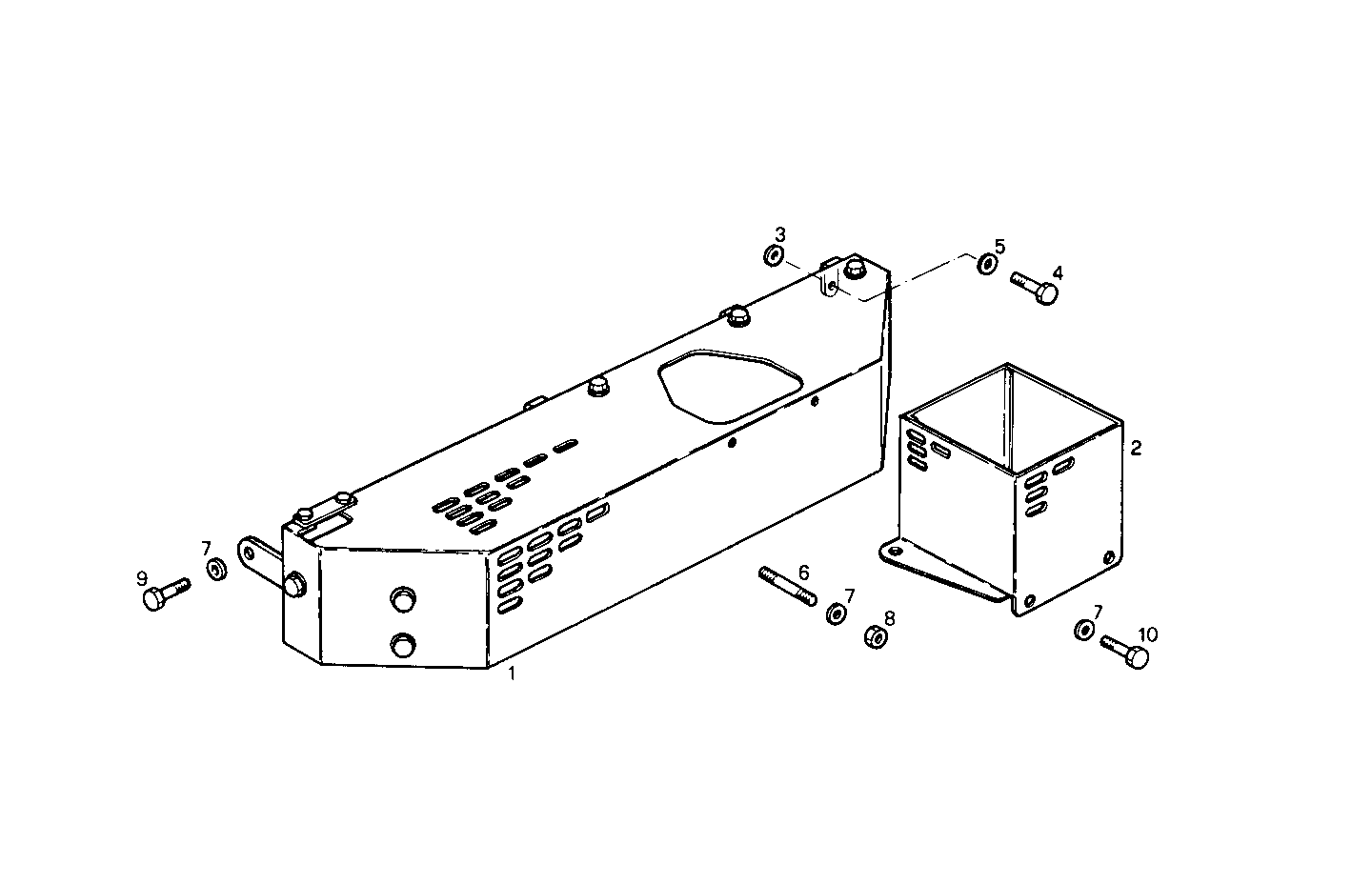

A48040009 GUARD - for exhaust manifold

Iveco/FPT GUARD

Item Part number Description
1 8020119 PROTECTION
2 8020120 PROTECTION
3 16665604 WASHER Ø10X20 MM
4 15970521 HEXAGON BOLT M10X20 MM
5 17090174 SPRING WASHER Ø10X20 MM
6 16746524 STUD M8X16X16
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
9 16605524 HEXAGON BOLT M8X20 MM
10 16605424 SCREW M8X16 MM (8.8)
