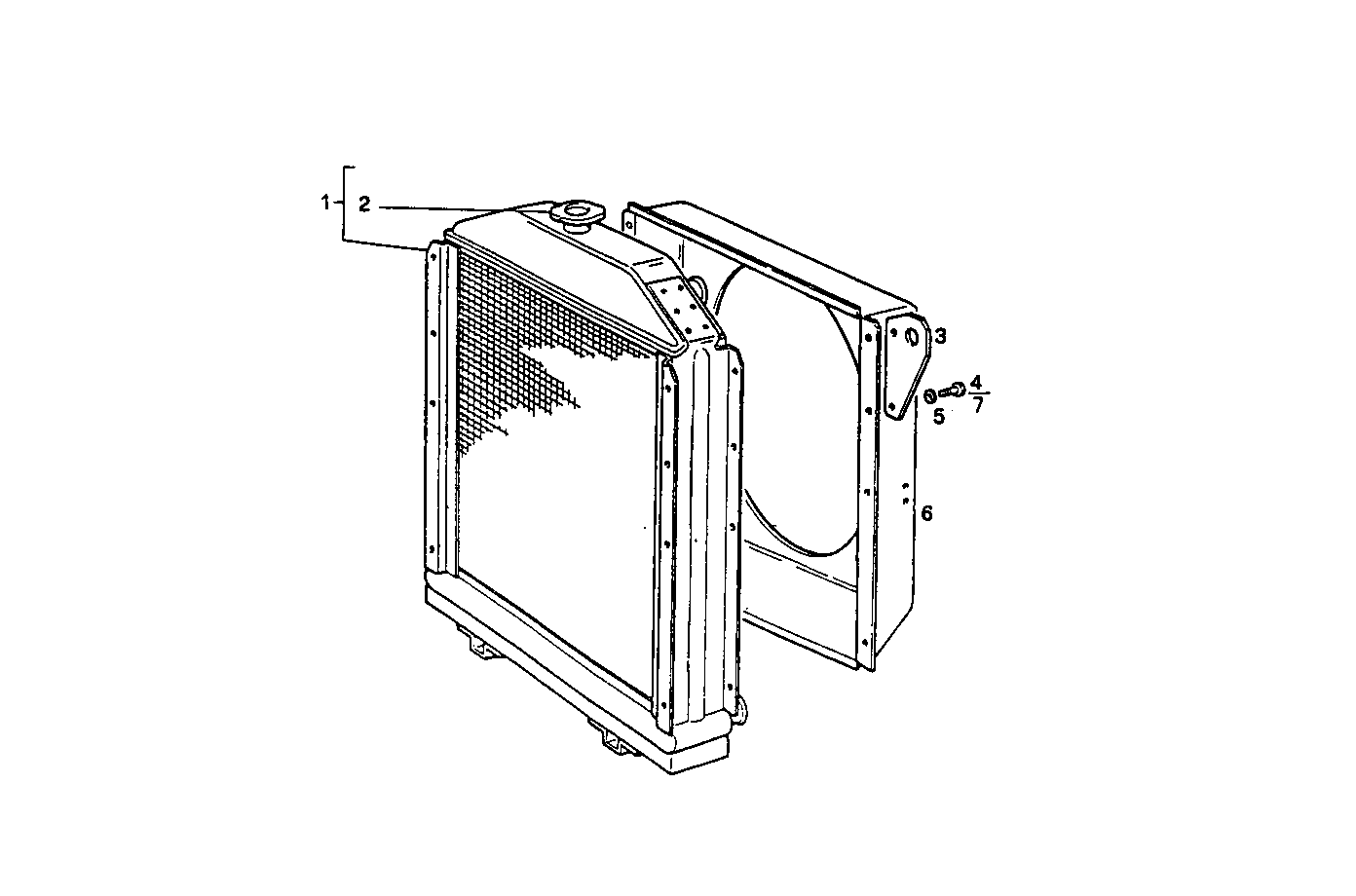

T2201001 RADIATOR - (components)
Item | Part number | Description |
---|---|---|
1 | 8016053 | WATER RADIATOR |
2 | 4935488 | RADIATOR PLUG |
3 | 8104588 | PLATE |
4 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
5 | 17088971 | SPRING WASHER Ø6X18 MM |
6 | 8009076 | AIR HOOD |
7 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
