8061i06.05

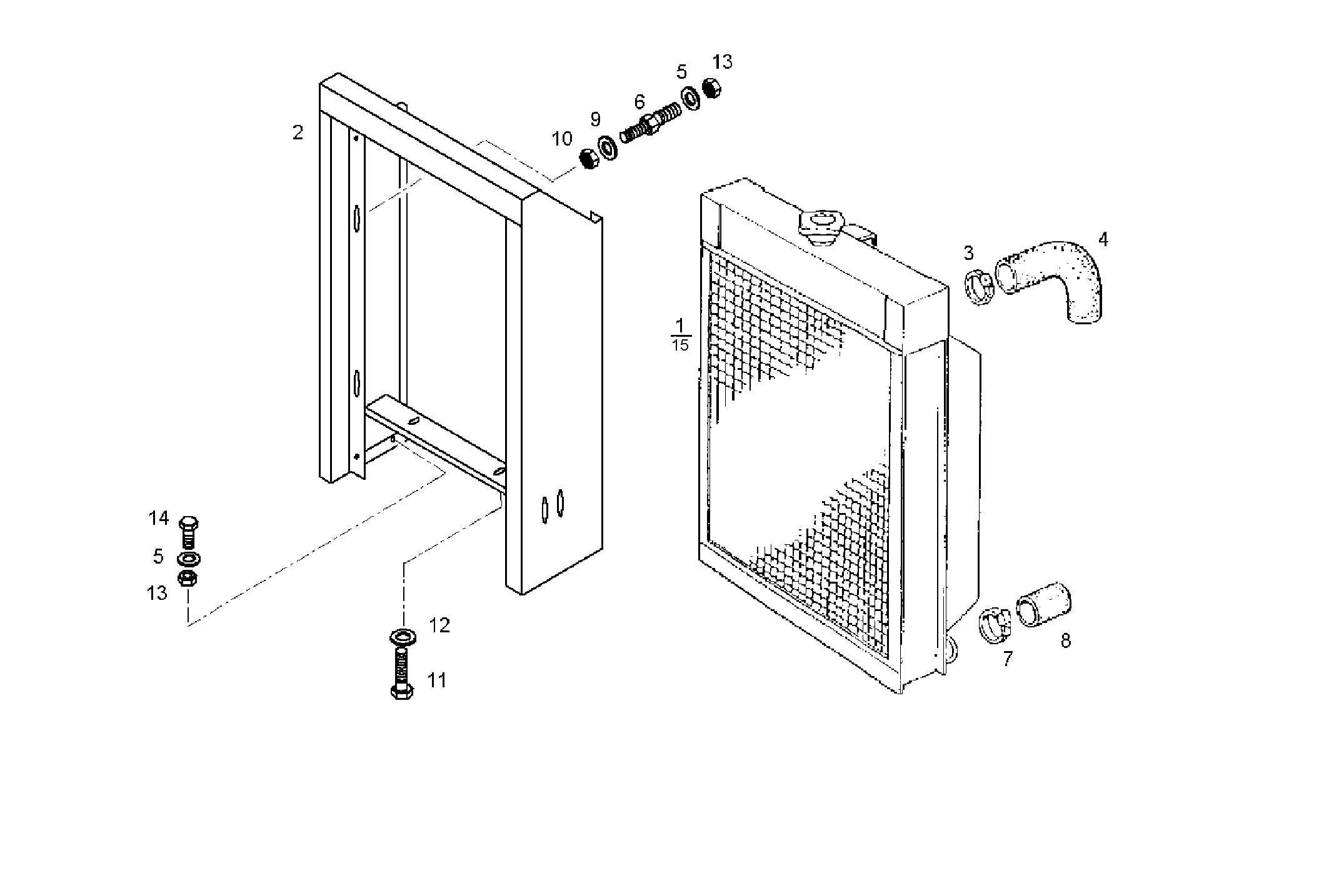

A22010072 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8024731 | WATER RADIATOR OPT. |
| 2 | 8030589 | SUPPORT |
| 3 | 17764991 | CLIP Ø50/70 MM |
| 4 | 8024783 | CONNECTOR SLEEVE |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 8031777 | SPACING BAR M6-M8 |
| 7 | 17764791 | CLIP Ø32/50 MM |
| 8 | 17742887 | RUBBER SLEEVE |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 17037925 | HEXAGON NUT M8X1,25 |
| 11 | 16607434 | HEXAGON BOLT M10X16 MM |
| 12 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 13 | 17037821 | HEXAGON NUT M6X1 |
| 14 | 16603677 | HEXAGON BOLT M6X16 MM |
| 15 | 8039266 | WATER RADIATOR OPT. |
