8061i06.05

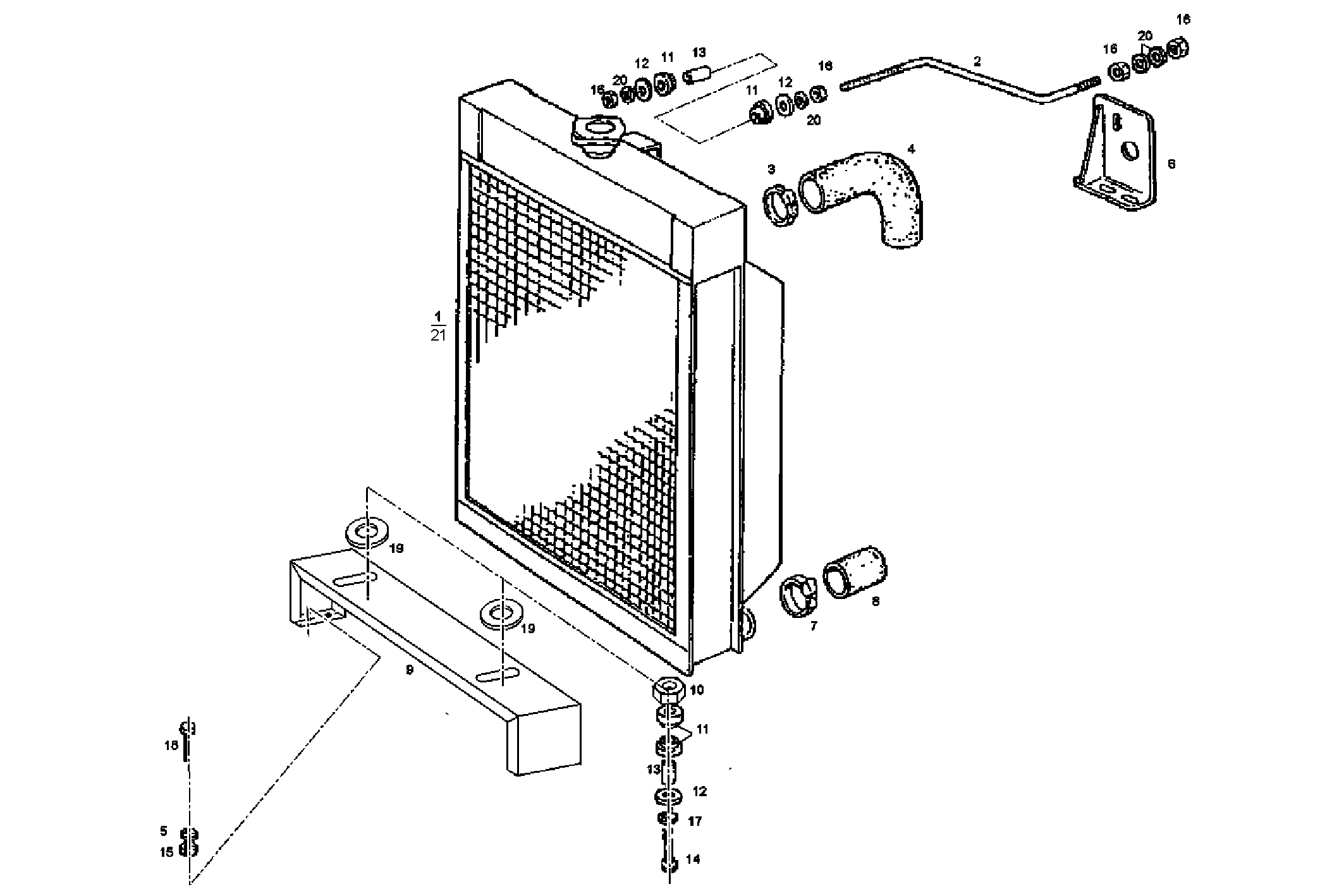

A22010073 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8024731 | WATER RADIATOR OPT. |
| 2 | 8024390 | TIE ROD |
| 3 | 17764991 | CLIP Ø50/70 MM |
| 4 | 8024783 | CONNECTOR SLEEVE |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 8020521 | RETAINER |
| 7 | 17764791 | CLIP Ø32/50 MM |
| 8 | 17742887 | RUBBER SLEEVE |
| 9 | 503110170 | SUPPORT |
| 10 | 17038131 | HEXAGON NUT M10 |
| 11 | 741569 | RUBBER LUG |
| 12 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 13 | 8108634 | SPACING BAR |
| 14 | 16608525 | HEXAGON BOLT M10X1,5X70 MM (8.8) |
| 15 | 17037821 | HEXAGON NUT M6X1 |
| 16 | 17038425 | HEXAGON NUT M12 (8) |
| 17 | 17090174 | SPRING WASHER Ø10X20 MM |
| 18 | 16603677 | HEXAGON BOLT M6X16 MM |
| 19 | 17096050 | WASHER Ø20X37 MM |
| 20 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 21 | 8039266 | WATER RADIATOR OPT. |
