8061i25.05

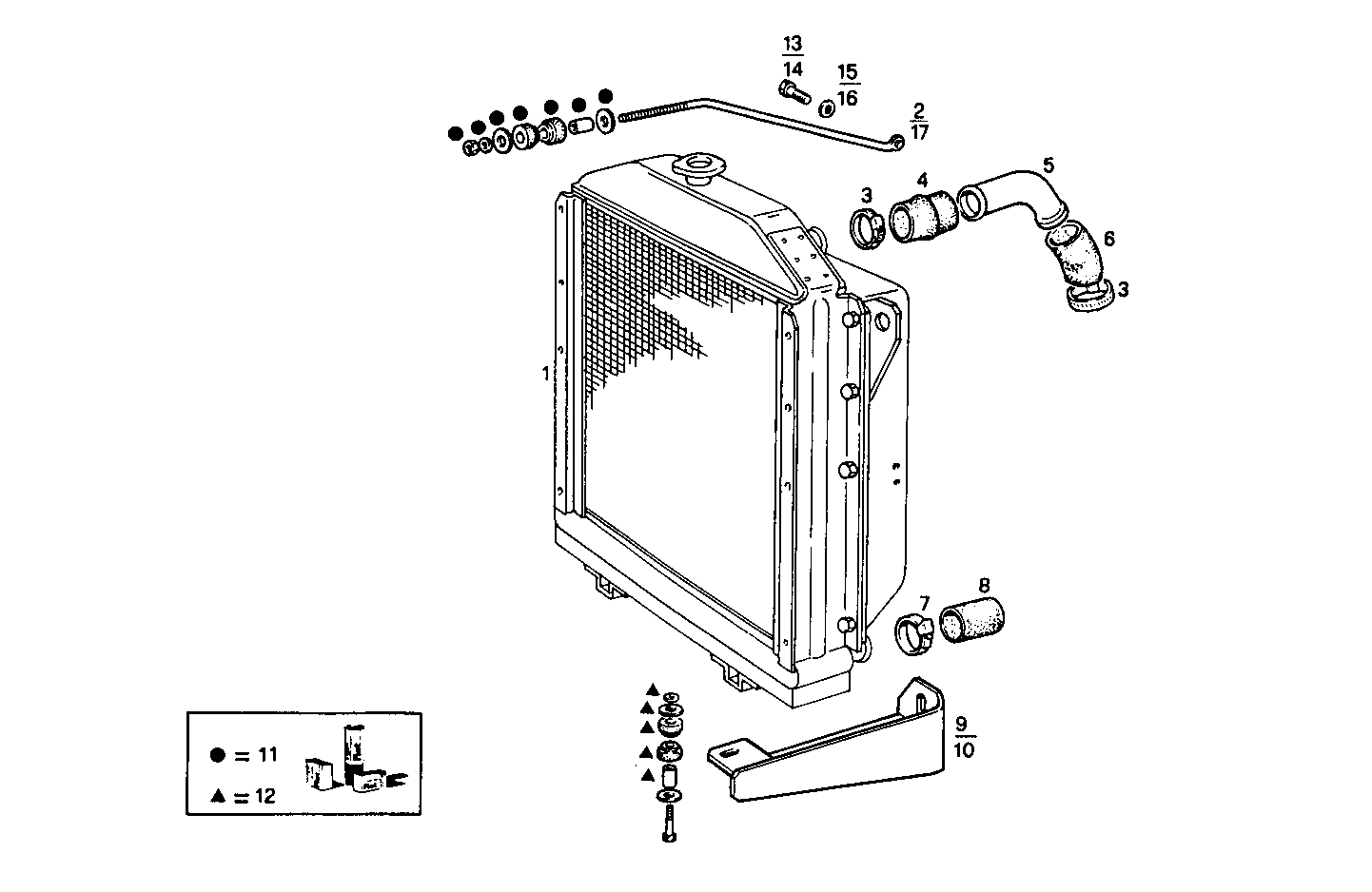

A22010011 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8017576 WATER RADIATOR ASSY
2 8104606 TIE ROD LEFT
3 17764891 CLIP Ø40/60 MM
4 17743887 RUBBER SLEEVE
5 4936022 WATER PIPE
6 4787630 RUBBER SLEEVE
7 17764791 CLIP Ø32/50 MM
8 4934627 RUBBER SLEEVE
9 8104584 SUPPORT LEFT
10 8104586 SUPPORT RIGHT
11 8090340 KIT-RADIATOR A.S. COMPLETE
12 8090341 KIT-RADIATOR A.S. COMPLETE
13 16605734 HEXAGON BOLT M8X30 MM
14 98491344 SCREW LEFT
15 10519601 WASHER Ø8X17 MM
16 98415215 WASHER Ø10X20X2,3 MM
17 8104607 TIE ROD
