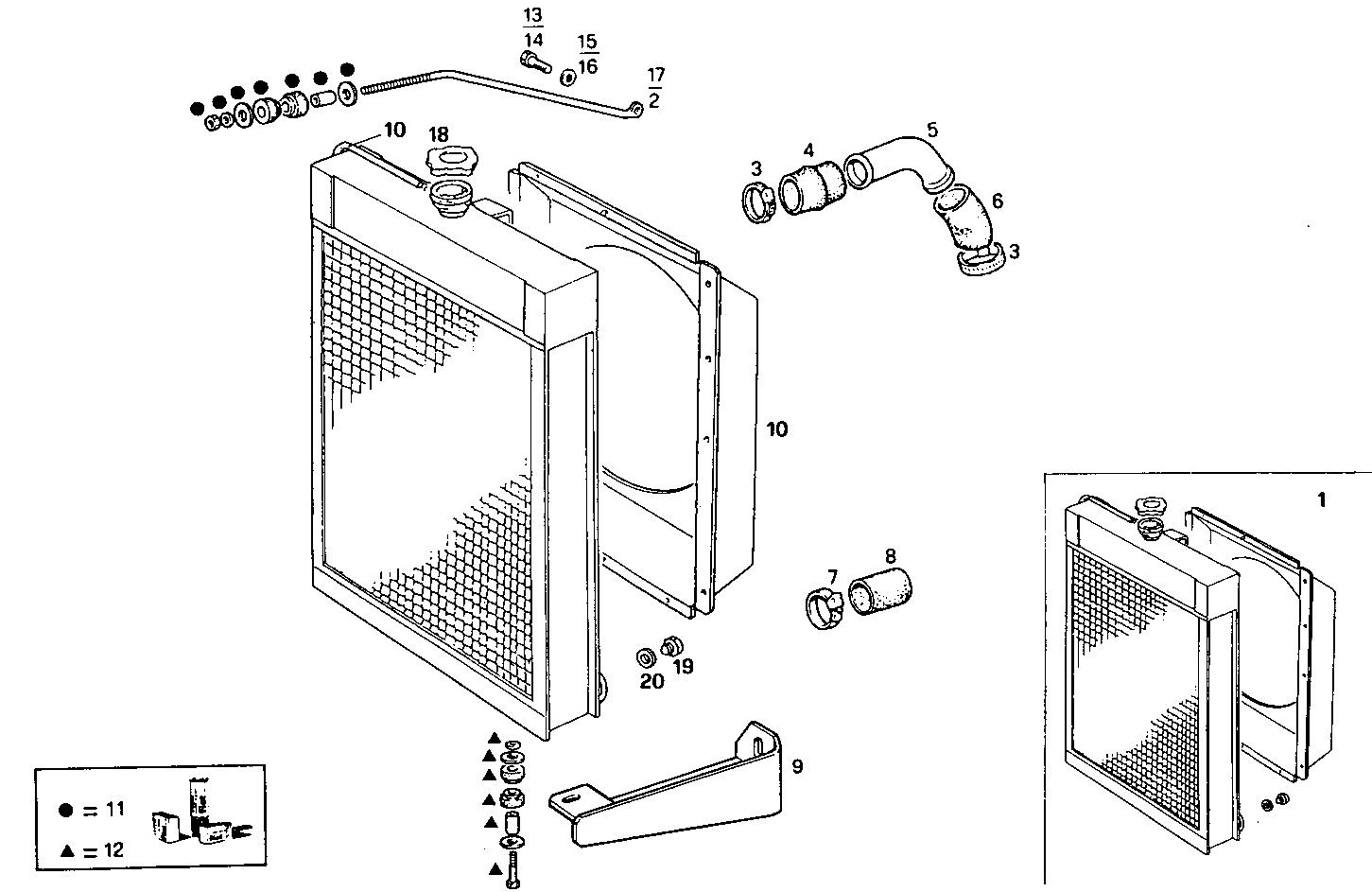

| Item |
Part number |
Description |
|
1 |
8024214 |
WATER RADIATOR ASSY |
|
2 |
8104606 |
TIE ROD LEFT |
|
3 |
17764891 |
CLIP Ø40/60 MM |
|
4 |
17743887 |
RUBBER SLEEVE |
|
5 |
4936022 |
WATER PIPE |
|
6 |
4787630 |
RUBBER SLEEVE |
|
7 |
17764791 |
CLIP Ø32/50 MM |
|
8 |
4934627 |
RUBBER SLEEVE |
|
9 |
8024540 |
SUPPORT LEFT |
|
10 |
17723081 |
WATER HOSE Ø7X25 MM |
|
11 |
8090340 |
KIT-RADIATOR A.S. COMPLETE |
|
12 |
8090341 |
KIT-RADIATOR A.S. COMPLETE |
|
13 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
14 |
4854882 |
SCREW M8X1,25X45 MM |
|
15 |
17094914 |
WASHER 8x16 |
|
16 |
98488128 |
WASHER Ø9 MM [up to ...] |
|
17 |
8104607 |
TIE ROD |
|
18 |
4935488 |
RADIATOR PLUG |
|
19 |
16992340 |
THREADED PLUG M14X1,5 |
|
20 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
21 |
8024539 |
AIR HOOD |
