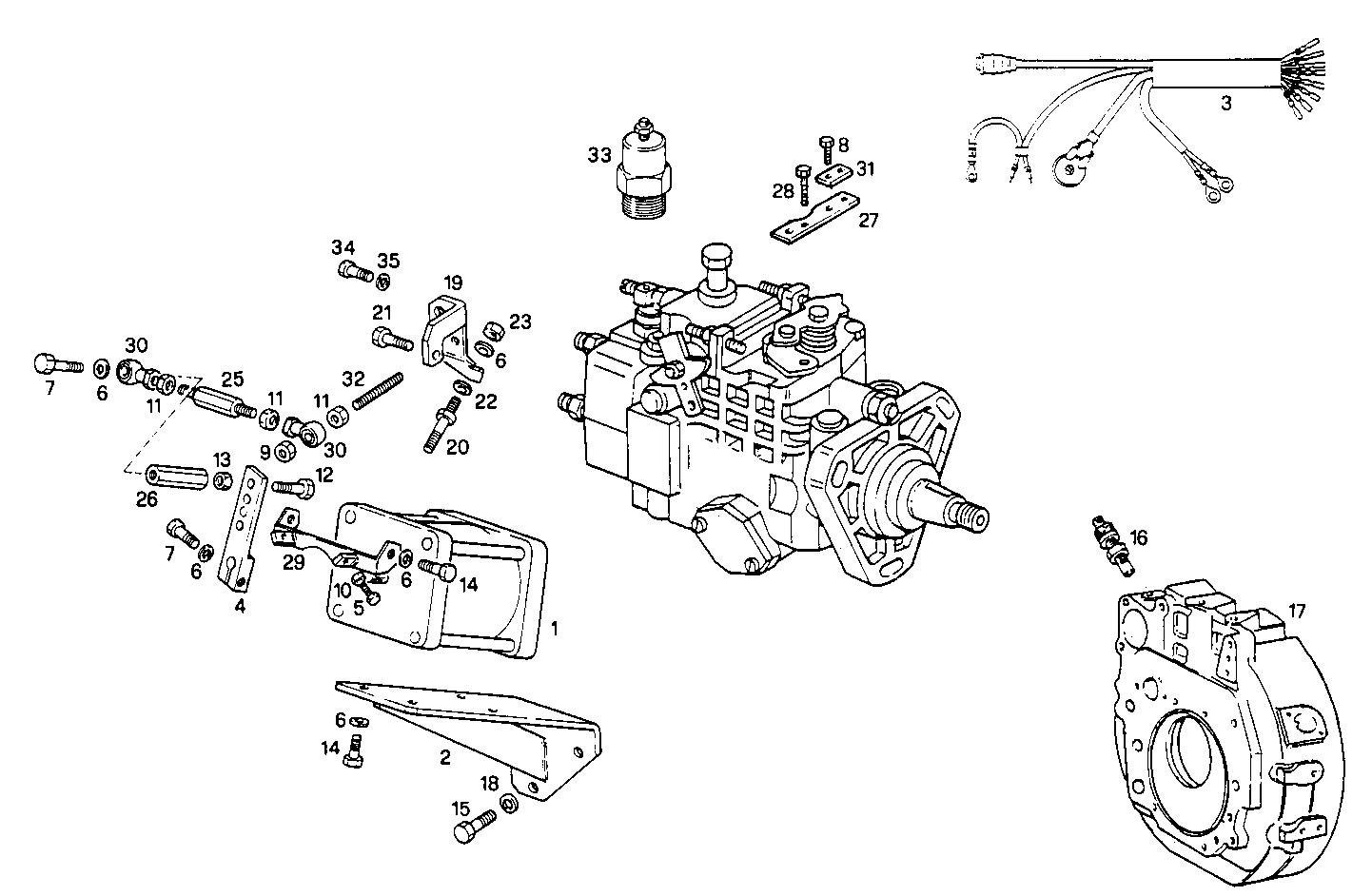

A28010055 ELECTRONIC GOVERNOR WOODWARD - 24V

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

Item Part number Description
1 8108922 INJECTION CONTROL ASSY
2 8011517 SUPPORT
3 8108631 ENGINE HARNESS ASSY [up to 06-95]
4 8008011 LEVER
5 8108966 SCREW
6 17088474 WASHER Ø6X12 MM
7 16603724 HEXAGON BOLT M6X20 MM (8.8)
8 16603524 SCREW M6X12 MM (8.8)
9 16981731 NUT M6
10 17037821 HEXAGON NUT M6X1
12 16603824 SCREW M6X25
13 17152721 NUT M6
14 4934404 SCREW
15 16609824 HEXAGON BOLT M12X1,75X25 MM
16 4933865 TRANSMITTER
17 8108389 FLYWHEEL HOUSING ASSY
18 17091074 WASHER Ø12X24X2,8 MM
19 8108174 RETAINER
20 8104071 STUD
21 8104394 SCREW M6X50
22 17094504 WASHER Ø5,3X10 MM
25 17720114 TIE ROD
26 8821393 TIE ROD
27 8108368 LEVER
28 18019514 SCREW M4X10
29 8108397 RETAINER
30 4934541 BRACE/STRUT
31 8103374 SPACING BAR
32 8100610 TIE ROD
33 8105437 ELECTROVALVE 24V opt.
34 16605424 SCREW M8X16 MM (8.8)
35 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
