8061i25.05A500

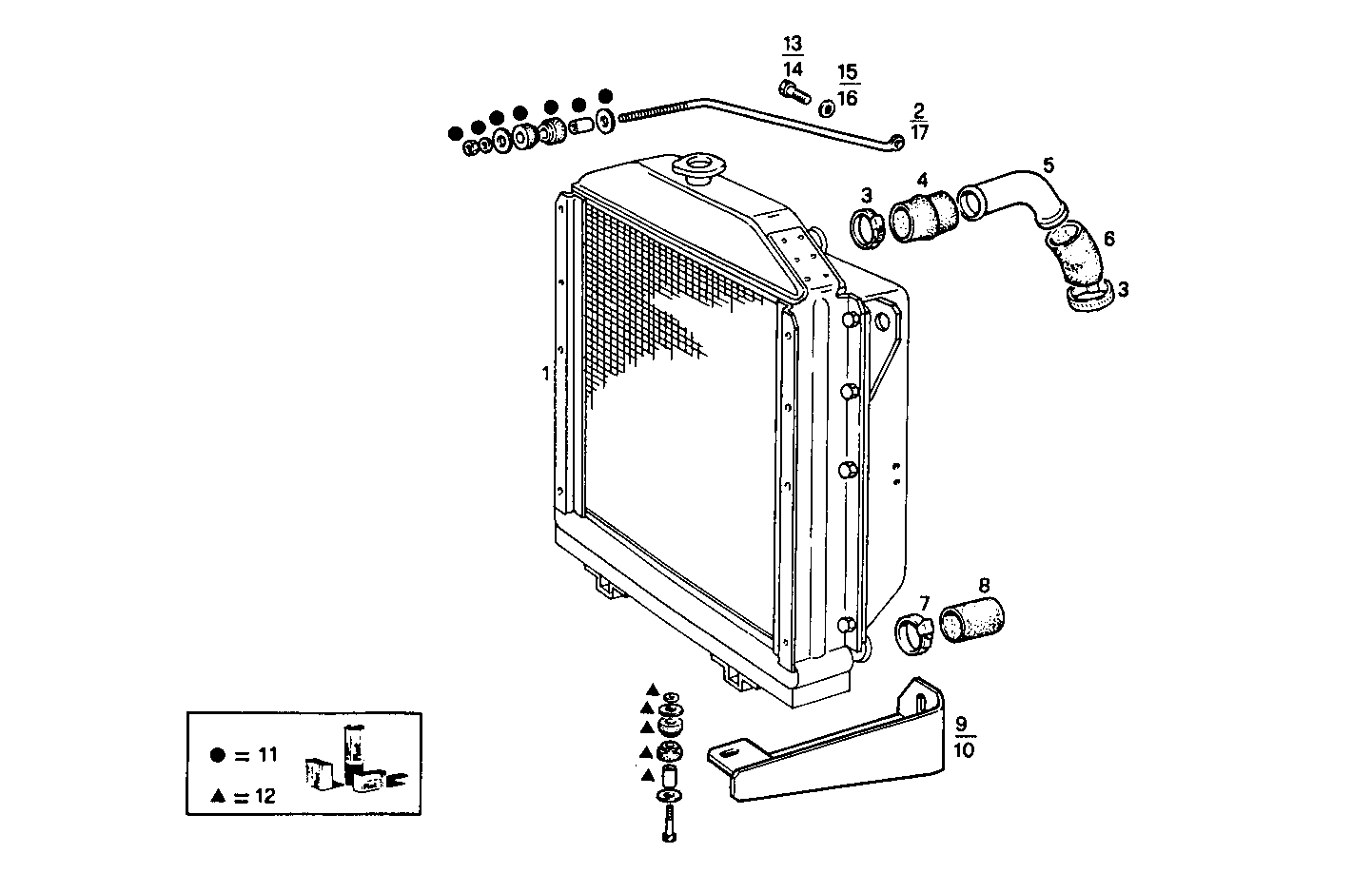

A22010011 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted
Item | Part number | Description |
---|---|---|
1 | 8017576 | WATER RADIATOR ASSY |
2 | 8104606 | TIE ROD LEFT |
3 | 17764891 | CLIP Ø40/60 MM |
4 | 17743887 | RUBBER SLEEVE |
5 | 4936022 | WATER PIPE |
6 | 4787630 | RUBBER SLEEVE |
7 | 17764791 | CLIP Ø32/50 MM |
8 | 4934627 | RUBBER SLEEVE |
9 | 8104584 | SUPPORT LEFT |
10 | 8104586 | SUPPORT RIGHT |
11 | 8090340 | KIT-RADIATOR A.S. COMPLETE |
12 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
13 | 16605734 | HEXAGON BOLT M8X30 MM |
14 | 98491344 | SCREW LEFT |
15 | 10519601 | WASHER Ø8X17 MM |
16 | 98415215 | WASHER Ø10X20X2,3 MM |
17 | 8104607 | TIE ROD |
