8061i40.05

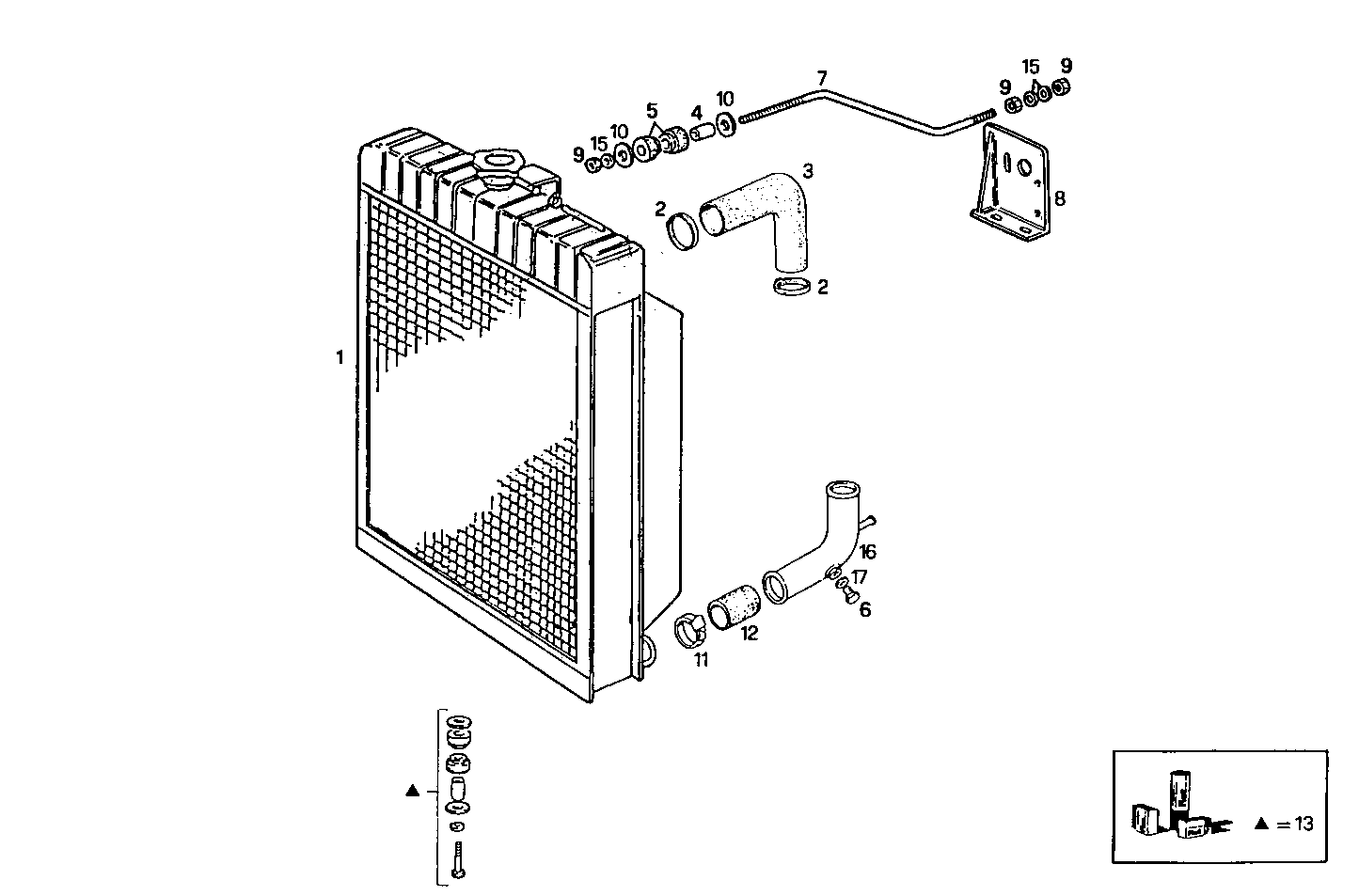

A22010065 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted
| Item | Part number | Description |
|---|---|---|
| 1 | 8025606 | WATER RADIATOR ASSY |
| 2 | 17764991 | CLIP Ø50/70 MM |
| 3 | 8024783 | CONNECTOR SLEEVE |
| 4 | 8108634 | SPACING BAR |
| 5 | 741569 | RUBBER LUG |
| 6 | 16992111 | THREADED PLUG M10X1 |
| 7 | 8024390 | TIE ROD |
| 8 | 8020521 | RETAINER |
| 9 | 17038421 | HEXAGON NUT M12 (8) |
| 10 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 11 | 17764791 | CLIP Ø32/50 MM |
| 12 | 17742887 | RUBBER SLEEVE |
| 13 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 14 | 17090271 | WASHER Ø10X20X2,6 MM |
| 15 | 17091074 | WASHER Ø12X24X2,8 MM |
| 16 | 8028889 | WATER PIPE |
| 17 | 4858606 | GASKET Ø10X14X1 MM |
