8061i40.05

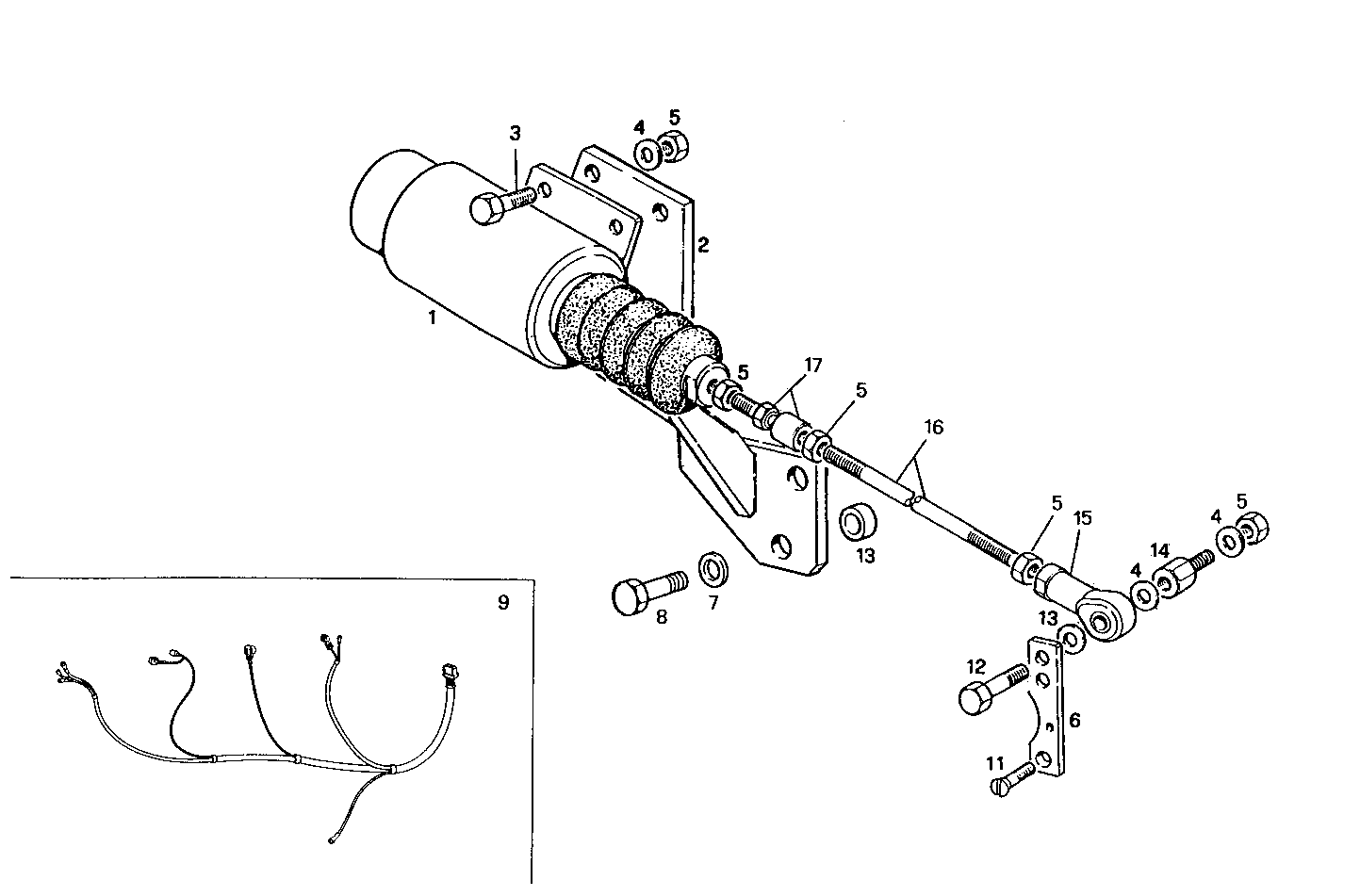

A38410033 STOP SOLENOID - ENERGIZE TO STOP - 12V
Item | Part number | Description |
---|---|---|
1 | 8105420 | SOLENOID 12V opt. |
2 | 8109366 | SUPPORT |
3 | 10902121 | HEXAGON BOLT M6X14 MM |
4 | 17088474 | WASHER Ø6X12 MM |
5 | 17037821 | HEXAGON NUT M6X1 |
6 | 8108368 | LEVER |
7 | 17091074 | WASHER Ø12X24X2,8 MM |
8 | 16610124 | HEXAGON BOLT M12X40 MM |
9 | 8023538 | ENGINE HARNESS |
11 | 18019514 | SCREW M4X10 |
13 | 4832132 | SPACING BAR |
14 | 8105581 | STUD |
15 | 4934541 | BRACE/STRUT |
16 | 8100610 | TIE ROD |
17 | 8109368 | TIE ROD |
