8061M12.00

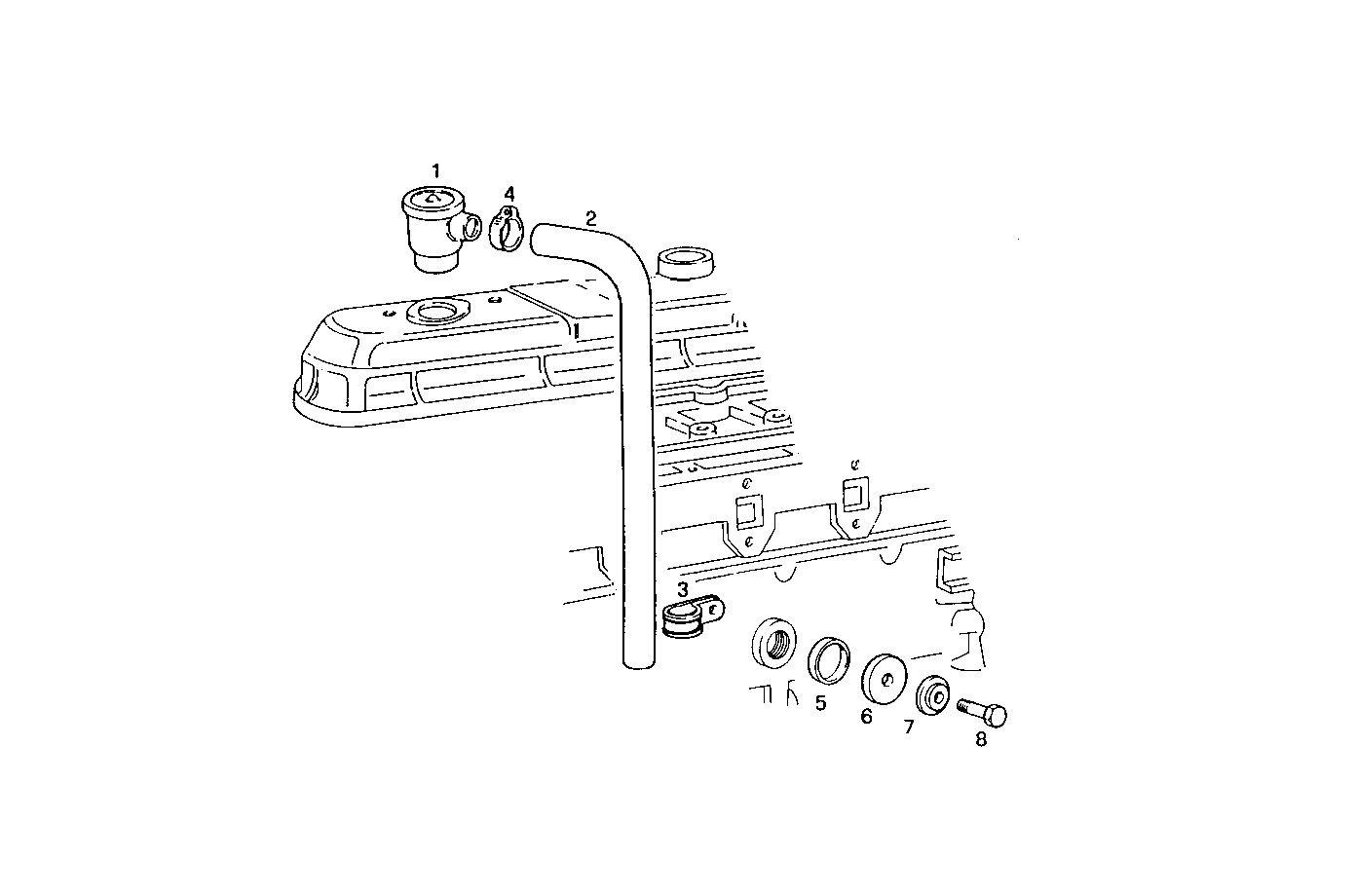

0450.078 ENGINE BREATHERS [D 04-1991] [from04-1991]
Item | Part number | Description |
---|---|---|
1 | 4812047 | BREATHER |
2 | 4817952 | RUBBER SLEEVE |
3 | 10450890 | PIPE CLIP Ø24 MM |
4 | 17764691 | CLIP Ø25/40 MM |
5 | 4600893 | GASKET |
6 | 4811892 | COVER |
7 | 4716734 | WASHER |
8 | 16044024 | HEXAGON BOLT M8X40 MM |
