8061M12.00

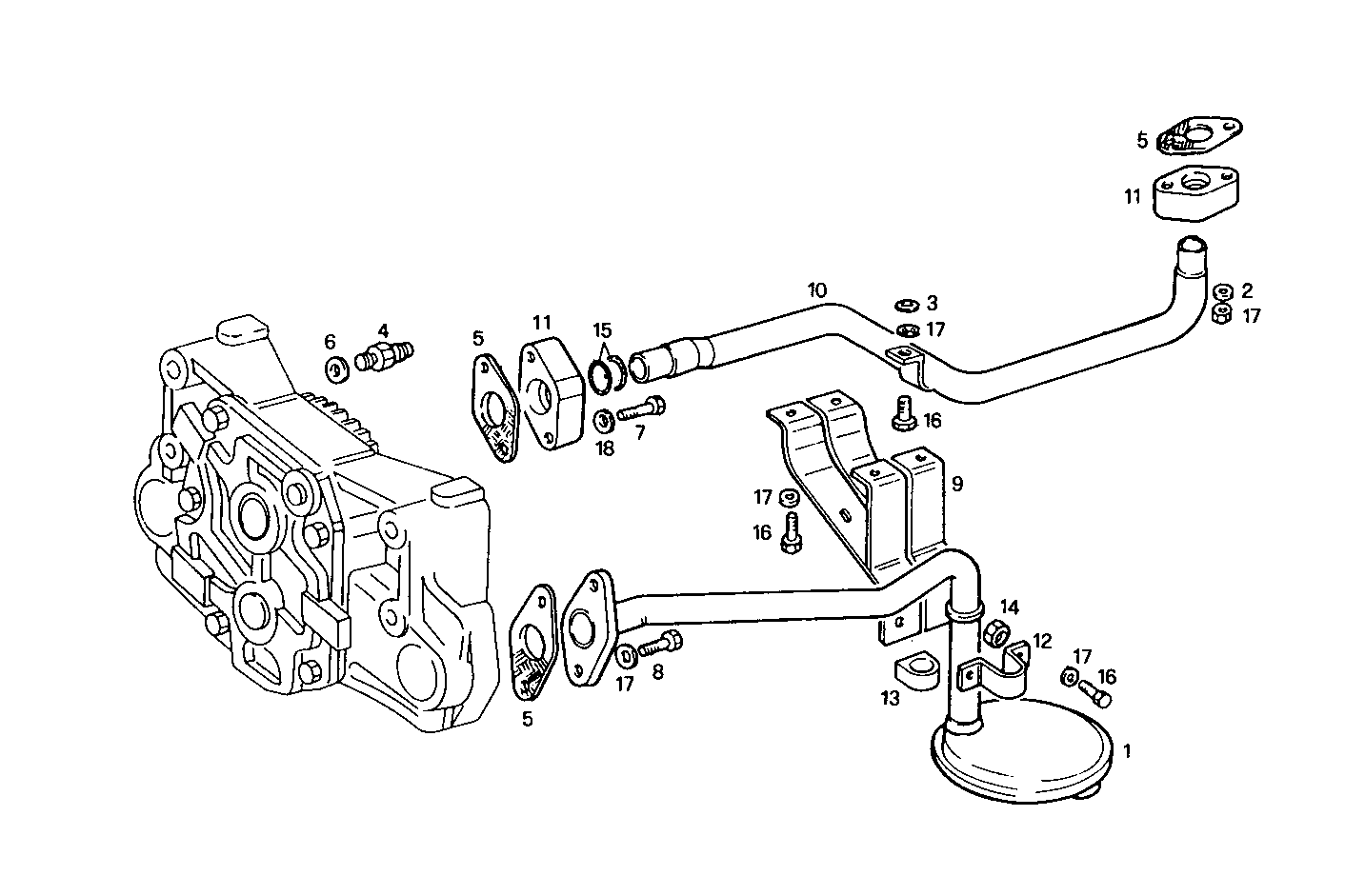

3010.006 LUBE OIL LINES
Item | Part number | Description |
---|---|---|
1 | 4779689 | SUCTION STRAINER |
2 | 17037931 | HEXAGON NUT M8X1,25 |
3 | 12646701 | WASHER Ø8X20 MM |
4 | 4785501 | SCREW CONNECTOR M10X1,25 |
5 | 4617482 | FLAT ENGINE GASKET |
6 | 561293 | O-RING |
7 | 16625734 | HEXAGON BOLT M8X35 |
8 | 16043421 | HEXAGON BOLT M8X20 MM |
9 | 4739213 | RETAINER |
10 | 4773064 | OIL LINE |
11 | 4773265 | FLANGED SOCKET |
12 | 4719705 | RETAINER |
13 | 4719706 | RUBBER PAD |
14 | 14048211 | HEXAGON NUT M8 |
15 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
16 | 16043221 | HEXAGON BOLT M8X16 MM |
17 | 11193871 | WASHER Ø8X16X1,4 MM |
18 | 11198371 | SPRING WASHER Ø10X20 MM |
