8061M12.00

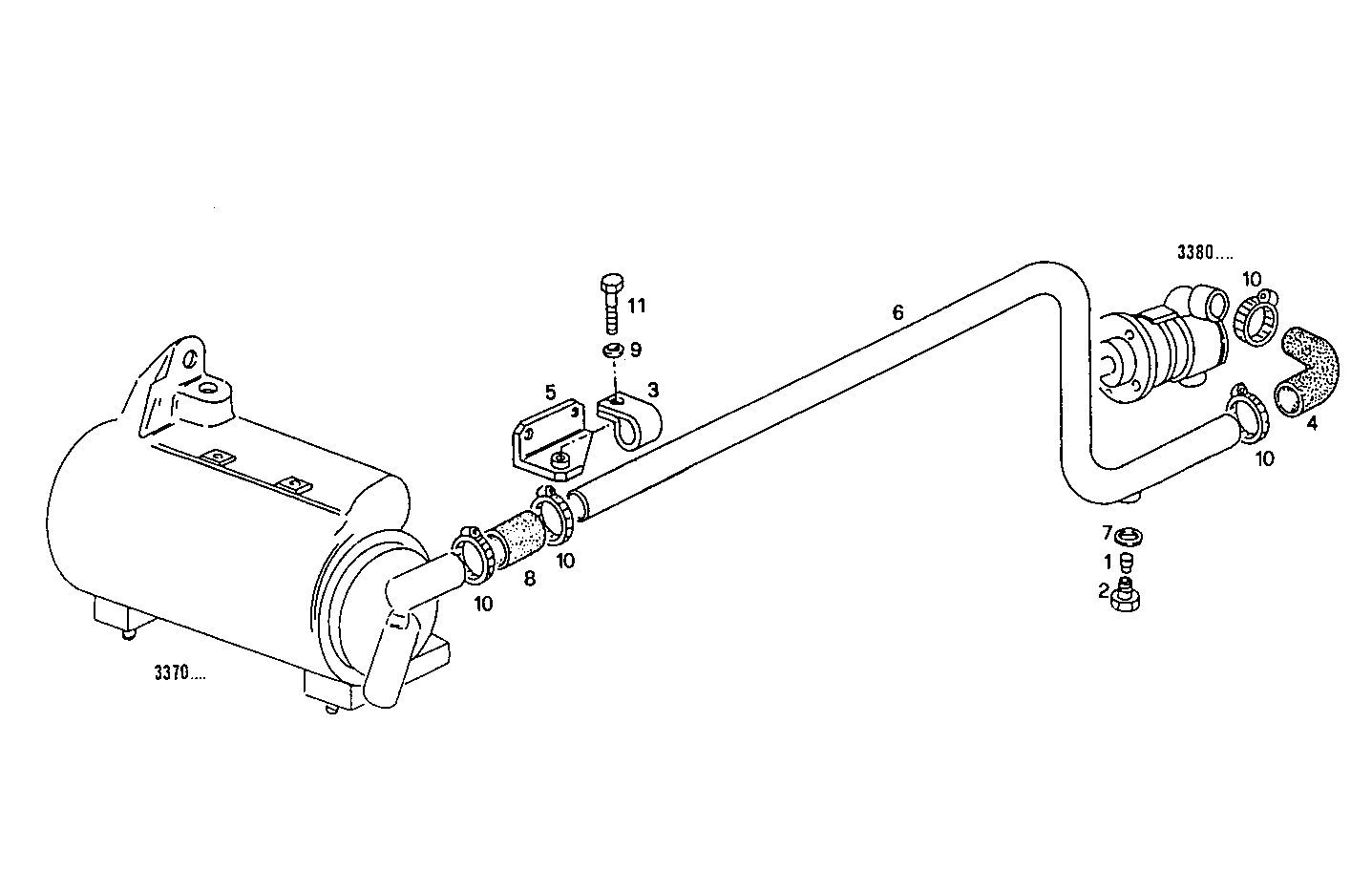

3390.056 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 2 | 4917793 | PLUG M18 |
| 3 | 4936741 | CLIP |
| 4 | 8100546 | RUBBER SLEEVE |
| 5 | 8108596 | RETAINER |
| 6 | 8107746 | WATER PIPE |
| 7 | 10263160 | SEAL GASKET Ø18X24 MM SP=1 MM |
| 8 | 10136187 | RUBBER SLEEVE |
| 9 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 10 | 12177090 | CLIP Ø32-52 MM |
| 11 | 16043321 | HEXAGON BOLT M8X18 MM |
