8061M12.00

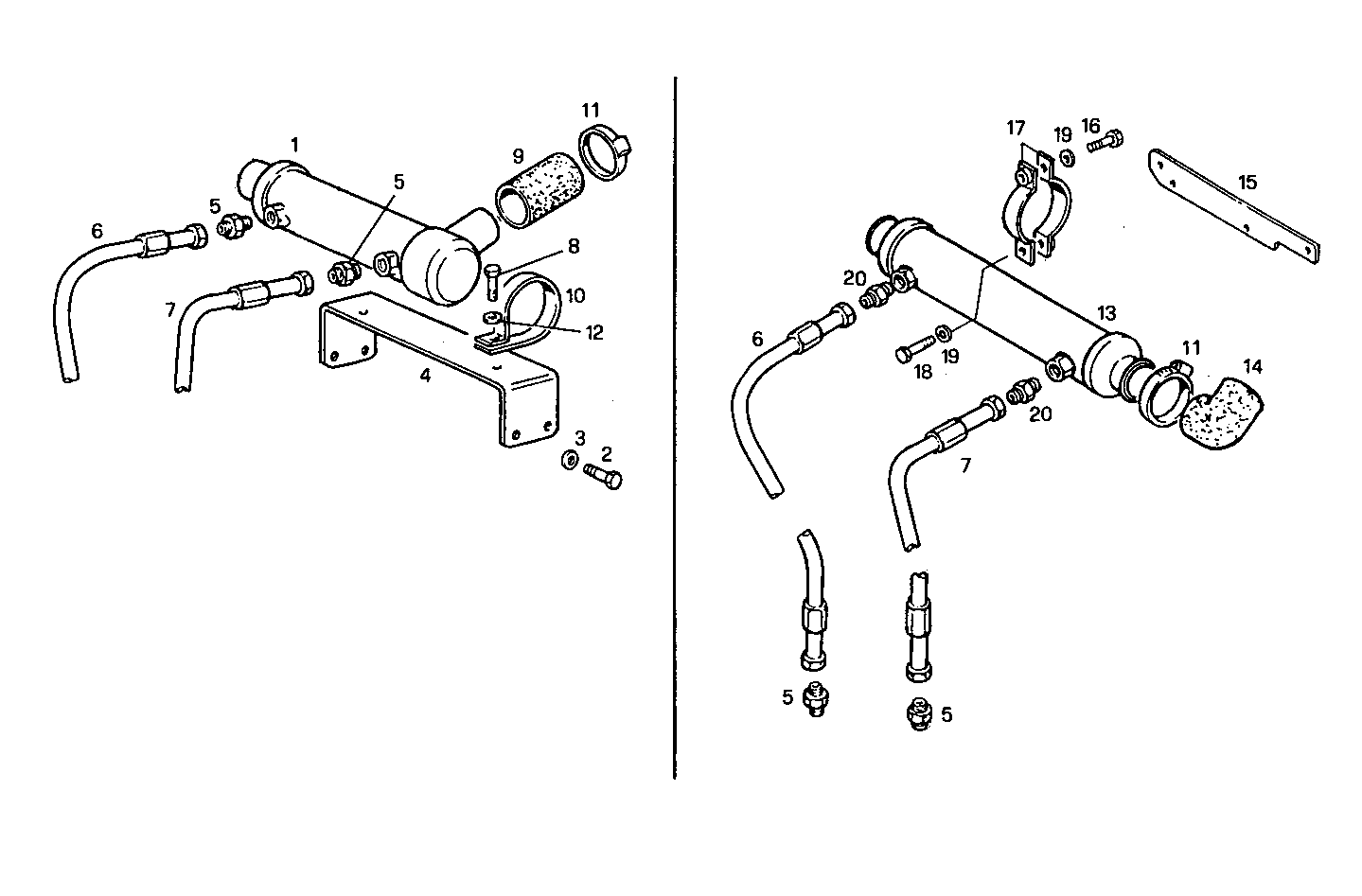

A51140028/02 MARINE GEAR TWIN DISC MG 506-1 - ratio 2.50:1

Iveco/FPT MARINE GEAR TWIN DISC MG 506-1

Item Part number Description
1 4927783 MARINE GEAR OIL HEAT EXCH ASSY [up to 04-95]
2 4927934 SCREW
3 11198679 SPRING WASHER Ø13 MM
4 8100258 RETAINER
5 4935465 PIPE SOCKET
6 4935780 OIL HOSE
7 8100723 HOSE
8 15970421 HEXAGON BOLT M10X18 MM
9 8102099 RUBBER SLEEVE
10 8100667 CLIP
11 17764793 CLIP Ø32/50 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 8016304 OIL/WATER HEAT EXCHANGER ASSY
15 8016558 RETAINER [from 07-93]
16 16605734 HEXAGON BOLT M8X30 MM
17 5116798 CLIP ASSY [from 06-93]
18 16605624 HEXAGON BOLT M8X25 MM (8.8)
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 8101073 PIPE SOCKET
