8061M12.00

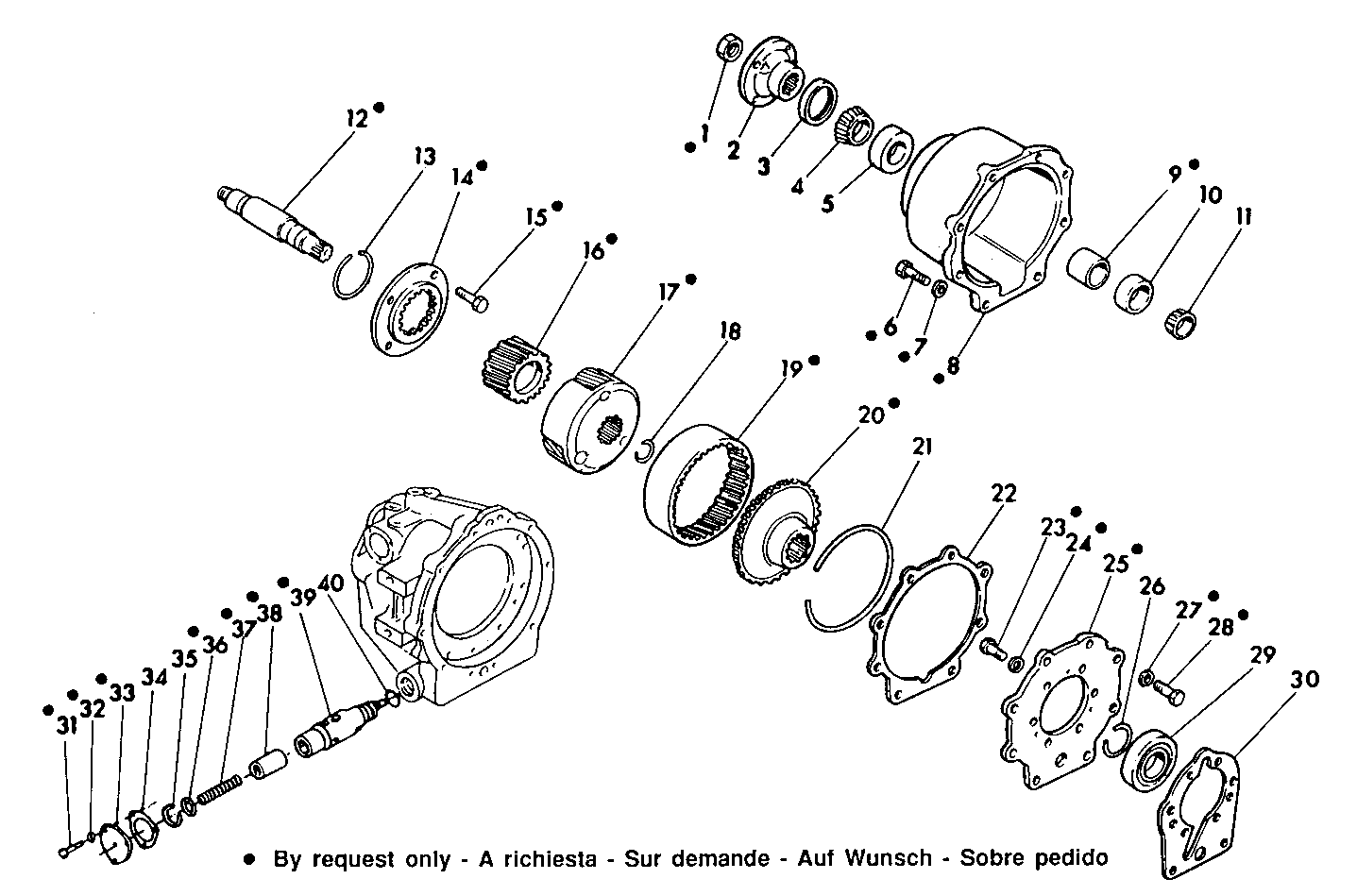

T5102002/01 MARINE GEAR - (components)
| Item | Part number | Description |
|---|---|---|
| 2 | 8090746 | FLANGE |
| 3 | 8090655 | WASHER |
| 4 | 8090656 | DRIVE BEARING |
| 5 | 8090428 | DRIVE BEARING |
| 10 | 8090657 | DRIVE BEARING |
| 11 | 8090658 | DRIVE BEARING |
| 13 | 8090672 | CIRCLIP |
| 18 | 8090670 | CIRCLIP |
| 21 | 8090659 | CIRCLIP 2,91:1 |
| 22 | 8090660 | GASKET |
| 26 | 8090675 | DRIVE BEARING |
| 29 | 8090673 | CIRCLIP |
| 30 | 8090662 | GASKET |
| 34 | 8090414 | GASKET |
| 35 | 8090429 | CIRCLIP |
| 40 | 8090430 | O-RING |
