8061M12.00

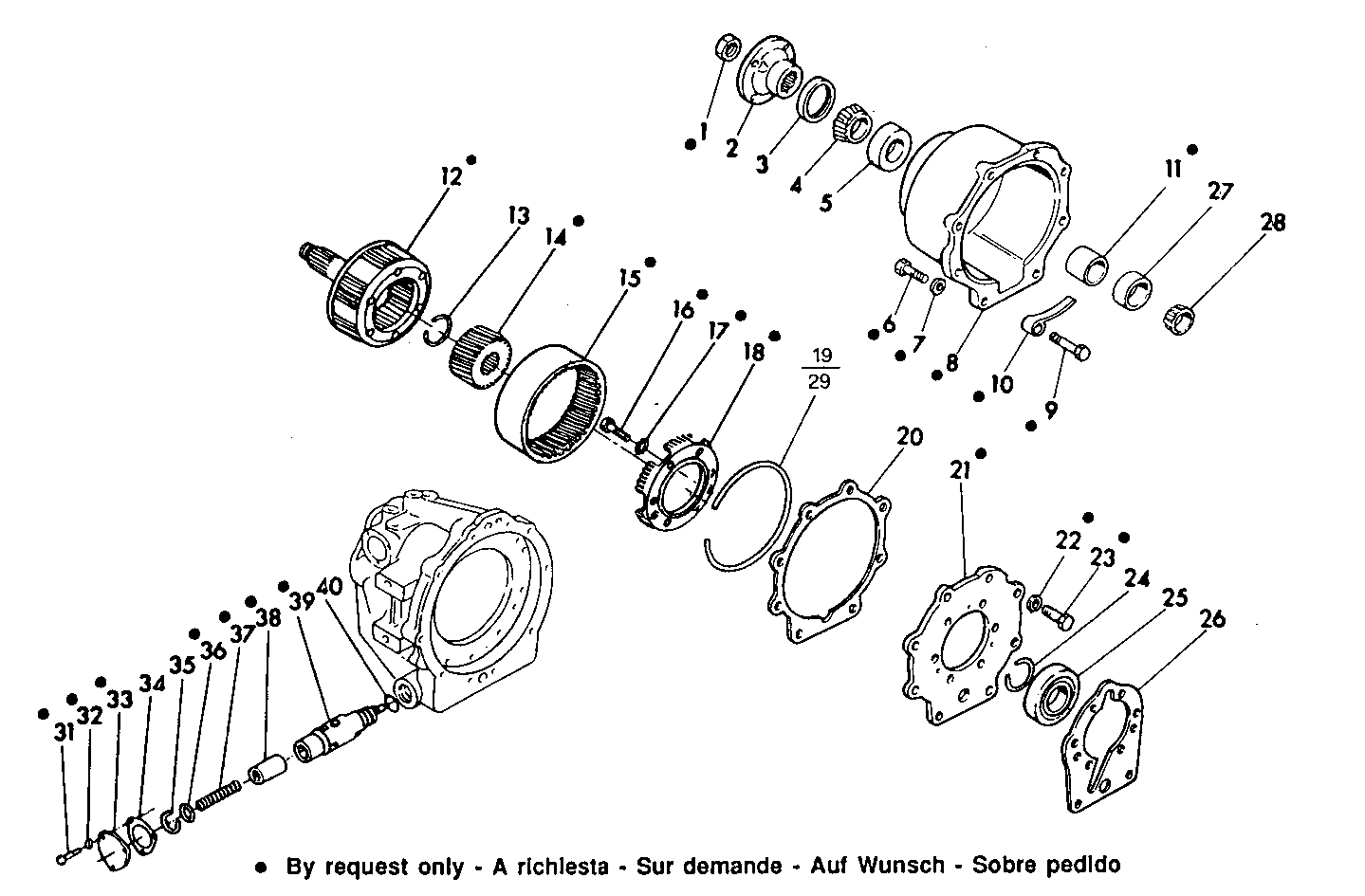

T5102005/01 MARINE GEAR - (components)

Iveco/FPT MARINE GEAR

Item Part number Description
2 8090746 FLANGE
3 8090655 WASHER
4 8090656 DRIVE BEARING
5 8090428 DRIVE BEARING
13 8090670 CIRCLIP
19 8090659 CIRCLIP 2,91:1
20 8090660 GASKET
24 8090676 CIRCLIP
25 8090677 DRIVE BEARING
26 8090662 GASKET
27 8090658 DRIVE BEARING
28 8090657 DRIVE BEARING
29 8090680 CIRCLIP 2,57:1
34 8090414 GASKET
35 8090429 CIRCLIP
40 8090430 O-RING
