8061M12.01

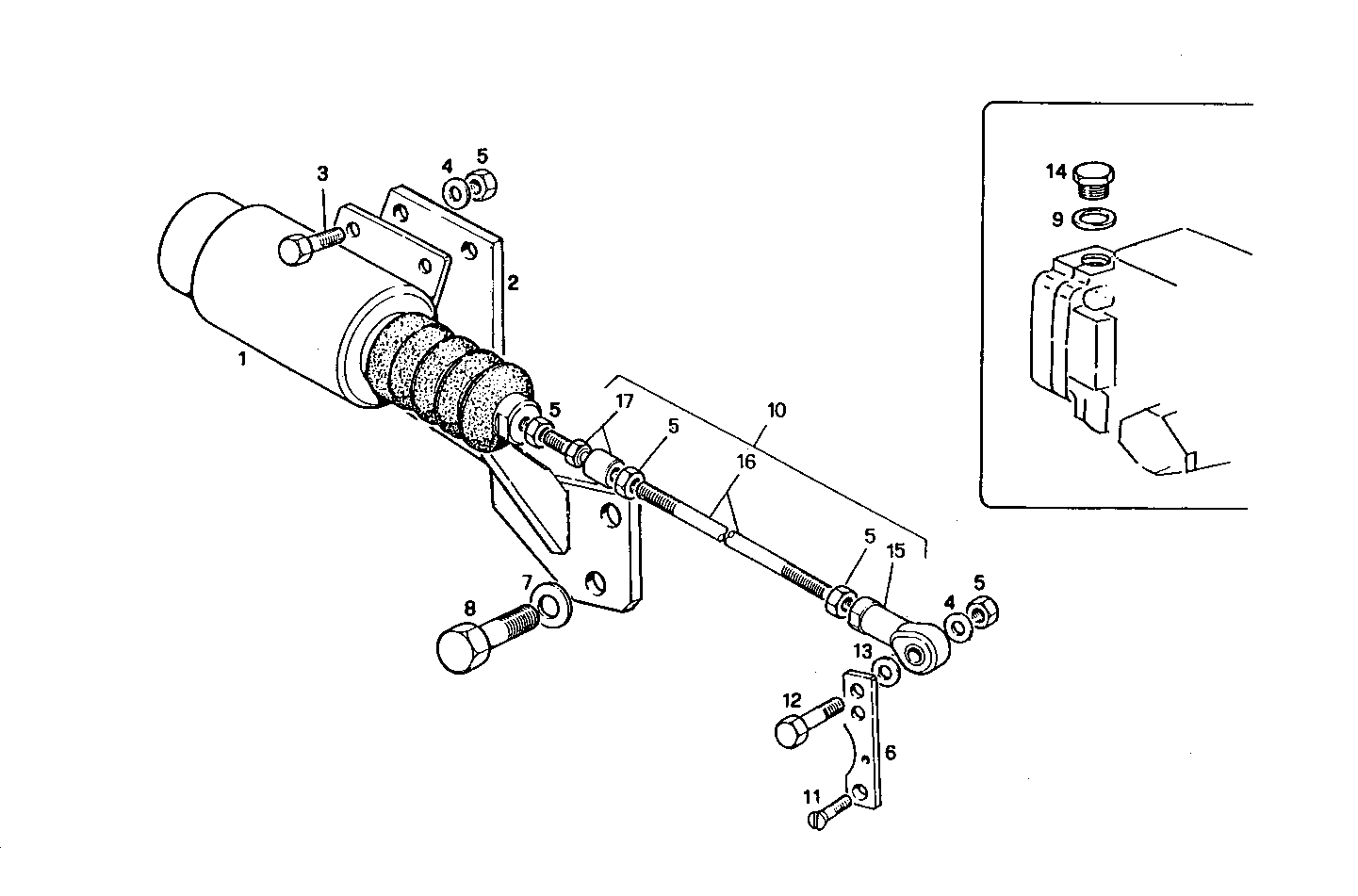

A38420010 STOP SOLENOID - ENERGIZE TO STOP - 24V

Iveco/FPT STOP SOLENOID - ENERGIZE TO STOP - 24V

Item Part number Description
1 8105421 SOLENOID ASSY 24V
2 8109366 SUPPORT
3 10902121 HEXAGON BOLT M6X14 MM
4 11197779 SPRING WASHER Ø6X12 MM
5 15896211 HEXAGON NUT M6
6 8108368 LEVER
7 17091070 WASHER Ø12X24X2,8 MM
8 16609824 HEXAGON BOLT M12X1,75X25 MM
9 10280050 SEAL GASKET Ø14,2 MM
10 8109367 TIE ROD ASSY
11 10351821 SCREW M4X10
12 10902621 SCREW M6X25 MM
13 14499301 WASHER Ø6X12X1,6 MM
14 10300611 LOCK PLUG M14X1,5
15 4934541 BRACE/STRUT
16 8100610 TIE ROD
17 8109368 TIE ROD
