8061M12.12

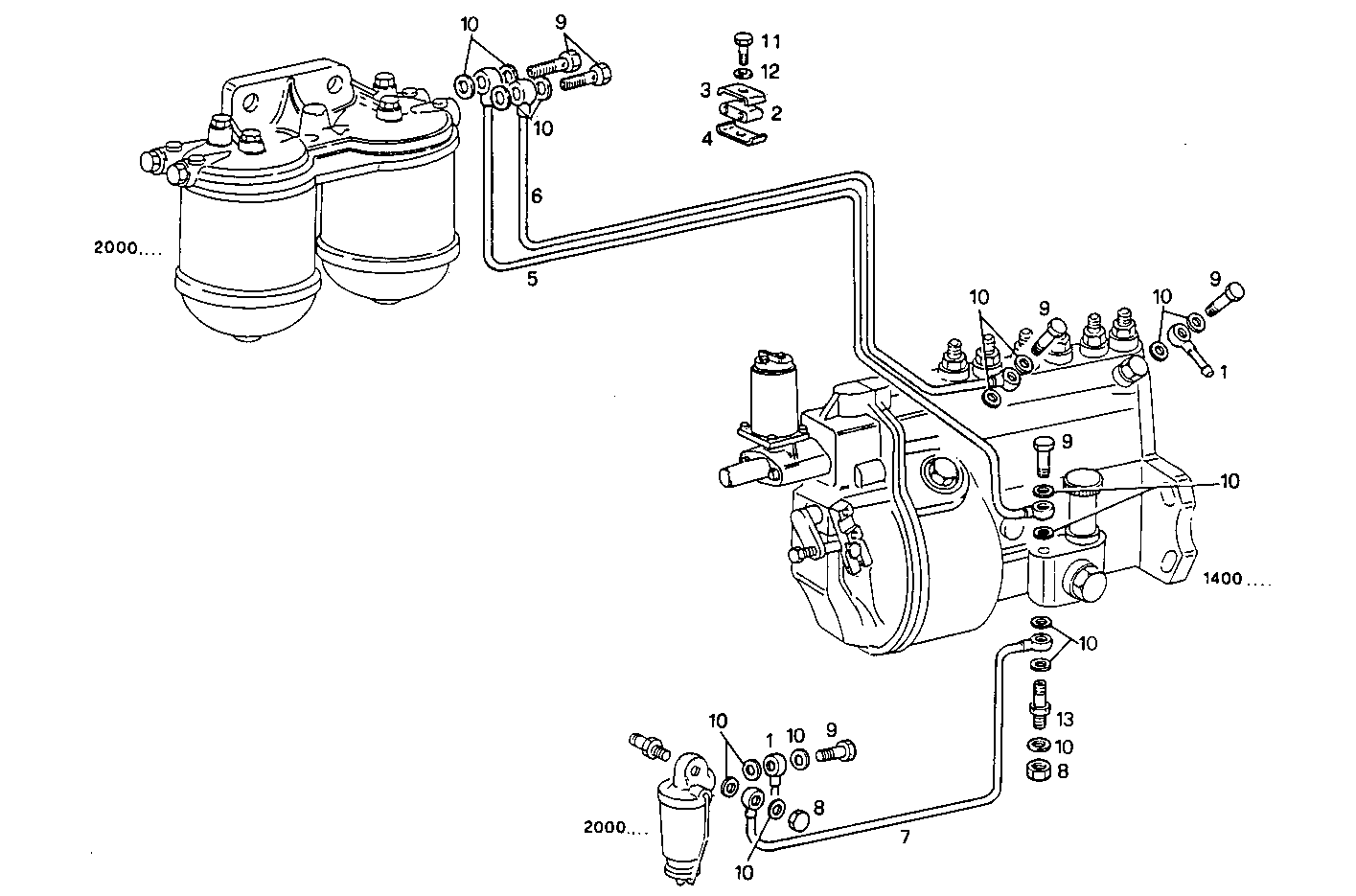

2030.052 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98413896 | PIPE SOCKET Ø8 MM |
| 2 | 4659617 | RUBBER PAD |
| 3 | 4659218 | CLIP |
| 4 | 4659219 | PLATE |
| 5 | 98420170 | FUEL LINE |
| 6 | 8008808 | FUEL LINE |
| 7 | 98413562 | FUEL LINE |
| 8 | 10182811 | PLUG |
| 9 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 10 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 11 | 10978221 | HEXAGON BOLT M5X25 MM |
| 12 | 11195470 | SPRING WASHER Ø5,3 MM |
| 13 | 10181217 | SWIVEL COUPLING |
