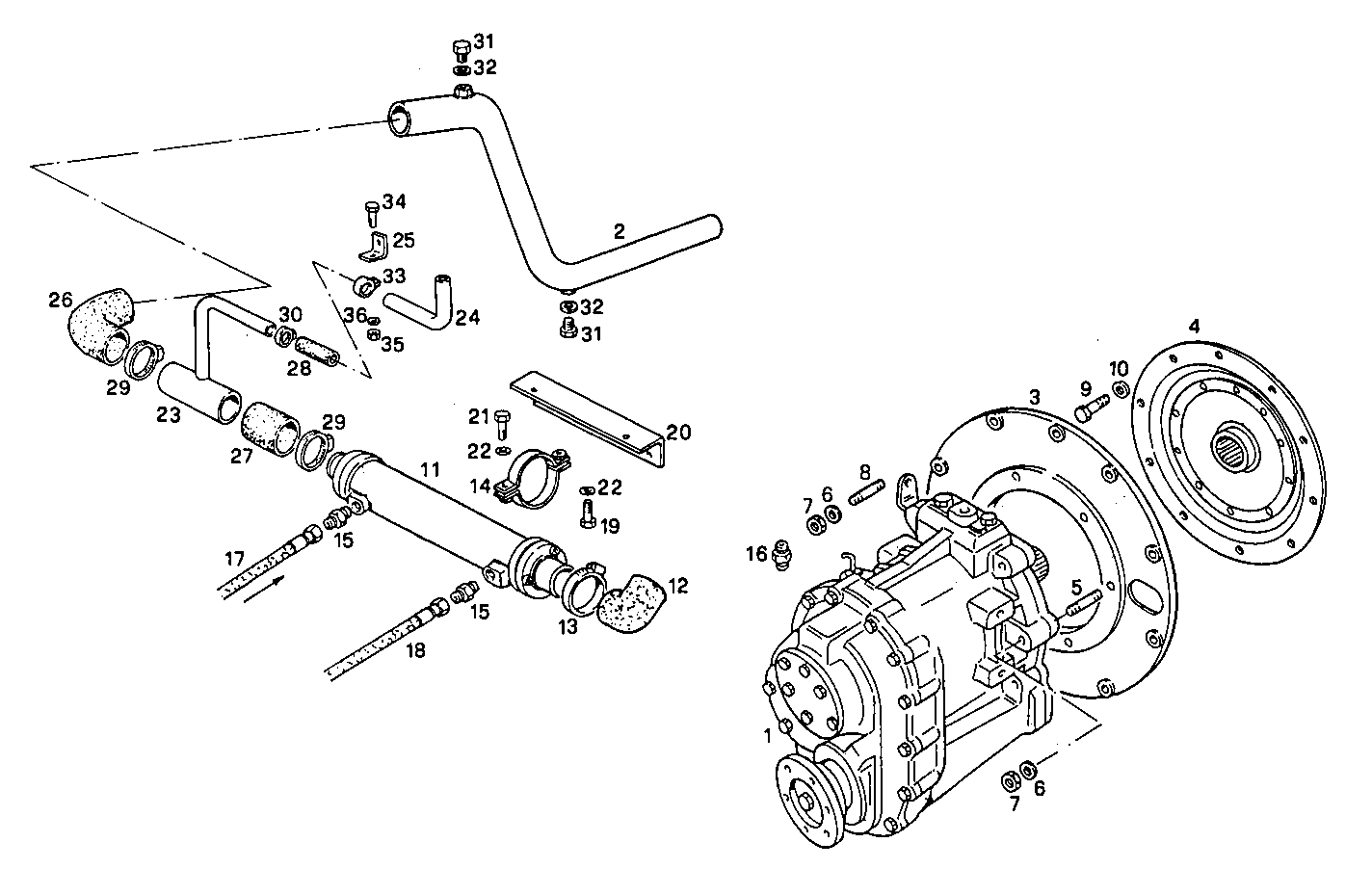

| Item |
Part number |
Description |
|
1 |
8015293 |
MARINE GEAR 3,118:1 |
|
2 |
8110250 |
WATER PIPE |
|
3 |
4934782 |
COUPLING BELL |
|
4 |
8019065 |
FLEXPLATE |
|
5 |
13547521 |
STUD |
|
6 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
7 |
12164711 |
HEXAGON NUT M10X1,25 |
|
8 |
13449721 |
STUD M10X15X30 |
|
9 |
11306921 |
SCREW M10X1,25X30 |
|
10 |
17095004 |
WASHER Ø10X18X2 MM |
|
11 |
8016304 |
OIL/WATER HEAT EXCHANGER ASSY |
|
12 |
8102099 |
RUBBER SLEEVE |
|
13 |
17764793 |
CLIP Ø32/50 MM |
|
14 |
5116798 |
CLIP ASSY [from 06-93] |
|
15 |
4935465 |
PIPE SOCKET |
|
16 |
8101073 |
PIPE SOCKET |
|
17 |
8100724 |
HOSE |
|
18 |
4935780 |
OIL HOSE |
|
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
20 |
4936740 |
SUPPORT |
|
21 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
23 |
8107188 |
WATER PIPE |
|
24 |
8107189 |
WATER PIPE |
|
25 |
8109067 |
RETAINER |
|
26 |
10136187 |
RUBBER SLEEVE |
|
27 |
17742687 |
RUBBER SLEEVE |
|
28 |
12076887 |
RUBBER SLEEVE |
|
29 |
12177090 |
CLIP Ø32-52 MM |
|
30 |
17764592 |
CLIP Ø20/32 MM |
|
31 |
11903040 |
LOCK PLUG M10X1 |
|
32 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
33 |
4936277 |
CLIP [up to 03-97] |
|
34 |
16043124 |
SCREW M8X14 MM |
|
35 |
17037931 |
HEXAGON NUT M8X1,25 |
|
36 |
11194079 |
SPRING WASHER Ø8X16 MM SP=1,9 MM |
