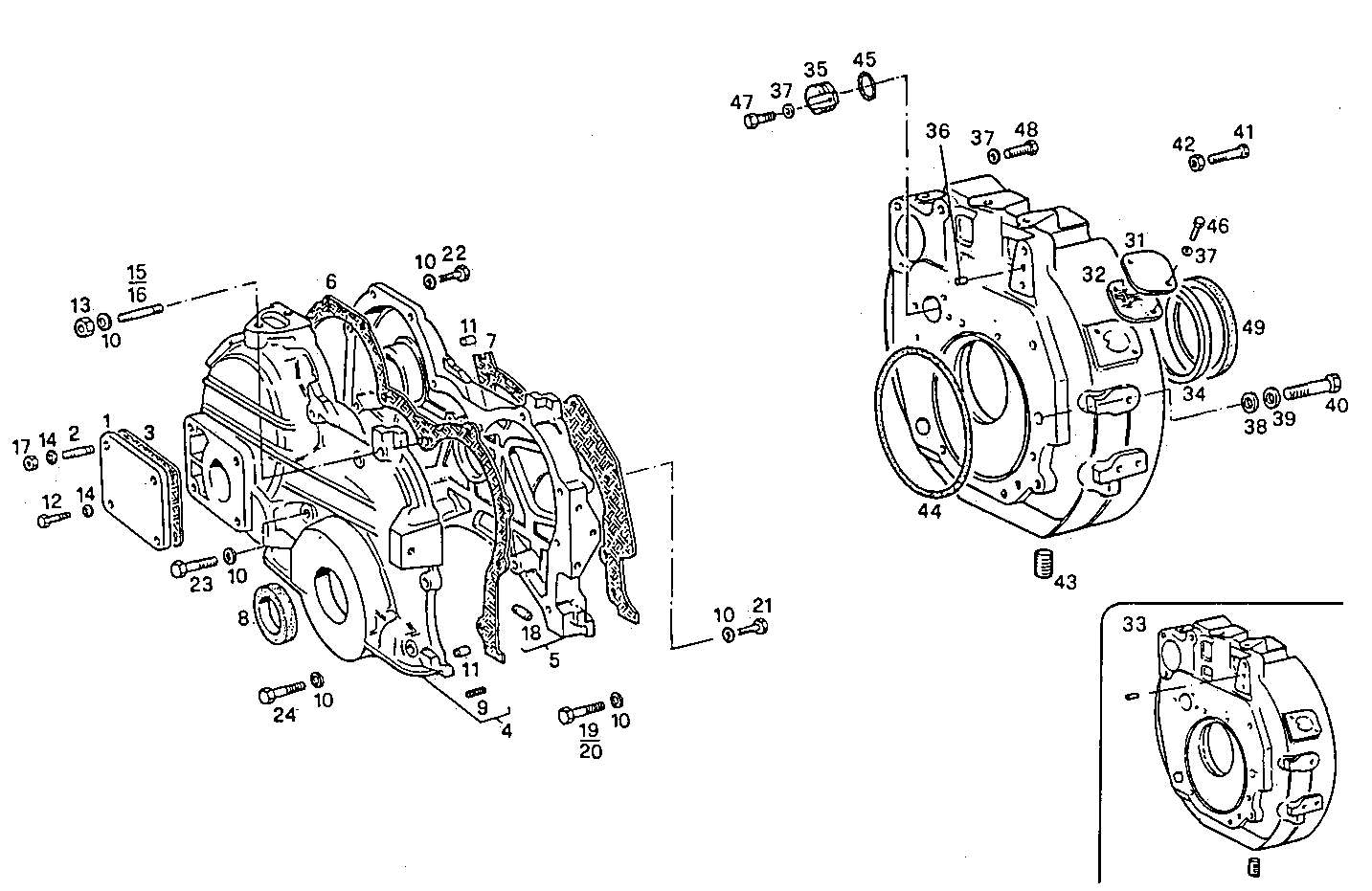

| Item |
Part number |
Description |
|
1 |
564530 |
COVER |
|
2 |
4615276 |
STUD M8X20 |
|
3 |
4850986 |
FLAT ENGINE GASKET |
|
4 |
4769187 |
FRONT C.CASE COVER ASSY |
|
5 |
4766126 |
FRONT C.CASE COVER ASSY |
|
6 |
98424045 |
FLAT ENGINE GASKET |
|
7 |
98424046 |
FLAT ENGINE GASKET |
|
8 |
98488393 |
SHAFT SEAL CORCOS |
|
9 |
13526170 |
THREADED INSERT M10X1,25X20 MM |
|
10 |
17094914 |
WASHER 8x16 |
|
11 |
10839610 |
DOWEL PIN Ø8 MM |
|
12 |
10902421 |
HEXAGON BOLT M6X20 MM |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
17088474 |
WASHER Ø6X12 MM |
|
15 |
13543621 |
STUD M8X16X30 MM |
|
16 |
13543620 |
STUD M8X16X30 |
|
17 |
17037821 |
HEXAGON NUT M6X1 |
|
18 |
4605220 |
OIL NOZZLE |
|
19 |
16043521 |
SCREW M8X22 |
|
20 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
21 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
22 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
23 |
16044921 |
HEXAGON BOLT M8X1,25X85 MM |
|
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
31 |
98417985 |
COVER |
|
32 |
98417986 |
FLAT ENGINE GASKET |
|
33 |
8108389 |
FLYWHEEL HOUSING ASSY |
|
34 |
4787154 |
SPACING BAR |
|
35 |
4718740 |
PLUG |
|
36 |
17275510 |
DOWEL PIN Ø10 MM |
|
37 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
38 |
17090274 |
WASHER Ø10X20 MM |
|
39 |
11200171 |
SPRING WASHER Ø15 MM |
|
40 |
11306921 |
SCREW M10X1,25X30 |
|
41 |
16612324 |
HEXAGON BOLT M14X35 MM |
|
42 |
17038721 |
NUT M14X2 [from ...] |
|
43 |
14325611 |
PLUG |
|
44 |
14483081 |
O-RING Ø5,33X196,2 MM |
|
45 |
17289281 |
O-RING Ø34,5 MM SP=3,53 MM |
|
47 |
16605424 |
SCREW M8X16 MM (8.8) |
|
49 |
98461686 |
SHAFT SEAL GOETZE |
