8061M12.40

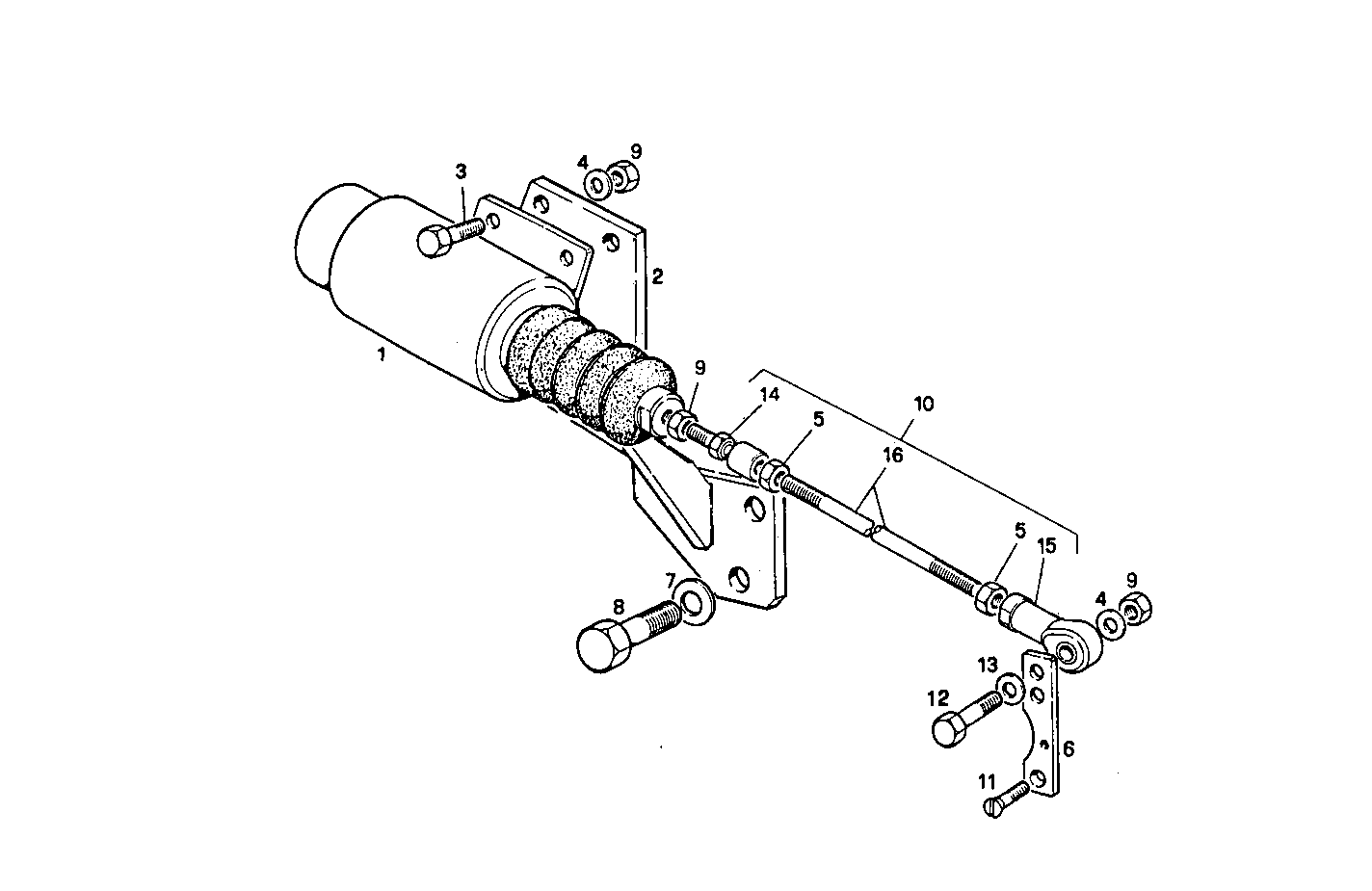

A38420026 STOP SOLENOID - ENERGIZE TO STOP - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8105421 | SOLENOID ASSY 24V |
| 2 | 8109366 | SUPPORT |
| 3 | 10902121 | HEXAGON BOLT M6X14 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 15896211 | HEXAGON NUT M6 |
| 6 | 8108368 | LEVER |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 8109367 | TIE ROD ASSY |
| 11 | 18019514 | SCREW M4X10 |
| 12 | 16603824 | SCREW M6X25 |
| 13 | 17094714 | WASHER Ø6,4X12 MM |
| 14 | 8109368 | TIE ROD |
| 15 | 4934541 | BRACE/STRUT |
| 16 | 8100610 | TIE ROD |
