8061M12.43

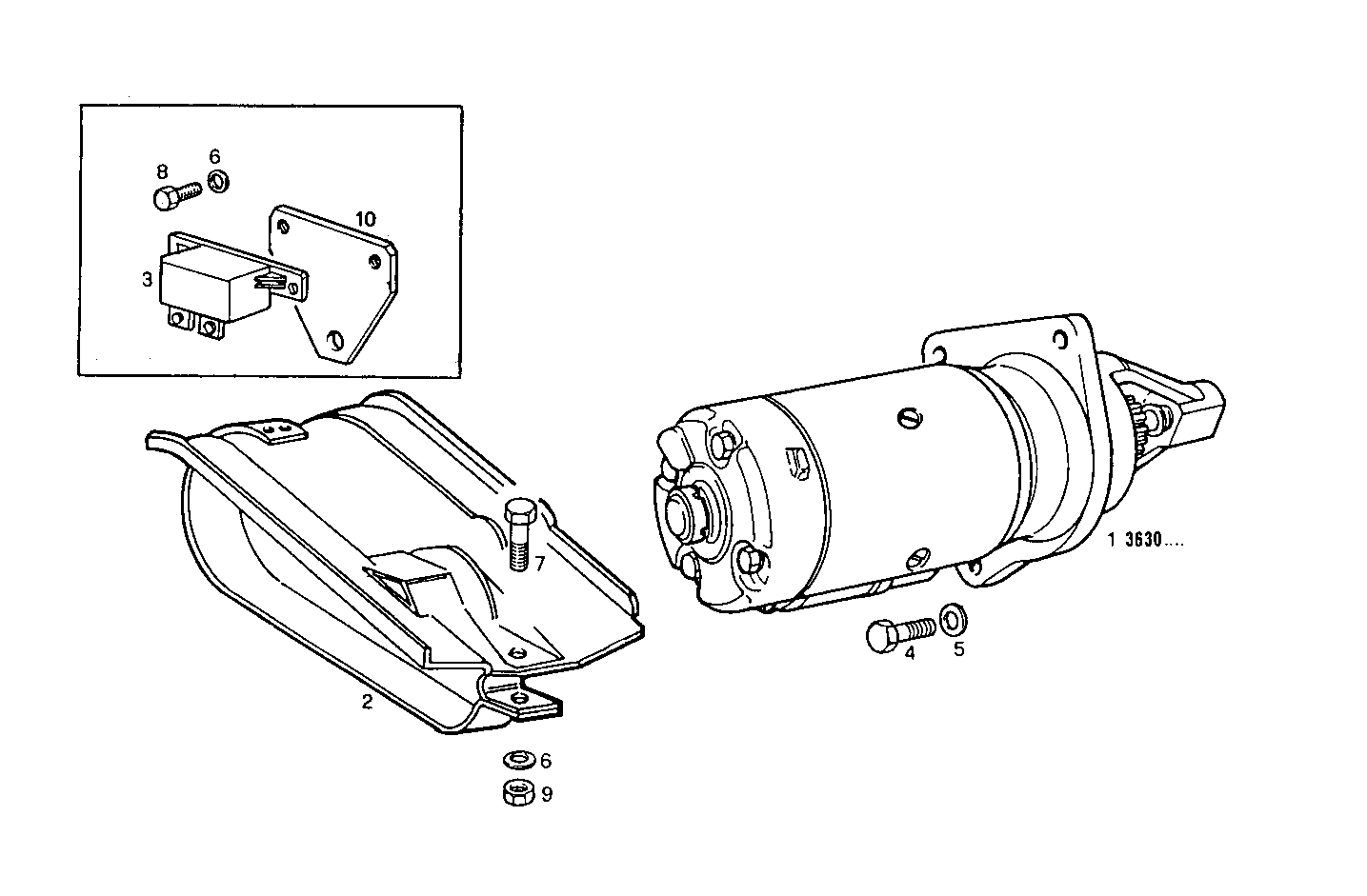

3600.050 STARTER MOTOR

Iveco/FPT STARTER MOTOR

Item Part number Description
1 4807378 STARTER MOTOR ASSY MARELLI
2 99479508 PROTECTION
3 8108575 RELAY STARTER [up to 12-90]
4 11306921 SCREW M10X1,25X30
5 17090174 SPRING WASHER Ø10X20 MM
6 17088474 WASHER Ø6X12 MM
7 16604124 HEXAGON BOLT M6X40 MM
8 16603524 SCREW M6X12 MM (8.8)
9 17037821 HEXAGON NUT M6X1
10 8109257 RETAINER
