8061M14.01

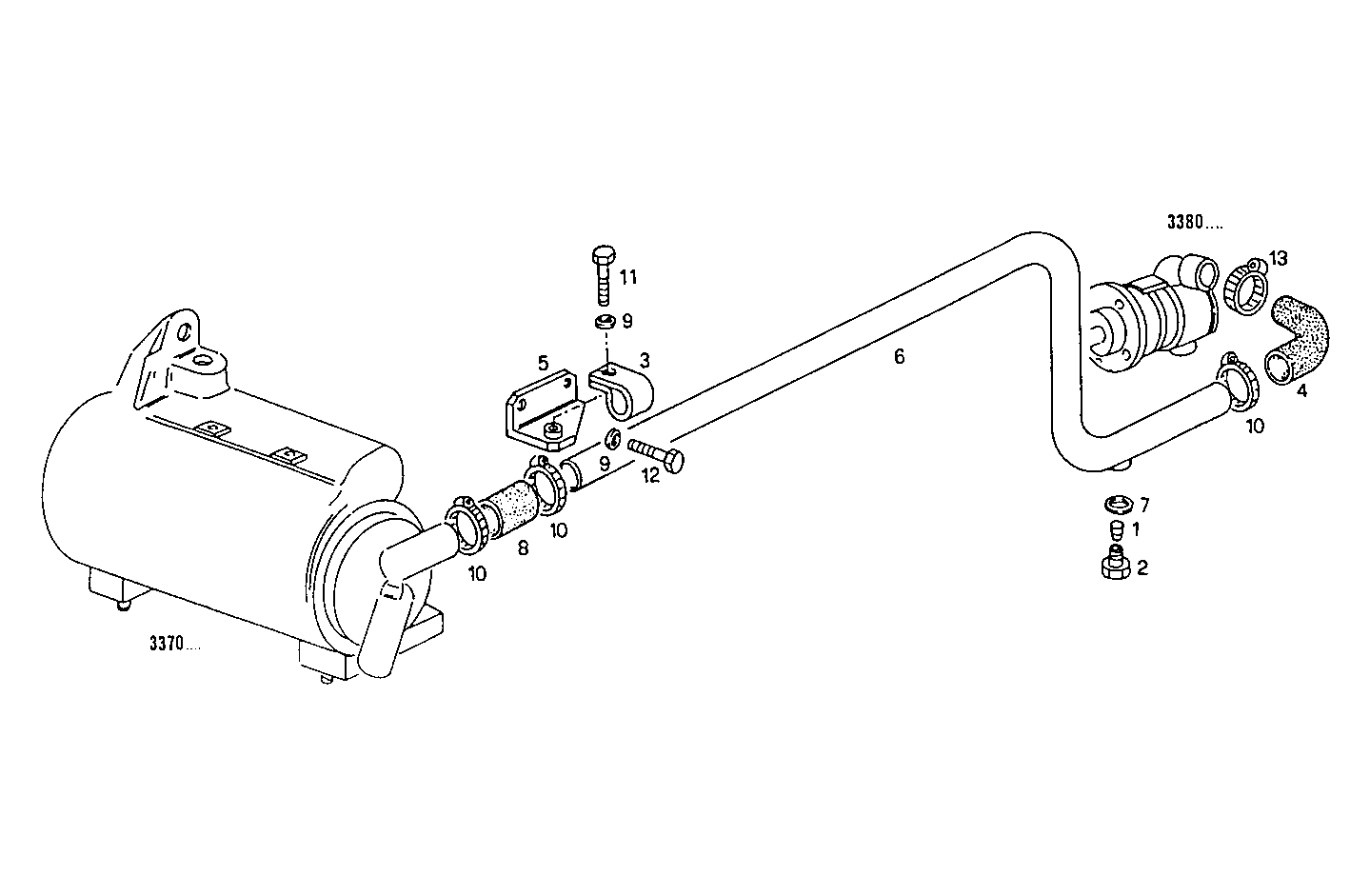

3390.006 SEA WATER LINES
Item | Part number | Description |
---|---|---|
1 | 8105277 | SACRIFICAL ANODE Ø14 MM |
2 | 4917793 | PLUG M18 |
3 | 4936741 | CLIP |
4 | 8100546 | RUBBER SLEEVE |
5 | 8108979 | RETAINER |
6 | 8012170 | WATER PIPE |
7 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
8 | 4927830 | RUBBER SLEEVE |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 17764793 | CLIP Ø32/50 MM |
11 | 16605924 | SCREW M8X40 MM |
12 | 16605521 | HEXAGON BOLT M8X20 MM |
13 | 17764693 | CLIP Ø25/40 MM |
