8061M14.01

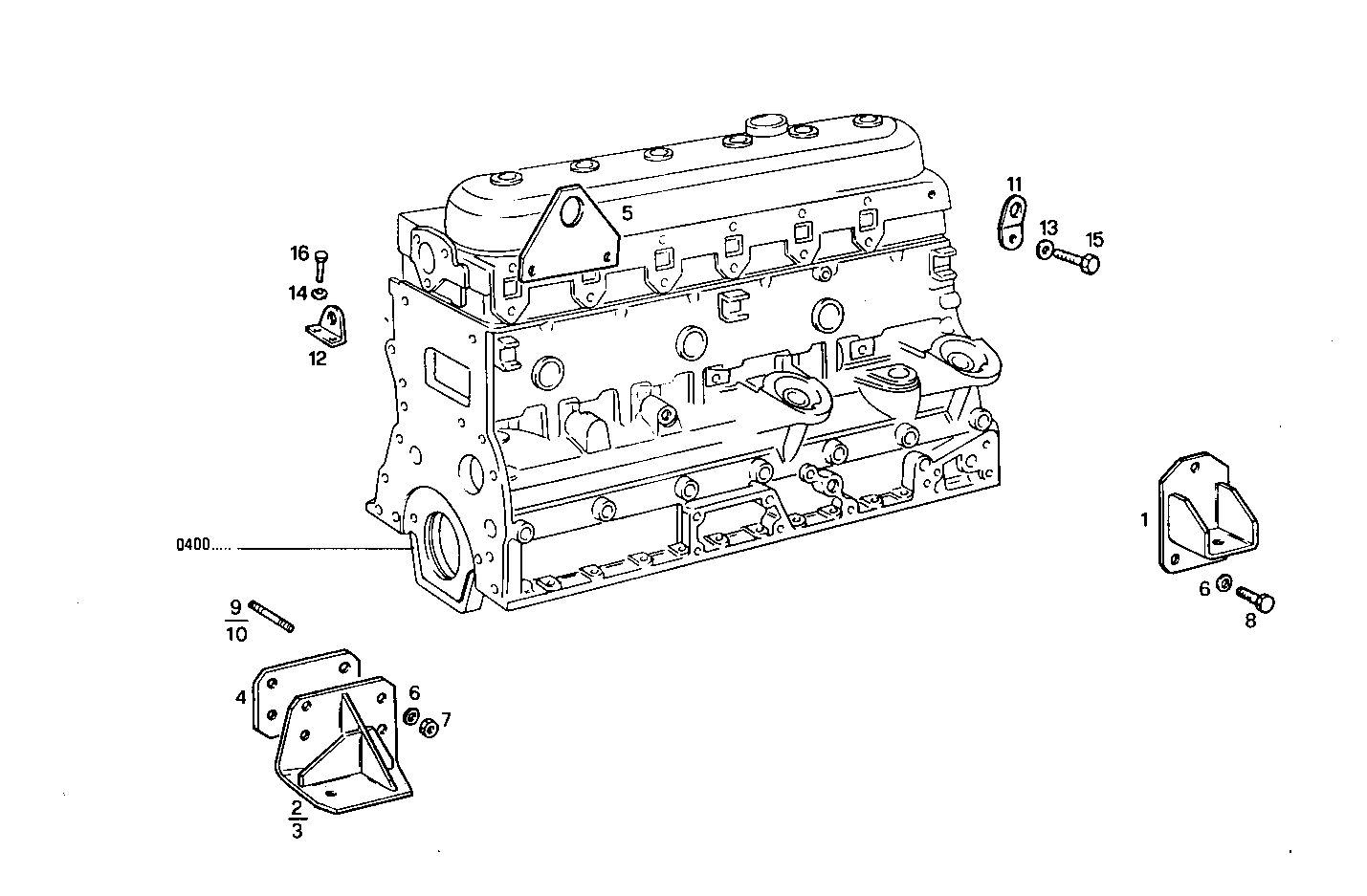

4500.021 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 8107925 SUPPORT REAR
2 8105550 ENGINE SUSPENSION LEFT
3 8105558 ENGINE SUSPENSION FRONT - RIGHT
4 4927434 SPACING BAR RIGHT
5 4930458 PLATE
6 17091074 WASHER Ø12X24X2,8 MM
7 17038421 HEXAGON NUT M12 (8)
8 15004021 HEXAGON BOLT M10X1,25X25 MM
9 16733224 STUD M12X1,75X30
10 16733424 STUD M12X1,75X40
11 98439780 HOOK REAR LEFT
12 4604104 SHACKLE FRONT
13 11190579 SPRING WASHER Ø10X20 MM SP=2,3
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 15970521 HEXAGON BOLT M10X20 MM
16 16605424 SCREW M8X16 MM (8.8)
