8061M14.01

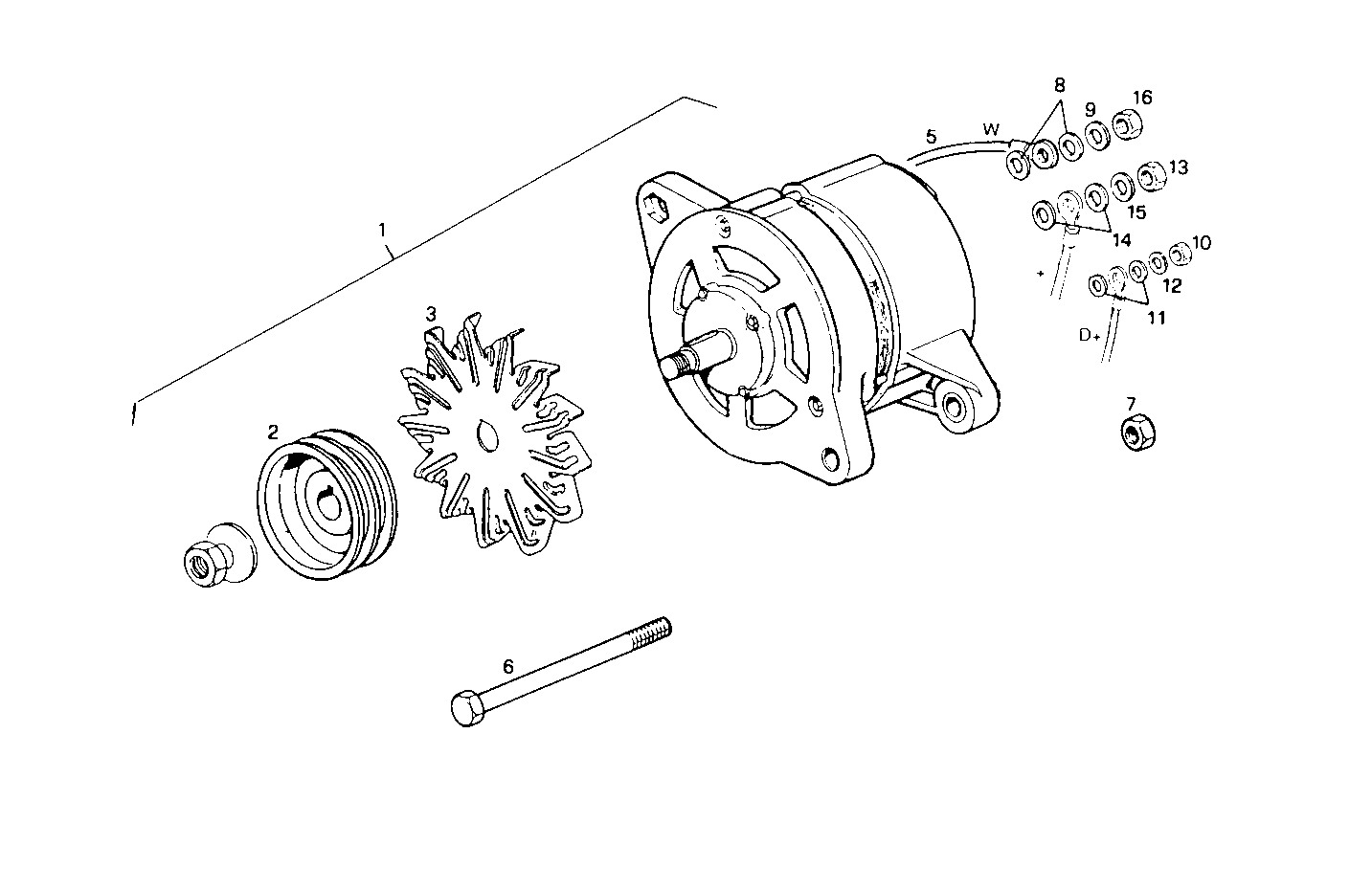

A14120028 SELF-REGULATED ALTERNATOR - 24V 55A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 8019541 | ALTERNATOR ASSY |
| 2 | 4808607 | PULLEY |
| 3 | 4757196 | GENERATOR FAN BOSCH |
| 5 | 8019531 | WIRE/CABLE W |
| 6 | 11306921 | SCREW M10X1,25X30 |
| 7 | 12164711 | HEXAGON NUT M10X1,25 |
| 8 | 17094504 | WASHER Ø5,3X10 MM |
| 9 | 10615379 | TOOTHED WASHER Ø5,3 MM |
| 10 | 17037621 | HEXAGON NUT M4 |
| 11 | 17094204 | WASHER Ø4X8X0,8 MM |
| 12 | 10615279 | WASHER Ø4 MM |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 17094914 | WASHER 8x16 |
| 15 | 17494834 | WASHER Ø8 MM |
| 16 | 17037721 | NUT M5X0,8 |
