8061M14.01

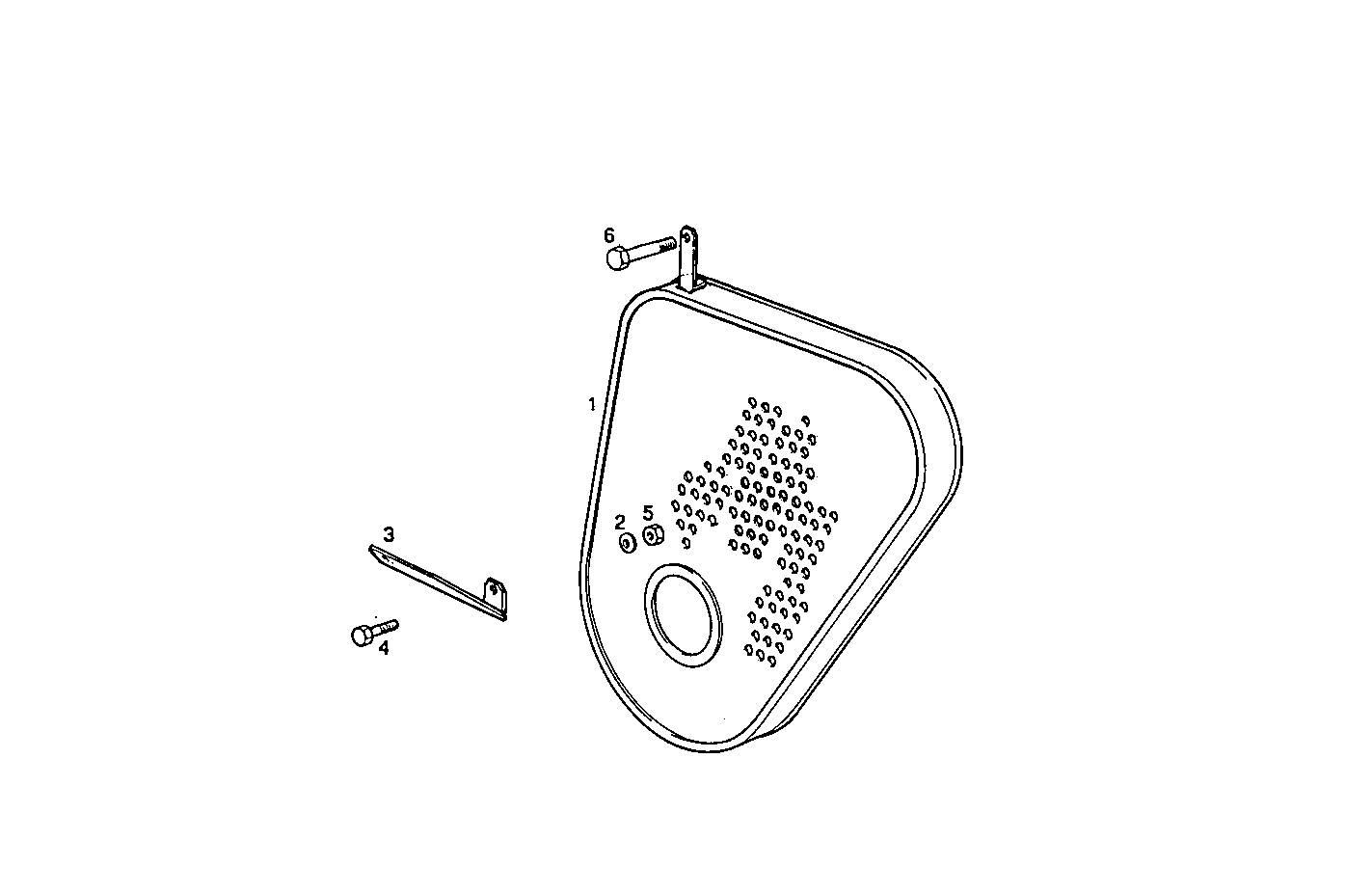

A48020030 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8021546 | PROTECTION |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 8109407 | RETAINER |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 16606224 | HEXAGON BOLT M8X55 MM |
