8061M14.01

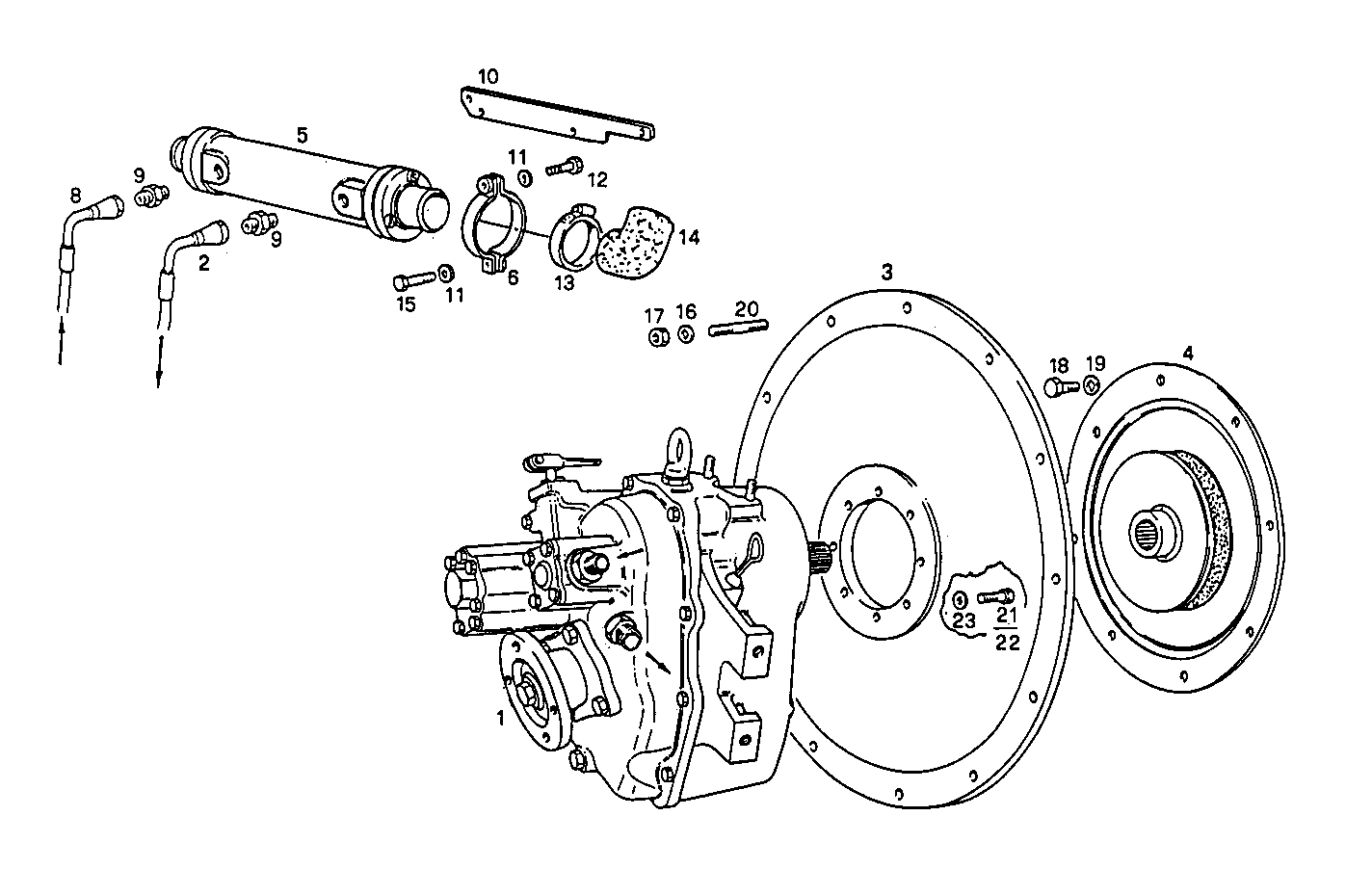

A51100003/01 MARINE GEAR TECHNODRIVE TM 545 A - ratio 2.40:1

Iveco/FPT MARINE GEAR TECHNODRIVE TM 545 A

Item Part number Description
1 8021732 MARINE GEAR 2,40:1
2 8105620 HOSE
3 8019193 FLANGE
4 8019065 FLEXPLATE
5 8016304 OIL/WATER HEAT EXCHANGER ASSY
6 5116798 CLIP ASSY [from 06-93]
8 4935779 HOSE
9 8101073 PIPE SOCKET
10 8016558 RETAINER [from 07-93]
11 17088474 WASHER Ø6X12 MM
12 16605734 HEXAGON BOLT M8X30 MM
13 17764793 CLIP Ø32/50 MM
14 8102099 RUBBER SLEEVE
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17090174 SPRING WASHER Ø10X20 MM
17 17038221 HEXAGON NUT M10
18 11306921 SCREW M10X1,25X30
19 17095004 WASHER Ø10X18X2 MM
20 13449521 STUD M10X15X25
21 16609924 HEXAGON BOLT M12X30 MM (8.8)
22 16610024 SCREW M12X35
23 17091074 WASHER Ø12X24X2,8 MM
