8061M14.01

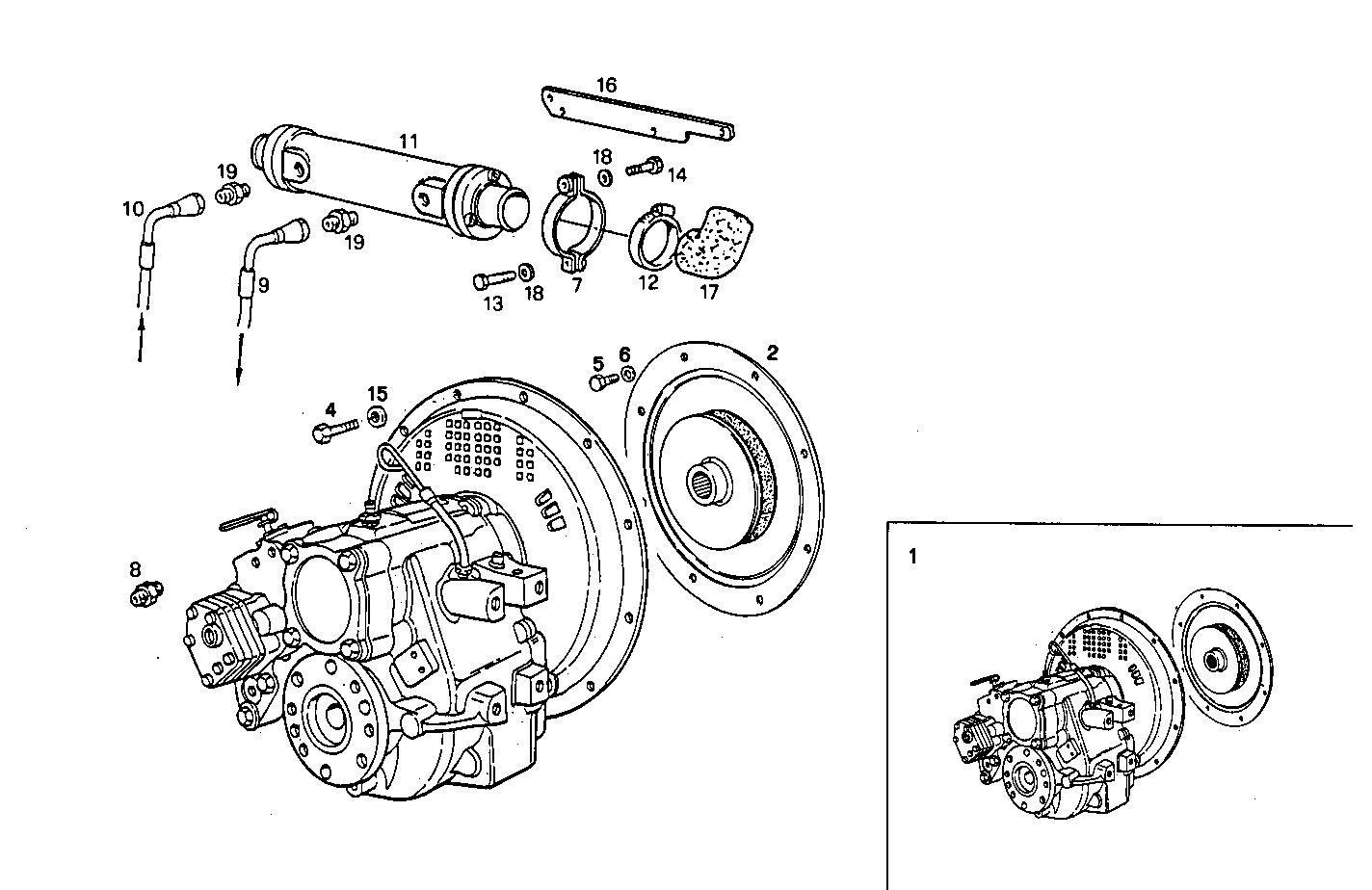

A51920015/01 MARINE GEAR TWIN DISC MG 5050 - ratio 2.04:1

Iveco/FPT MARINE GEAR TWIN DISC MG 5050

Item Part number Description
1 8012976 MARINE GEAR 2,04:1
2 8014086 FLEXIBLE COUPLING
4 11306921 SCREW M10X1,25X30
5 15004021 HEXAGON BOLT M10X1,25X25 MM
6 17494934 WASHER Ø10X18,1X2,2 MM
7 5116798 CLIP ASSY [from 06-93]
8 4935465 PIPE SOCKET
9 4935779 HOSE
10 4936603 OIL HOSE
11 8016304 OIL/WATER HEAT EXCHANGER ASSY
12 17764793 CLIP Ø32/50 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 16605734 HEXAGON BOLT M8X30 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 8016556 CLIP ASSY
17 8102099 RUBBER SLEEVE
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 8101073 PIPE SOCKET
