8061M14.02

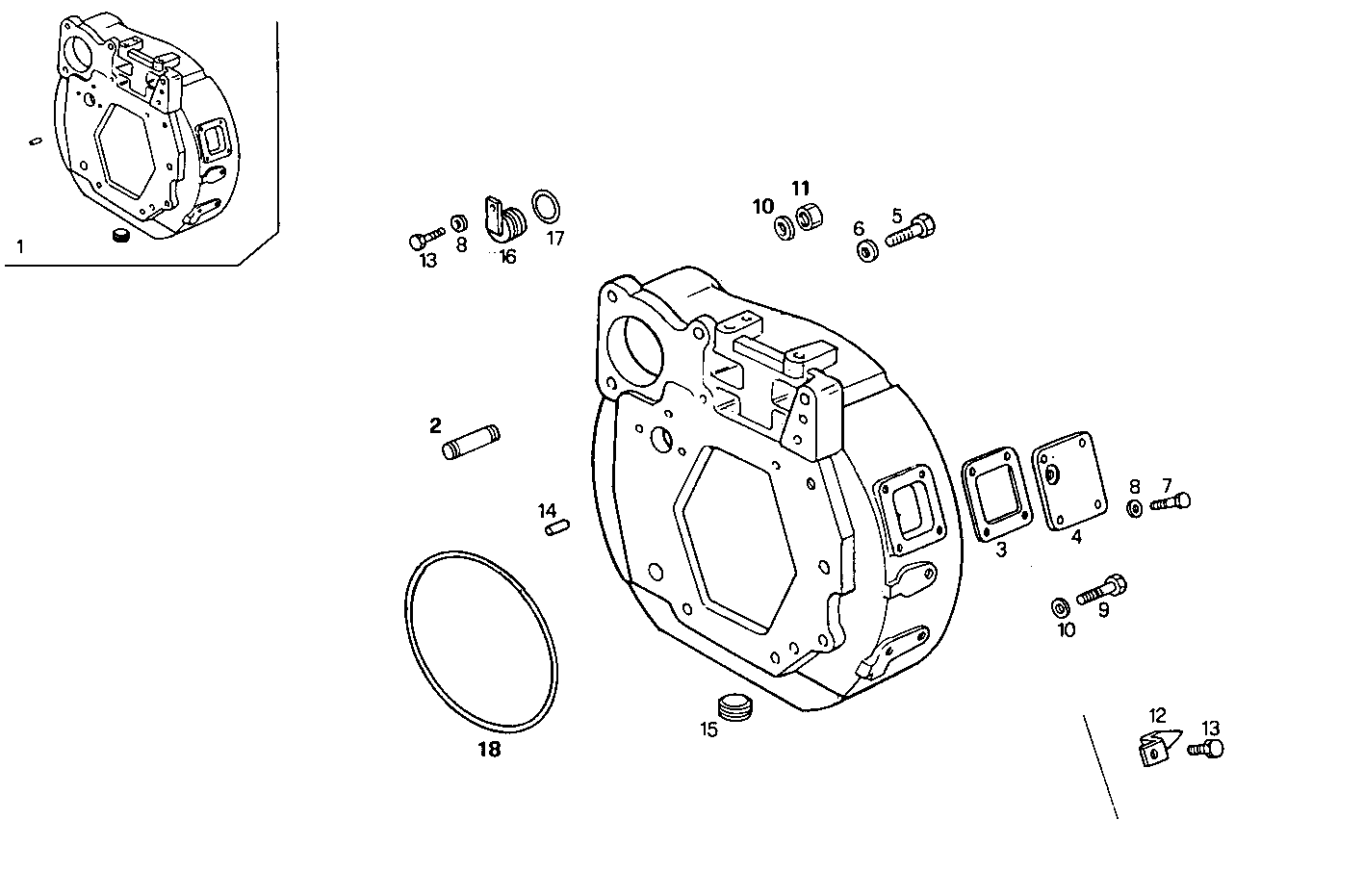

0430.113/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4806862 FLYWHEEL HOUSING ASSY
2 16735724 STUD M14X20X55 [from ...]
3 98417986 FLAT ENGINE GASKET
4 500330791 COVER
5 11306921 SCREW M10X1,25X30
6 17090274 WASHER Ø10X20 MM
7 16043521 SCREW M8X22
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16612324 HEXAGON BOLT M14X35 MM
10 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
11 17038721 NUT M14X2 [from ...]
12 4607466 CONNECTING PLATE
13 16605424 SCREW M8X16 MM (8.8)
14 17275510 DOWEL PIN Ø10 MM
15 16998011 PLUG M35X1,5
16 4718740 PLUG
17 17289281 O-RING Ø34,5 MM SP=3,53 MM
18 14483081 O-RING Ø5,33X196,2 MM
