8061M14.02

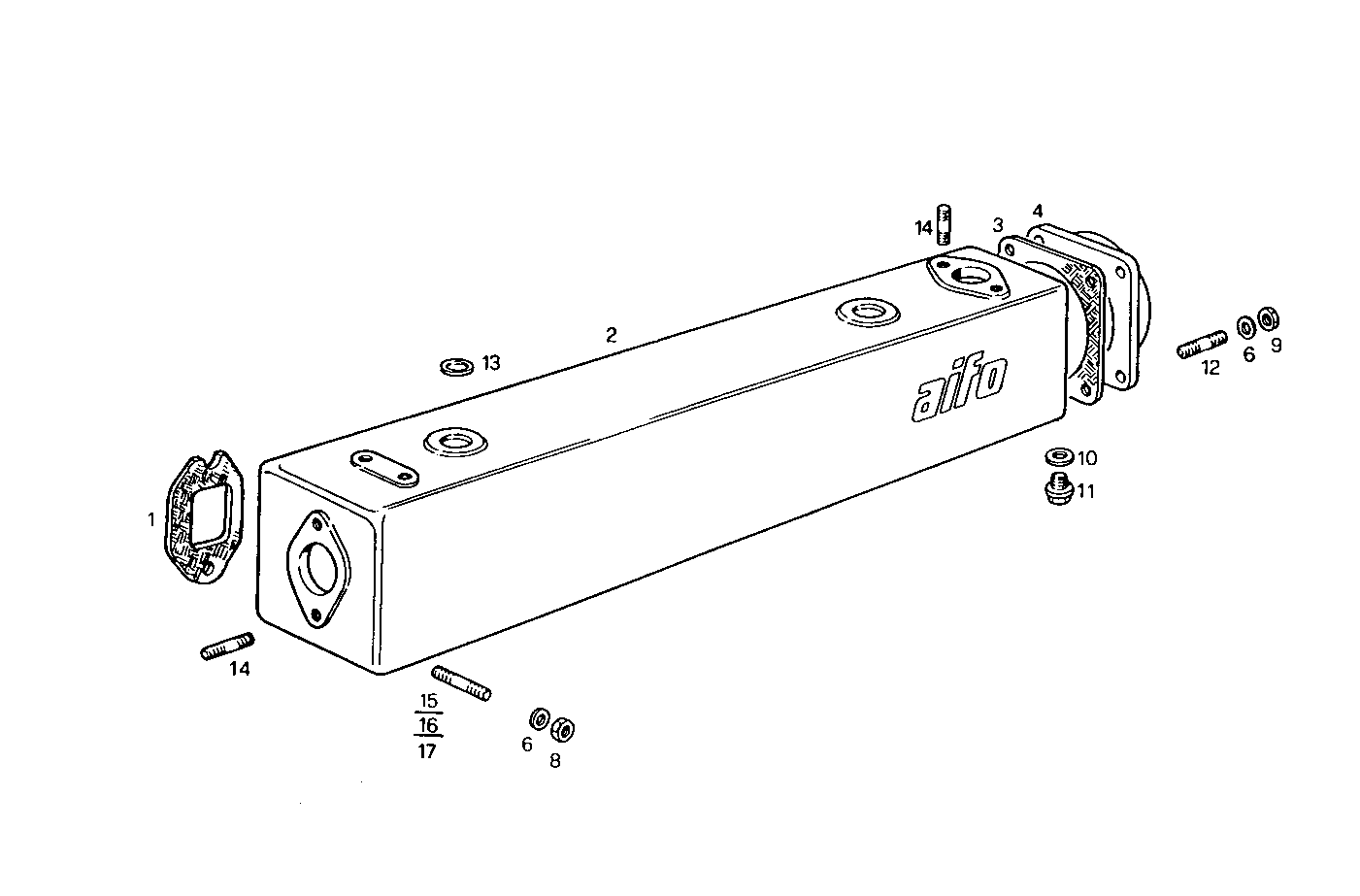

0760.094 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 98489690 EXH. MANIFOLD GKT
2 8107546 EXHAUST MANIFOLD
3 8009823 GASKET
4 4919245 FLANGE
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
9 17038221 HEXAGON NUT M10
10 4858606 GASKET Ø10X14X1 MM
11 11903140 PLUG M10X1,25
12 13453721 STUD M10X25X30
13 16991170 LOCK PLUG Ø36 MM
14 13516821 STUD M8X12X20 MM
15 16729534 STUD M8X30 MM
16 16730434 STUD M8X12X80
17 16729634 STUD M8X35
