8061M14.02

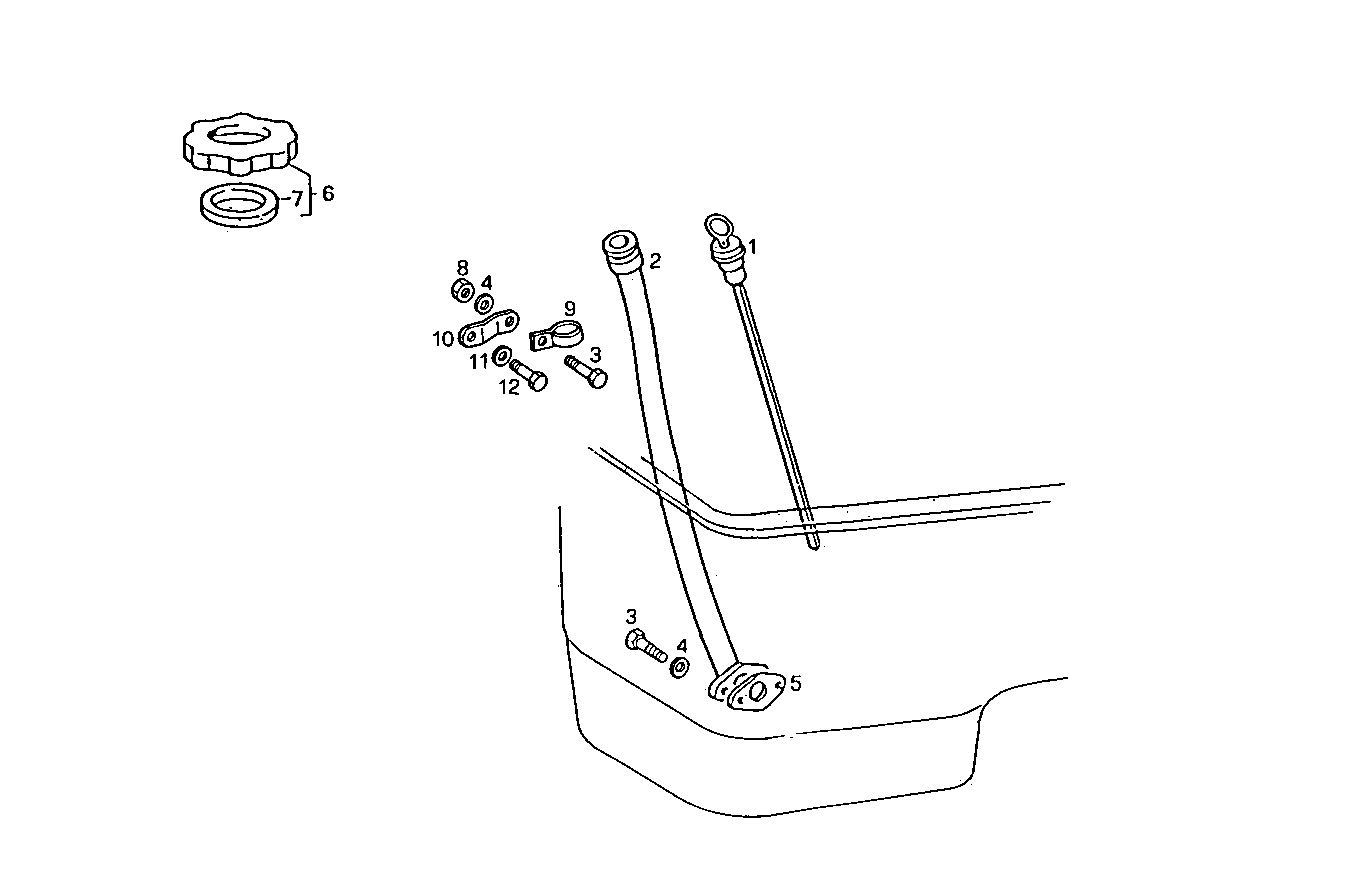

2710.058 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 8024258 | OIL DIPSTICK |
2 | 8024206 | ROD GUIDE |
3 | 16605524 | HEXAGON BOLT M8X20 MM |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 98401052 | FLAT ENGINE GASKET |
6 | 4232606 | OIL FILLER PLUG ASSY |
7 | 98418978 | GASKET |
8 | 17037931 | HEXAGON NUT M8X1,25 |
9 | 98437364 | CLIP |
10 | 8101336 | RETAINER |
11 | 17090174 | SPRING WASHER Ø10X20 MM |
12 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
