8061M14.02

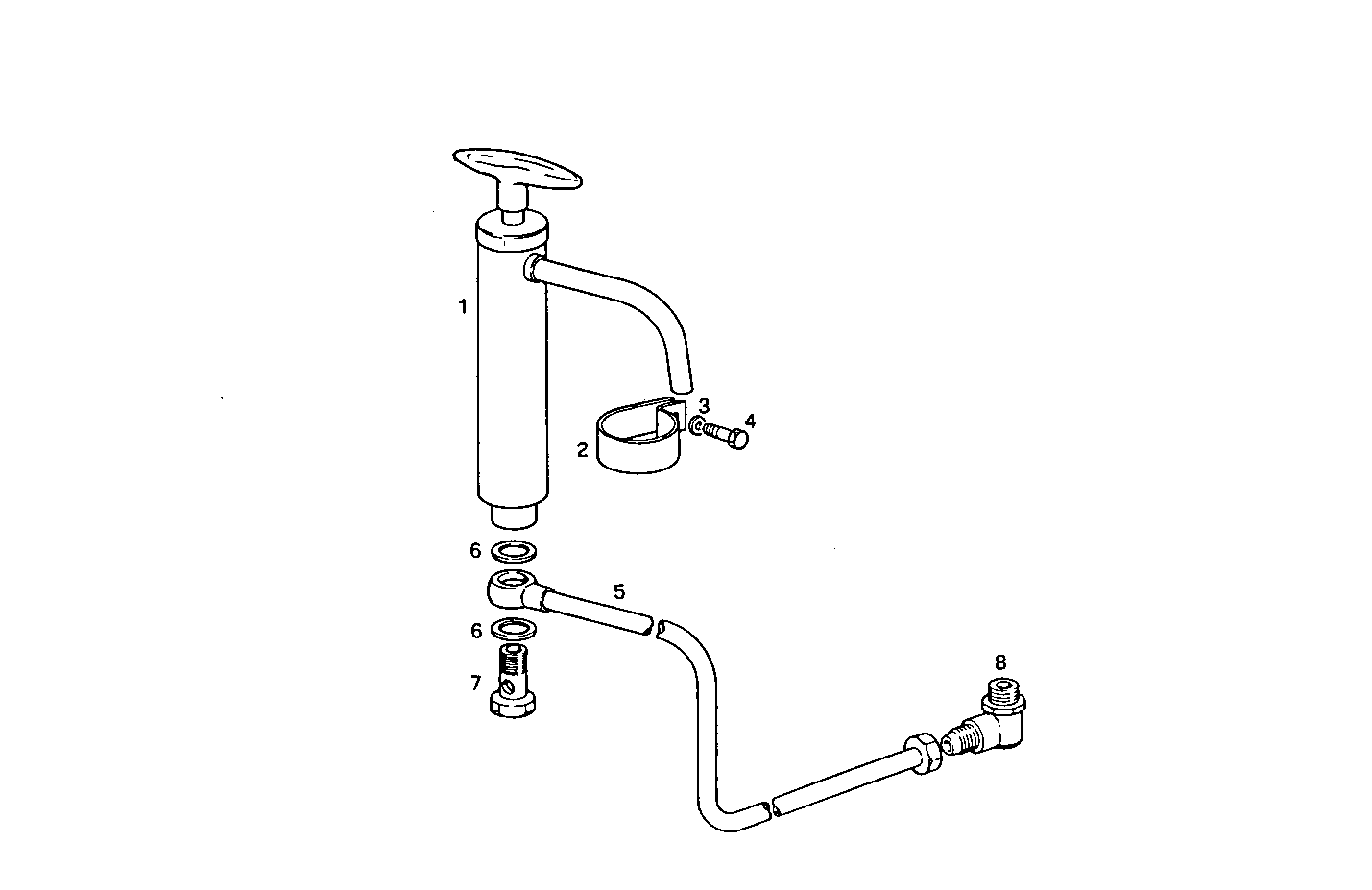

5510.032 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4935081 | CLIP |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 16607424 | SCREW M10X16 |
| 5 | 8023012 | OIL LINE |
| 6 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 7 | 4864084 | BANJO BOLT M16X1,5 |
| 8 | 4928527 | PIPE SOCKET |
