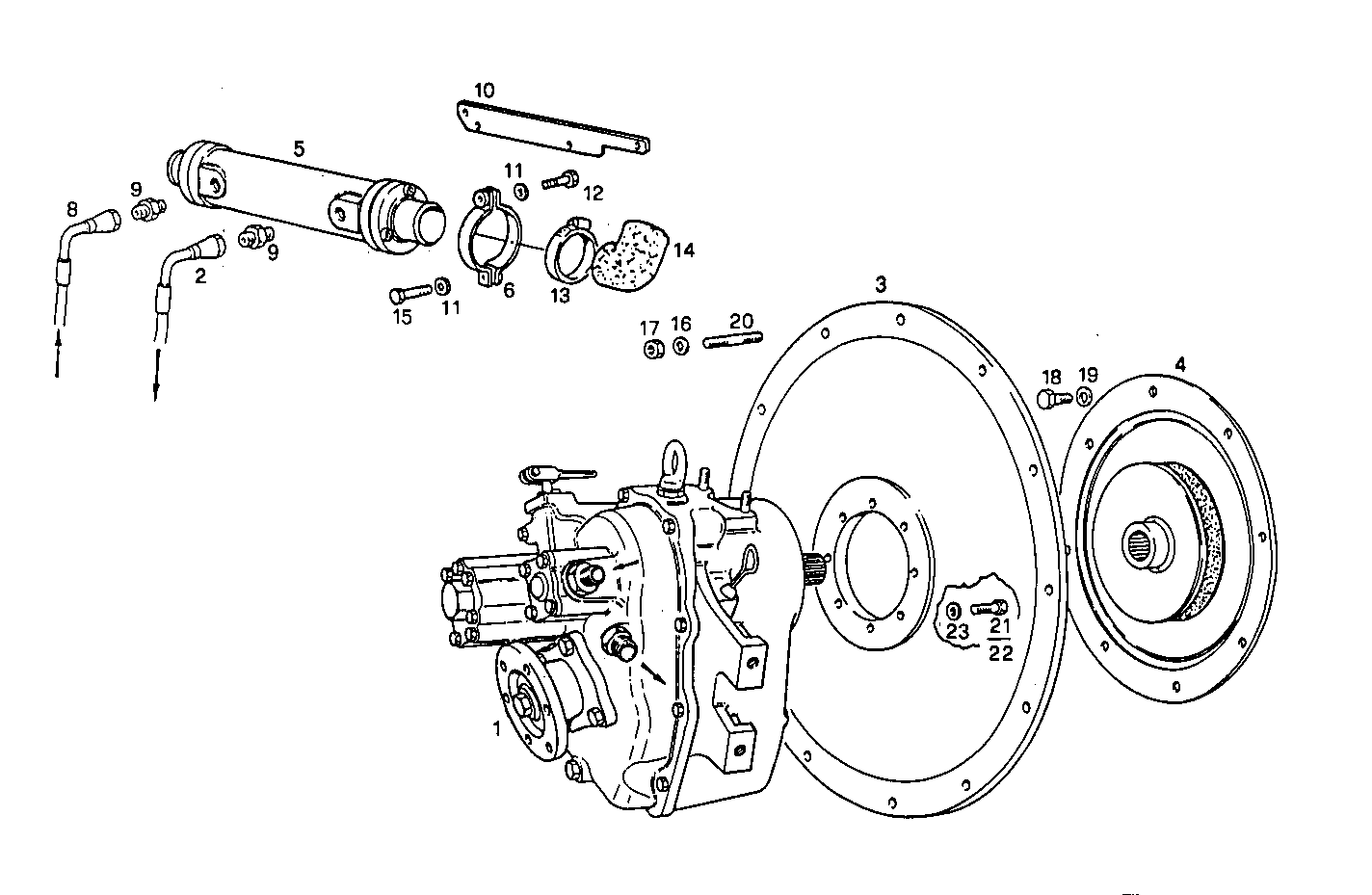

| Item |
Part number |
Description |
|
1 |
8019916 |
MARINE GEAR 2.08:1 |
|
2 |
8105620 |
HOSE |
|
3 |
8019193 |
FLANGE |
|
4 |
8019065 |
FLEXPLATE |
|
5 |
8016304 |
OIL/WATER HEAT EXCHANGER ASSY |
|
6 |
5116798 |
CLIP ASSY [from 06-93] |
|
8 |
4935779 |
HOSE |
|
9 |
8101073 |
PIPE SOCKET |
|
10 |
8016558 |
RETAINER [from 07-93] |
|
11 |
17088474 |
WASHER Ø6X12 MM |
|
12 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
13 |
17764793 |
CLIP Ø32/50 MM |
|
14 |
8102099 |
RUBBER SLEEVE |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
17 |
17038221 |
HEXAGON NUT M10 |
|
18 |
11306921 |
SCREW M10X1,25X30 |
|
19 |
17095004 |
WASHER Ø10X18X2 MM |
|
20 |
13449521 |
STUD M10X15X25 |
|
21 |
16609924 |
HEXAGON BOLT M12X30 MM (8.8) |
|
22 |
16610024 |
SCREW M12X35 |
|
23 |
17091074 |
WASHER Ø12X24X2,8 MM |
