8061M14.02

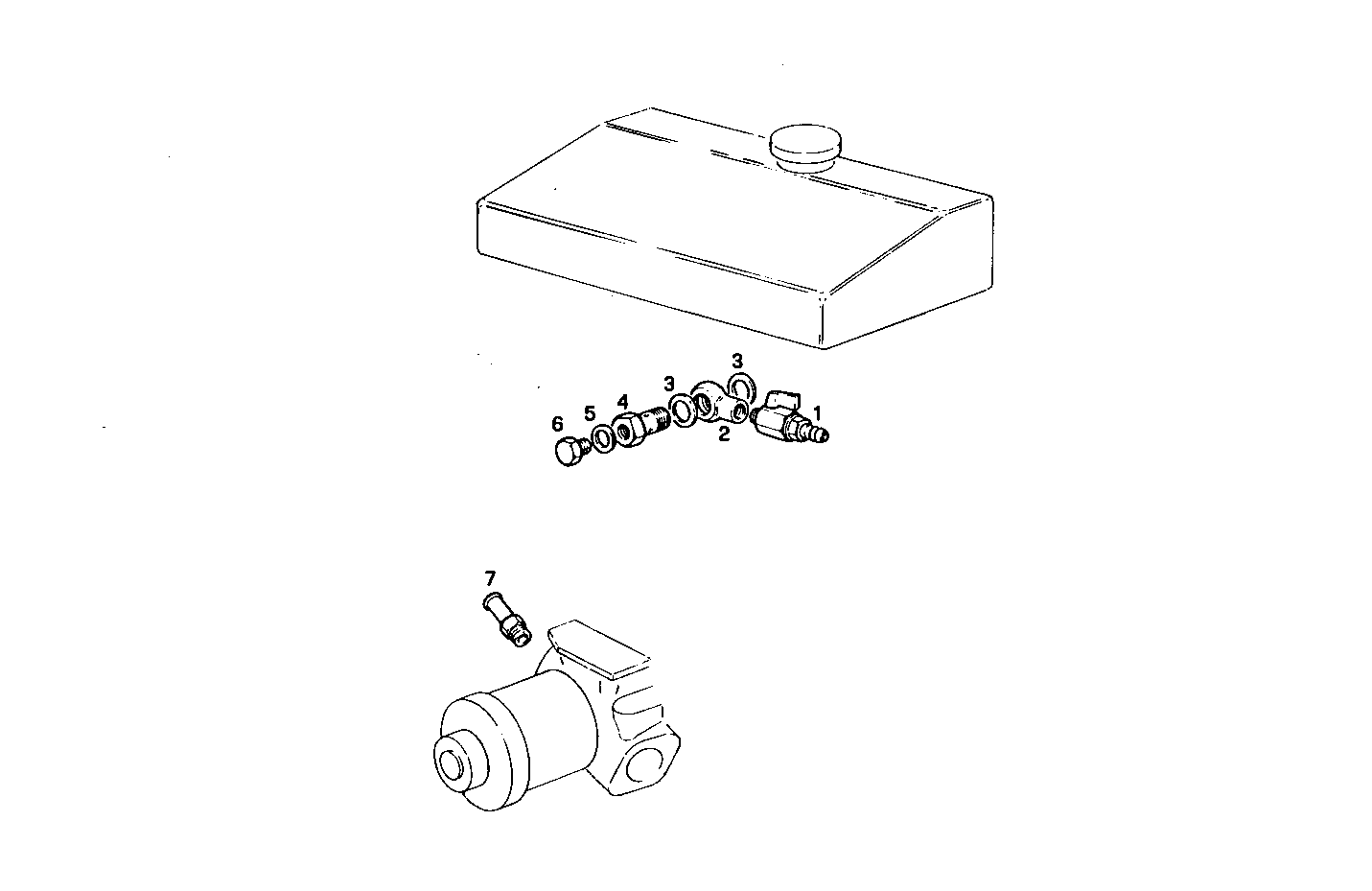

A80000013 PREARRANGEMENT FOR CALORIFIER - with sender units
| Item | Part number | Description |
|---|---|---|
| 1 | 8113932 | DRAIN COCK |
| 2 | 4927516 | PIPE SOCKET |
| 3 | 10279560 | SEAL GASKET Ø22,2 MM |
| 4 | 4928361 | SCREW CONNECTOR |
| 5 | 10282460 | SEAL GASKET Ø14X20 MM |
| 6 | 10300640 | LOCK PLUG M14X1,5 |
| 7 | 4601938 | THREADED UNION |
