8061M14.40

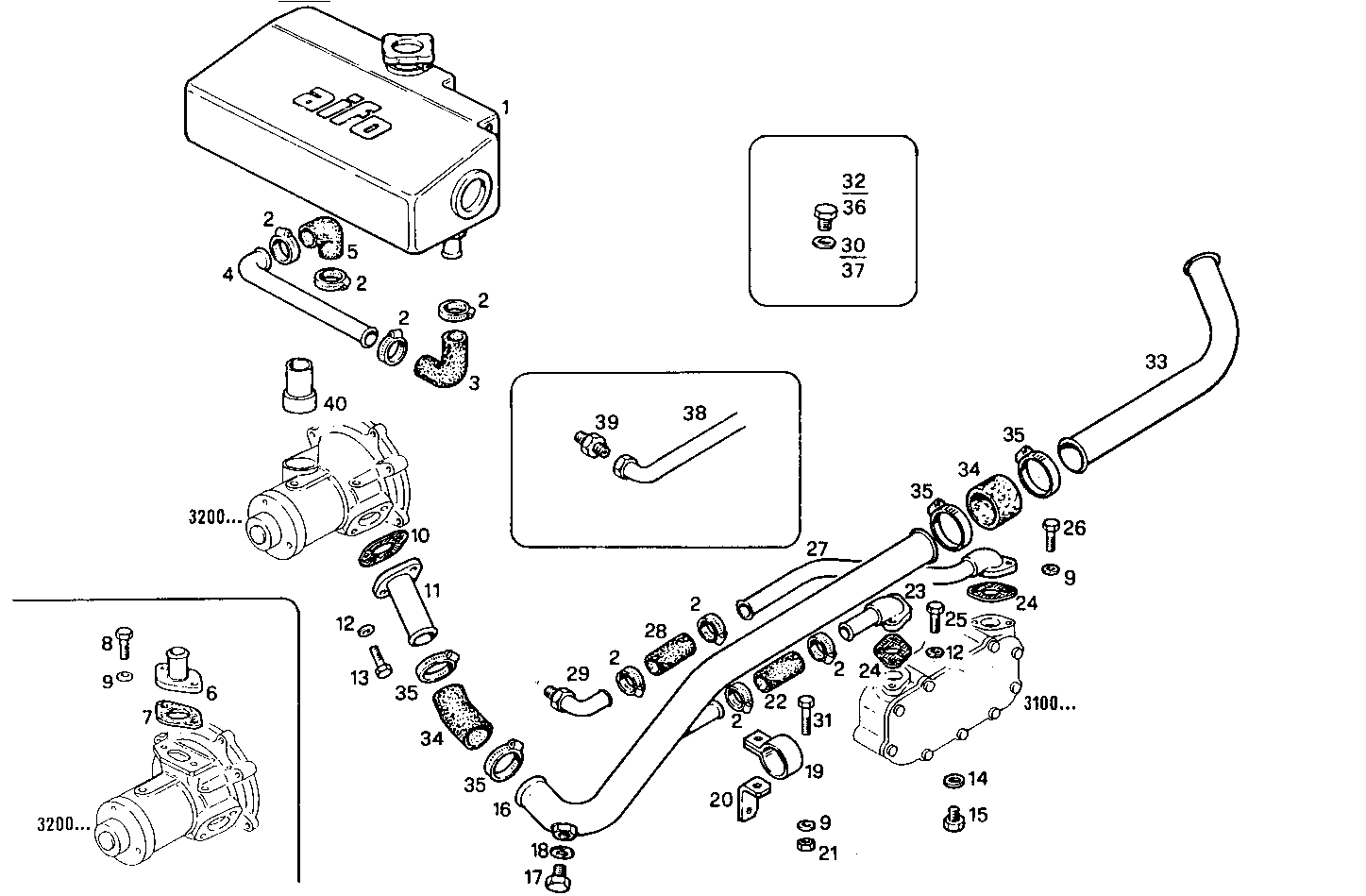

3210.024/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8109335 WATER EXPANSION TANK
2 17764593 CLIP Ø20/32 MM
3 4616762 RUBBER SLEEVE
4 8108005 WATER PIPE
5 8108085 RUBBER SLEEVE
6 8108080 WATER PIPE [up to 07-92]
7 98417182 FLAT ENGINE GASKET [up to 07-92]
8 16605424 SCREW M8X16 MM (8.8)
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 4852556 FLAT ENGINE GASKET
11 4819458 WATER PIPE
12 17094914 WASHER 8x16
13 98401723 HEXAGON BOLT M8X1,25X12 MM
14 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
15 10300711 LOCK PLUG M16
16 8110287 WATER PIPE
17 16992140 PLUG M10X1
18 4858606 GASKET Ø10X14X1 MM
19 4936741 CLIP
20 8108086 RETAINER
21 17037931 HEXAGON NUT M8X1,25
22 98425606 WATER HOSE
23 8108188 WATER PIPE
24 4853970 FLAT ENGINE GASKET
25 16625734 HEXAGON BOLT M8X35
26 16043621 HEXAGON BOLT M8X25 MM
27 4796639 WATER PIPE [up to 07-92]
28 98434883 WATER HOSE [up to ...]
29 4784798 PIPE SOCKET [up to ...]
30 10263460 WASHER Ø22X28X1,5 MM
32 10305171 PLUG M22X1,5
33 8110288 WATER PIPE
34 17742887 RUBBER SLEEVE
35 17764893 CLIP Ø40/60 MM
36 16992440 THREADED PLUG M16X1,5
37 4858609 WASHER Ø16X22 MM SP=1,5 MM
38 98432541 WATER PIPE [from 07-92]
39 98433191 PIPE SOCKET [from 07-92]
40 8014141 WATER PIPE [from 07-92]
