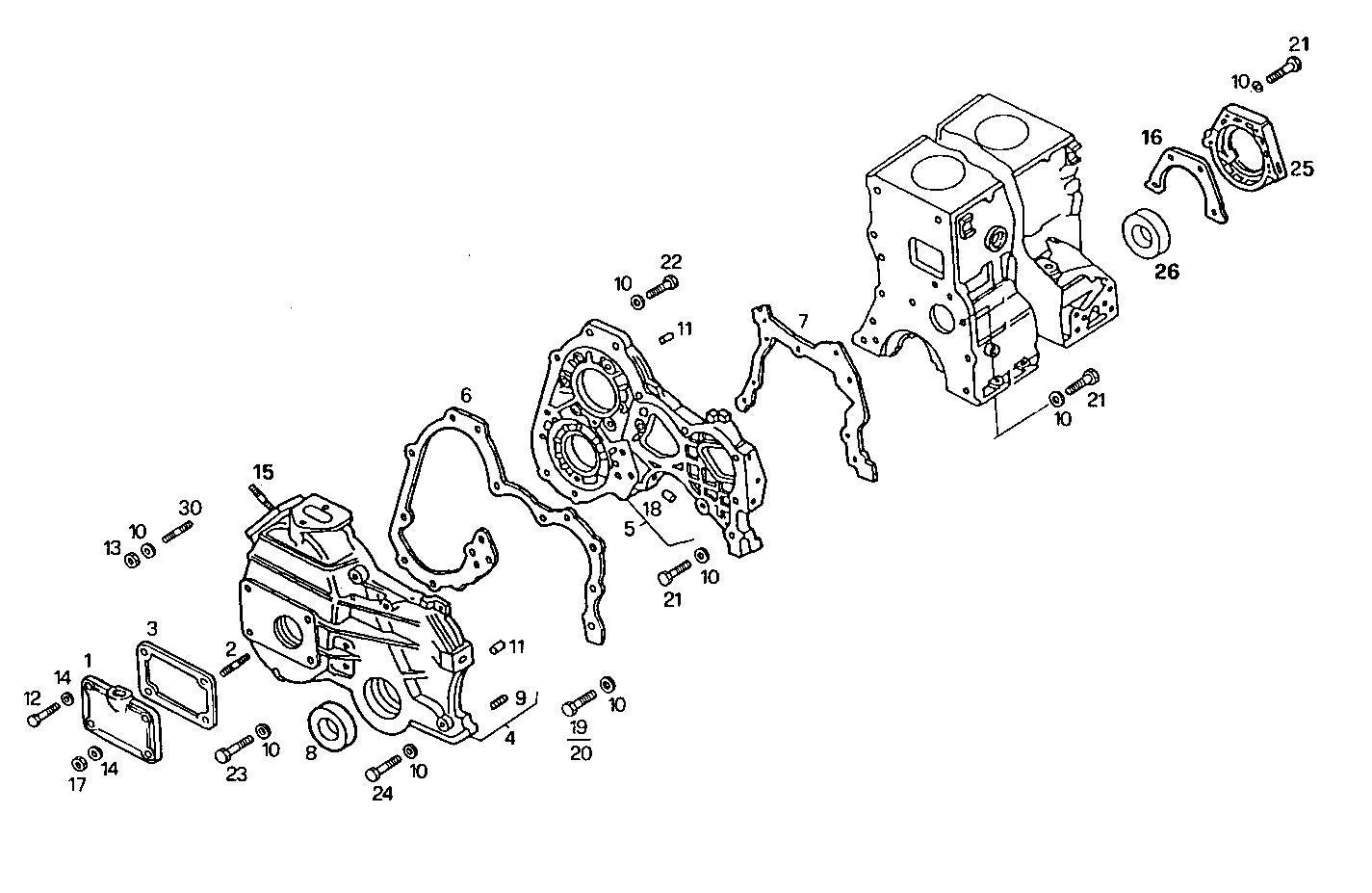

| Item |
Part number |
Description |
|
1 |
4765622 |
COVER |
|
2 |
4615276 |
STUD M8X20 |
|
3 |
4850986 |
FLAT ENGINE GASKET |
|
4 |
4800486 |
FRONT C.CASE COVER ASSY [from ...] |
|
5 |
500321670 |
TIMINGGEAR HOUSIN ASSY REAR |
|
6 |
98424045 |
FLAT ENGINE GASKET |
|
7 |
98424046 |
FLAT ENGINE GASKET |
|
8 |
99469265 |
SHAFT SEAL CORCOS |
|
9 |
13526170 |
THREADED INSERT M10X1,25X20 MM |
|
10 |
17094914 |
WASHER 8x16 |
|
11 |
10839610 |
DOWEL PIN Ø8 MM |
|
12 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
17088474 |
WASHER Ø6X12 MM |
|
15 |
13516821 |
STUD M8X12X20 MM |
|
16 |
4849994 |
FLAT ENGINE GASKET |
|
17 |
17037821 |
HEXAGON NUT M6X1 |
|
18 |
4605220 |
OIL NOZZLE |
|
19 |
16043521 |
SCREW M8X22 |
|
20 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
21 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
22 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
23 |
16044921 |
HEXAGON BOLT M8X1,25X85 MM |
|
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
25 |
98489586 |
REAR C.CASE COVER |
|
26 |
99457401 |
SHAFT SEAL CORCOS |
|
30 |
16746824 |
STUD M8X30 MM (8.8) |
