8061Si05.05

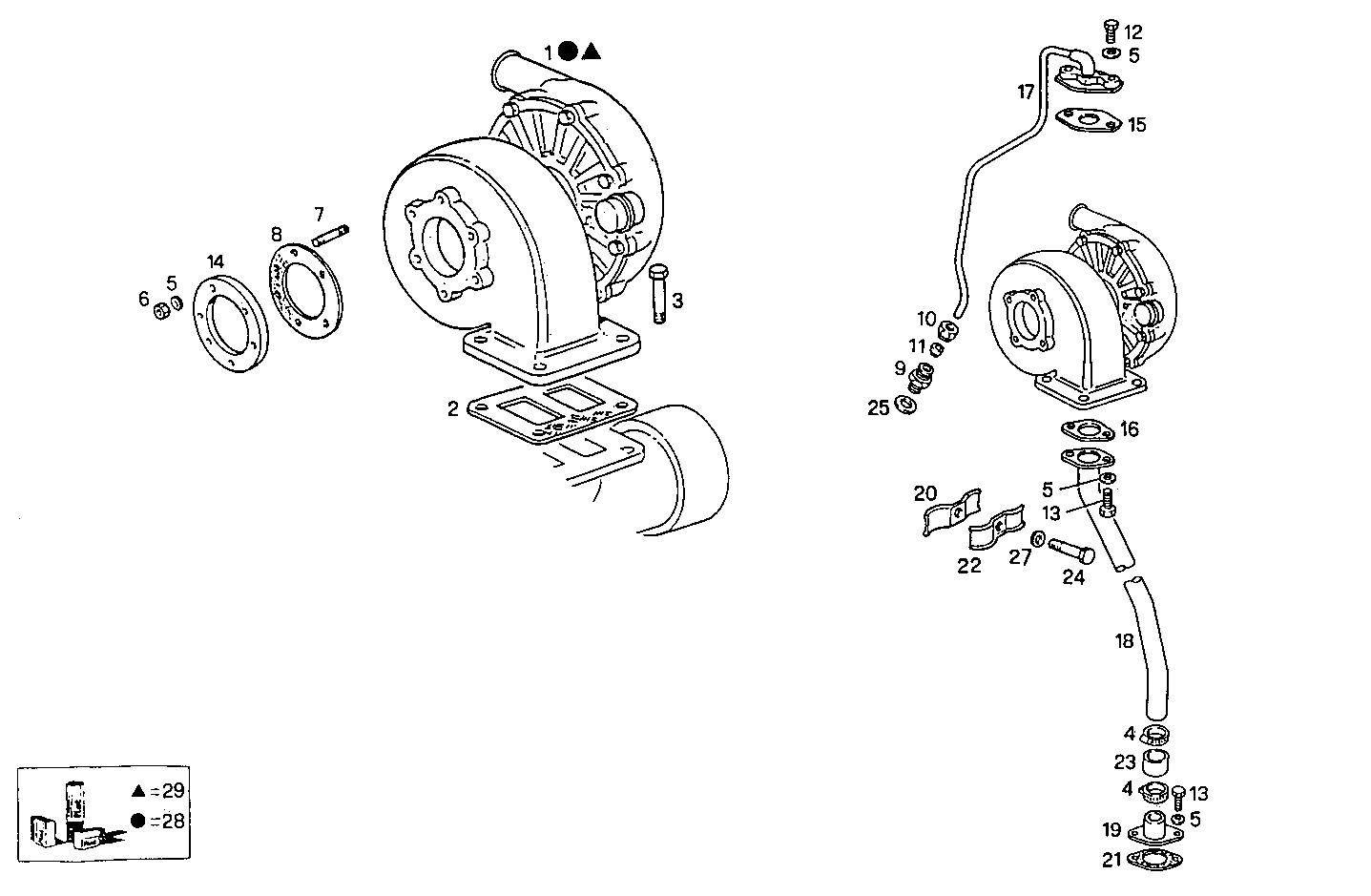

2400.103 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 4762527 TURBOCHARGER ASSY GARRETT
2 98428396 FLAT ENGINE GASKET
3 98491312 HEXAGON BOLT
4 17764592 CLIP Ø20/32 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17037931 HEXAGON NUT M8X1,25
7 13517121 STUD M8X12X28 MM
8 8009733 GASKET
9 16500311 PIPE SOCKET M16X1,5/M18X1,5
10 16506911 NUT M18X1,5
11 16507611 WASHER Ø12 MM
12 16605824 HEXAGON BOLT M8X35 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 8113654 FLANGE
15 98415922 FLAT ENGINE GASKET
16 98415923 FLAT ENGINE GASKET
17 4772720 OIL LINE INNER
18 500336313 OIL LINE
19 4754153 FLANGED SOCKET
20 4755435 RETAINER
21 98401046 FLAT ENGINE GASKET
22 4755436 RETAINER
23 98420478 RUBBER SLEEVE
24 16603724 HEXAGON BOLT M6X20 MM (8.8)
25 16508260 WASHER Ø16X20 MM
27 17088174 WASHER Ø6X12X1,2 MM
28 8092757 KIT-TURBOCHARGER
29 8092758 KIT-TURBOCHARGER
