8061Si05.05

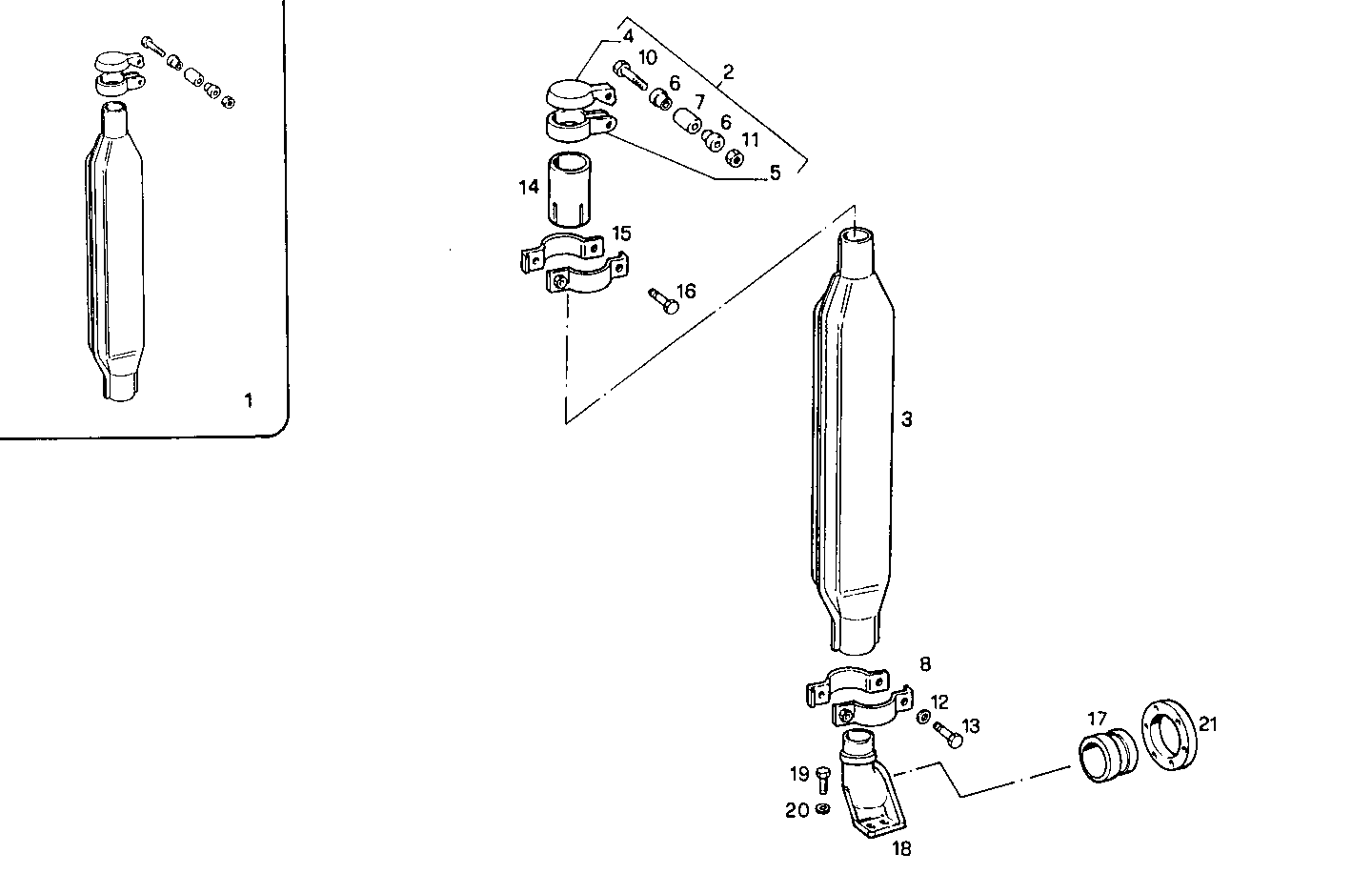

A23010010 VERTICAL SILENCER

Iveco/FPT VERTICAL SILENCER

Item Part number Description
1 8014907 SILENCER ASSY
2 5140885 COVER ASSY
3 5146629 SILENCER
4 5134341 COVER
5 5134340 CLIP
6 5134344 BUSH
7 5134343 SPACING BAR
8 5116800 CLIP
10 16602424 SCREW M5X30 MM
11 17156821 NUT M5X0,8
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 8015188 EXHAUST PIPE
15 5116798 CLIP ASSY [from 06-93]
16 16605524 HEXAGON BOLT M8X20 MM
17 4719238 CIRCLIP
18 4719116 EXHAUST ELBOW
19 11306921 SCREW M10X1,25X30
20 17090174 SPRING WASHER Ø10X20 MM
21 98402022 FLANGE
