A24060010 PRECISION ADJUSTMENT ACCELERATOR - genset

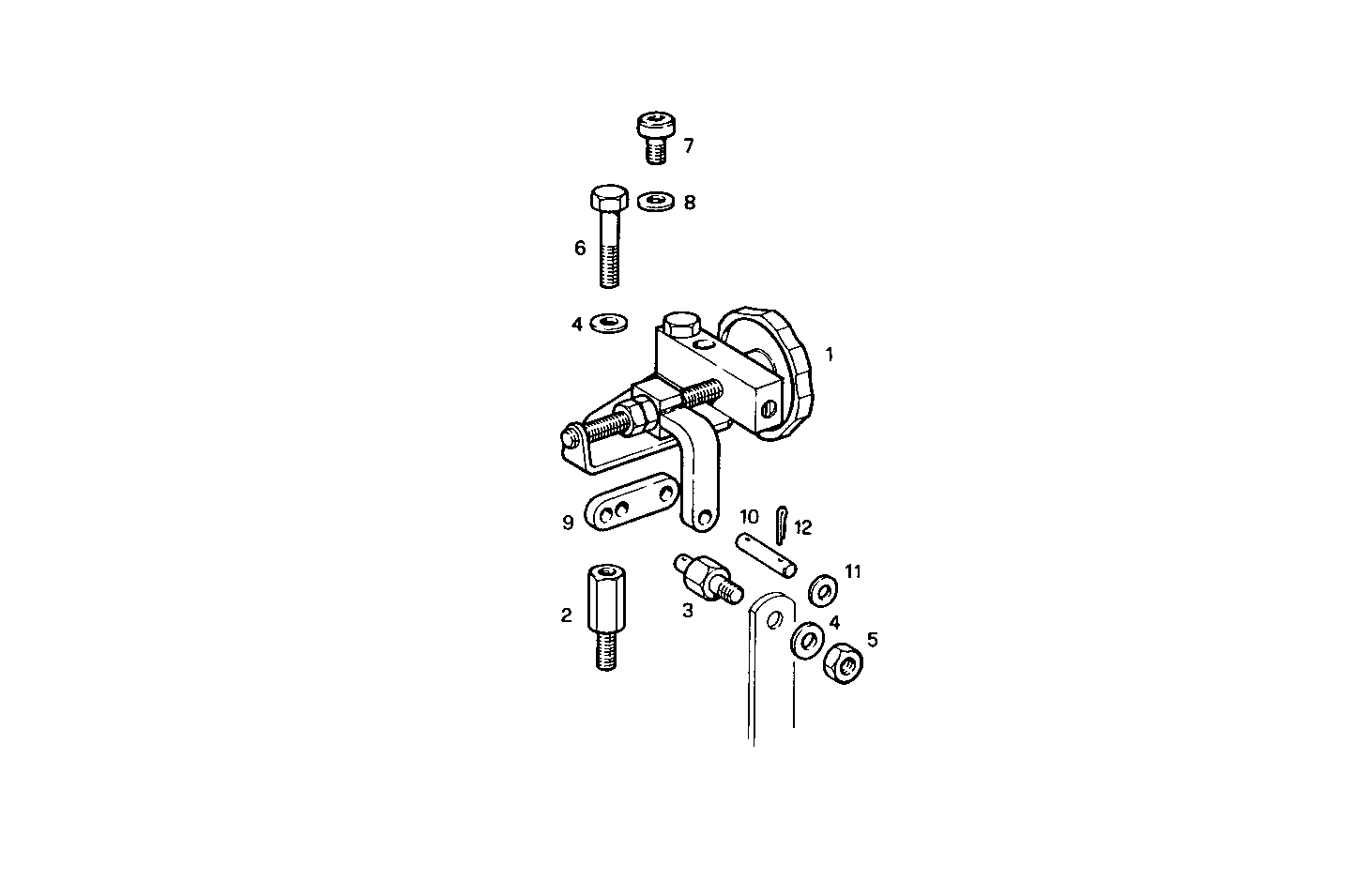

Iveco/FPT PRECISION ADJUSTMENT ACCELERATOR

Item Part number Description
1 8012879 CONTROL ASSEMBLY
2 8012878 SPACING BAR
3 8110876 SPACING BAR
4 17088474 WASHER Ø6X12 MM
5 16979331 HEXAGON NUT M6X1
6 16603924 HEXAGON BOLT M6X30 MM
7 17133114 SCREW M6X12
8 10569279 WASHER Ø6X9,9X1,6 MM
9 8013480 CLEVIS
10 17718411 PIN Ø5 MM
11 17094504 WASHER Ø5,3X10 MM
12 16851301 SPLIT PIN
