8061Si05.05

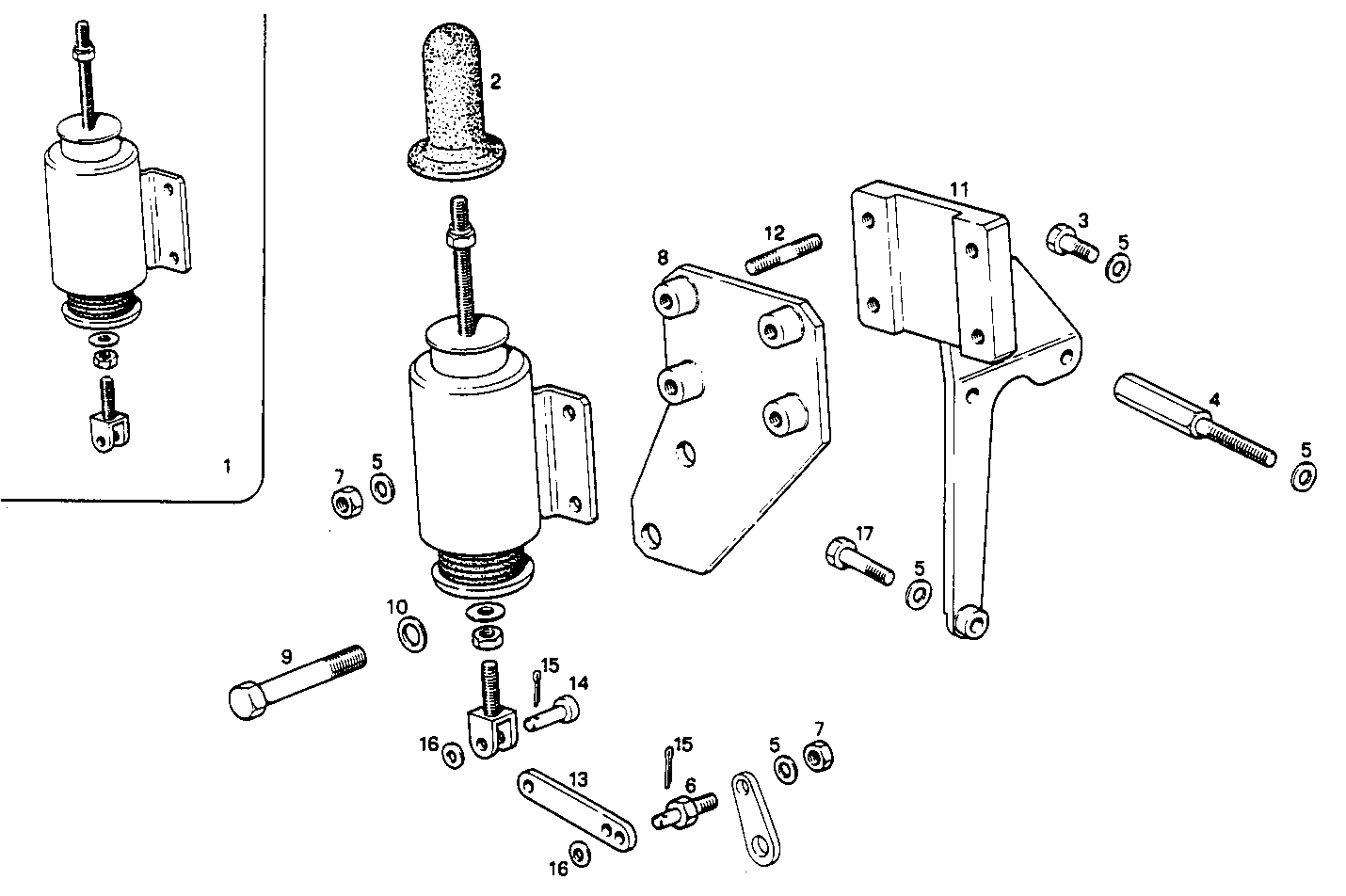

A38440016 STOP SOLENOID - ENERGIZE TO RUN - 24V

Iveco/FPT STOP SOLENOID - ENERGIZE TO RUN - 24V

Item Part number Description
1 8112462 SOLENOID ASSY
2 8111523 PROTECTIVE HOOD
3 16603624 HEXAGON BOLT M6X16 MM (8.8)
4 8012958 SPACING BAR
5 17088474 WASHER Ø6X12 MM
6 8012959 PIN
7 17037821 HEXAGON NUT M6X1
8 8012076 PLATE [up to 04-92]
9 11306921 SCREW M10X1,25X30
10 11198371 SPRING WASHER Ø10X20 MM
11 8012956 SUPPORT
12 16744824 STUD M6X12X12
13 8012882 CLEVIS
14 17718411 PIN Ø5 MM
15 16852501 SPLIT PIN Ø1,6X12 MM
16 17094504 WASHER Ø5,3X10 MM
17 16603824 SCREW M6X25
