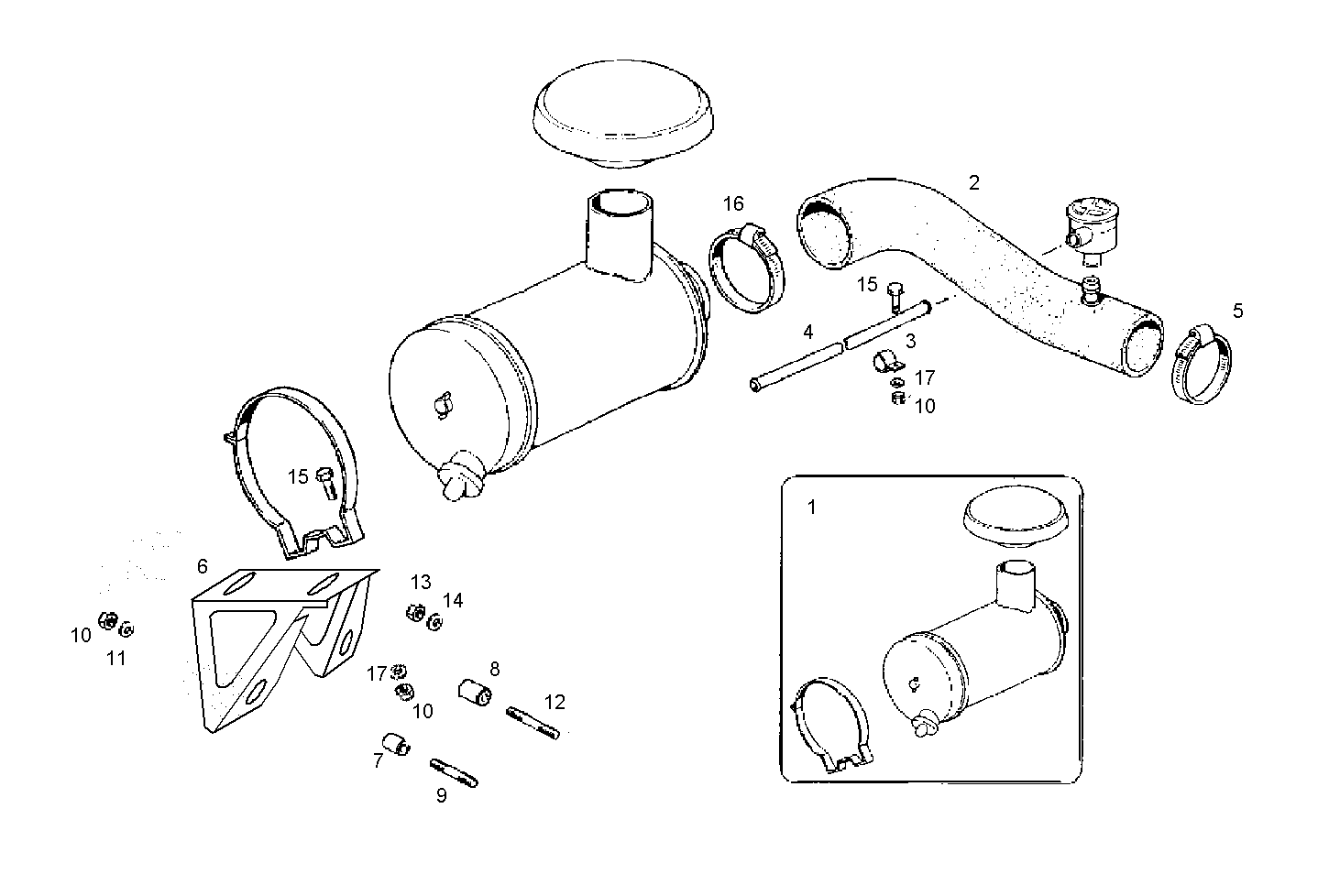

| Item |
Part number |
Description |
|
1 |
8031857 |
AIR CLEANER VIRGIS |
|
2 |
8020620 |
RUBBER SLEEVE |
|
3 |
8110499 |
RETAINER |
|
4 |
8027841 |
AIR PIPE/DUCT |
|
5 |
17765191 |
CLIP Ø70/90 MM |
|
6 |
503110073 |
SUPPORT |
|
7 |
8015452 |
SPACING BAR |
|
8 |
8015453 |
SPACING BAR |
|
9 |
16729524 |
STUD M8X1,25X30 |
|
10 |
17037925 |
HEXAGON NUT M8X1,25 |
|
11 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
12 |
16731524 |
STUD M8X40 MM |
|
13 |
17038131 |
HEXAGON NUT M10 |
|
14 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
15 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
16 |
4788410 |
CLIP Ø92/98 MM |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
