8061Si06.05

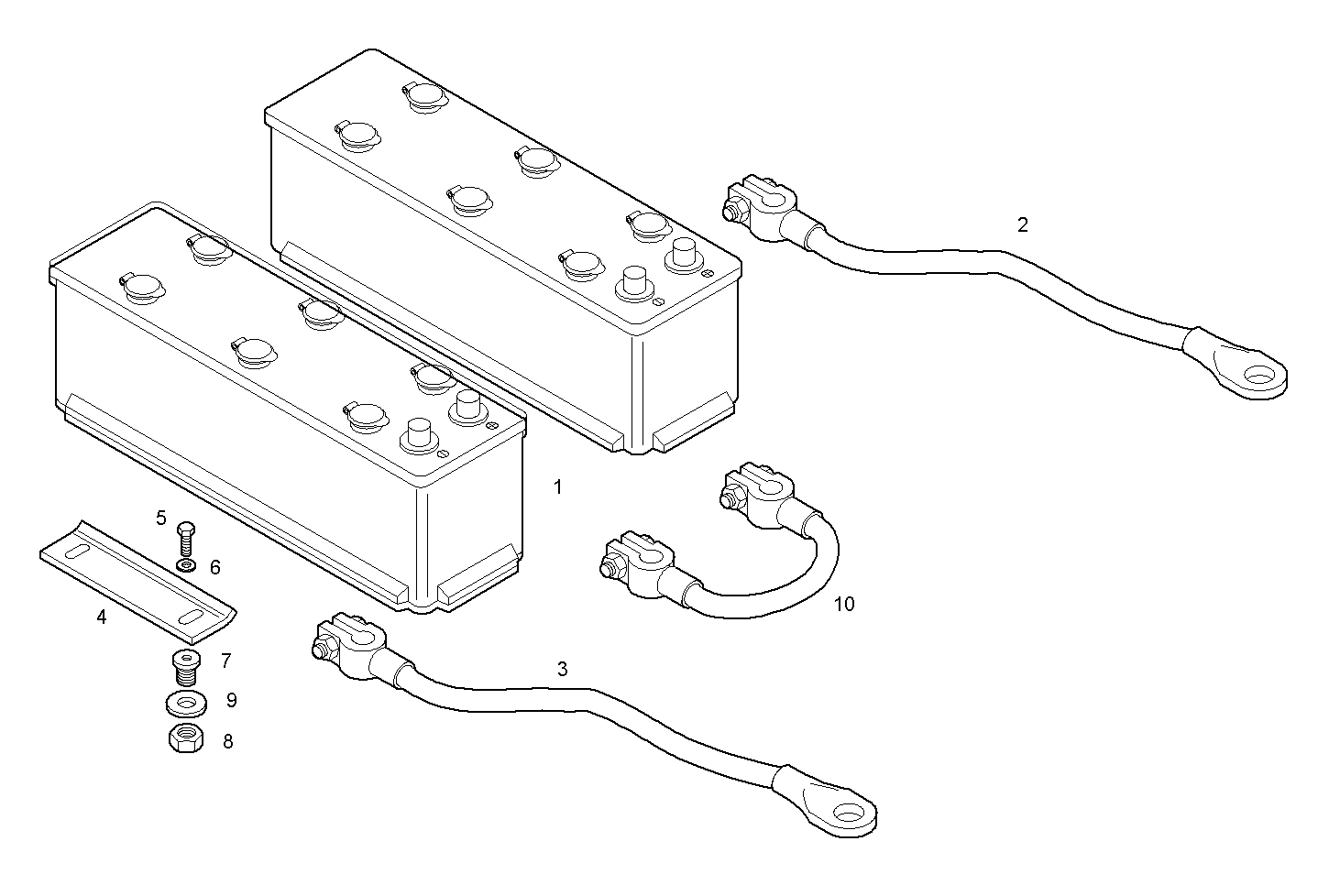

A30040017 STARTING BATTERY 24V
Item | Part number | Description |
---|---|---|
1 | 8029963 | BATTERY 12V |
2 | 4931190 | WIRE/CABLE (+) |
3 | 8031451 | WIRE/CABLE (-) |
4 | 8028205 | FASTENING BRACKET |
5 | 16602124 | SCREW M5X16 MM |
6 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
7 | 8030637 | SPACER BUSH |
8 | 17038131 | HEXAGON NUT M10 |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 4930994 | WIRE/CABLE |
