8061Si06.05

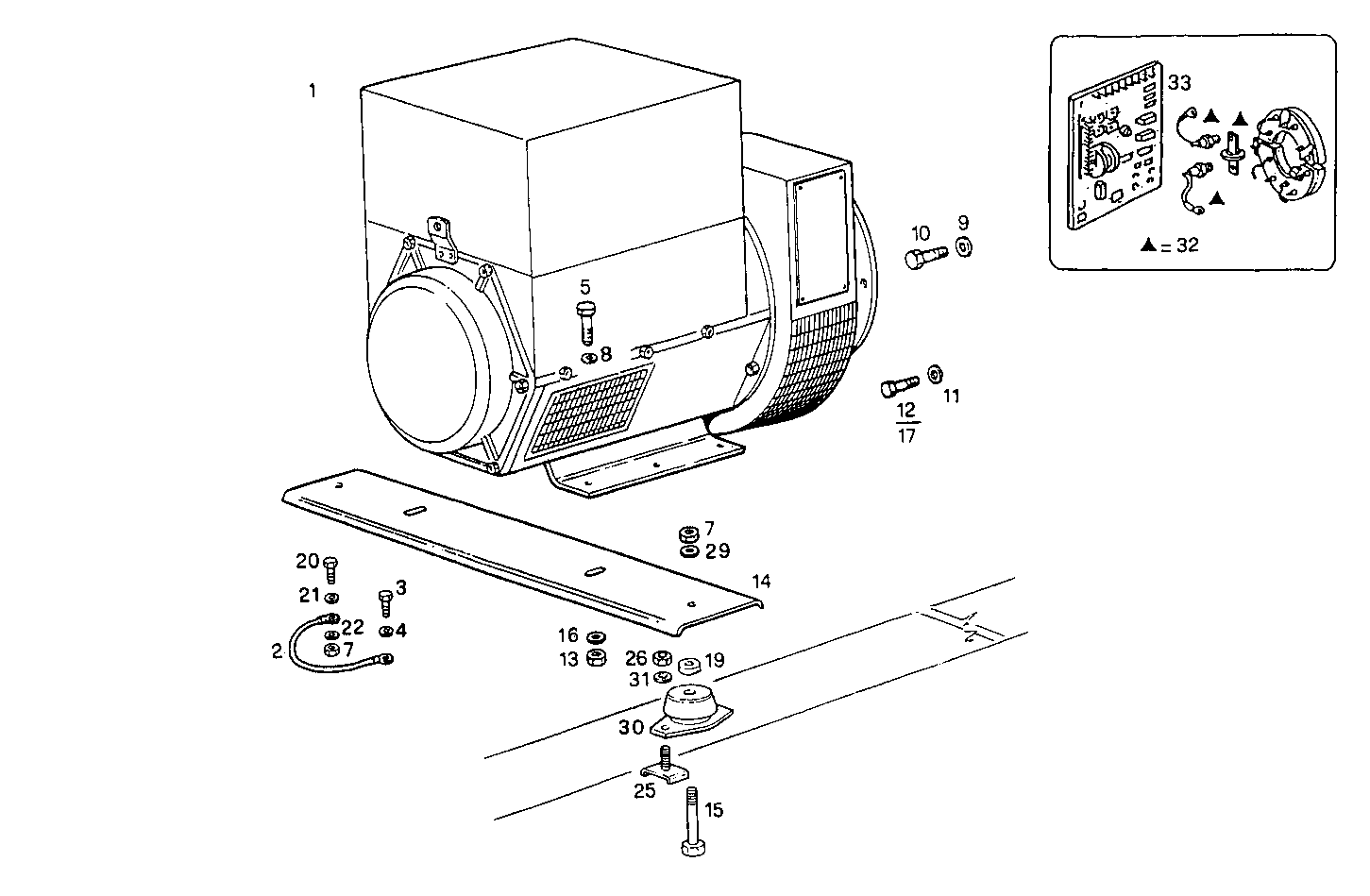

A37010071 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8020805 ELECTRIC MACHINE UCD 224 G 16 50-60HZ [from 05-95]
2 8110852 EARTH WIRE
3 16043124 SCREW M8X14 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16614824 SCREW M16X50
7 17037931 HEXAGON NUT M8X1,25
8 4929369 WASHER
9 17494934 WASHER Ø10X18,1X2,2 MM
10 15970521 HEXAGON BOLT M10X20 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
13 17038921 NUT M16X2
14 8015167 SUPPORT
15 16615624 HEXAGON BOLT M16X110 MM
16 17092174 SPRING WASHER Ø16X32X3,4
17 16608024 HEXAGON BOLT M10X1,25X45 MM
19 8026584 SPACING BAR
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 17094714 WASHER Ø6,4X12 MM
22 17710174 WASHER Ø6X11 MM
25 8016024 SCREW
26 17038121 HEXAGON NUT M10
29 17092374 SPRING WASHER Ø16X34X3,6 MM
30 4911960 RUBBER PAD
31 17090974 SPRING WASHER Ø12X24 MM
32 8092769 KIT-GENERATOR Stamford
33 8106738 EL.MACHINE VOLTAGE REGUL. Stamford
