8061Si06.05

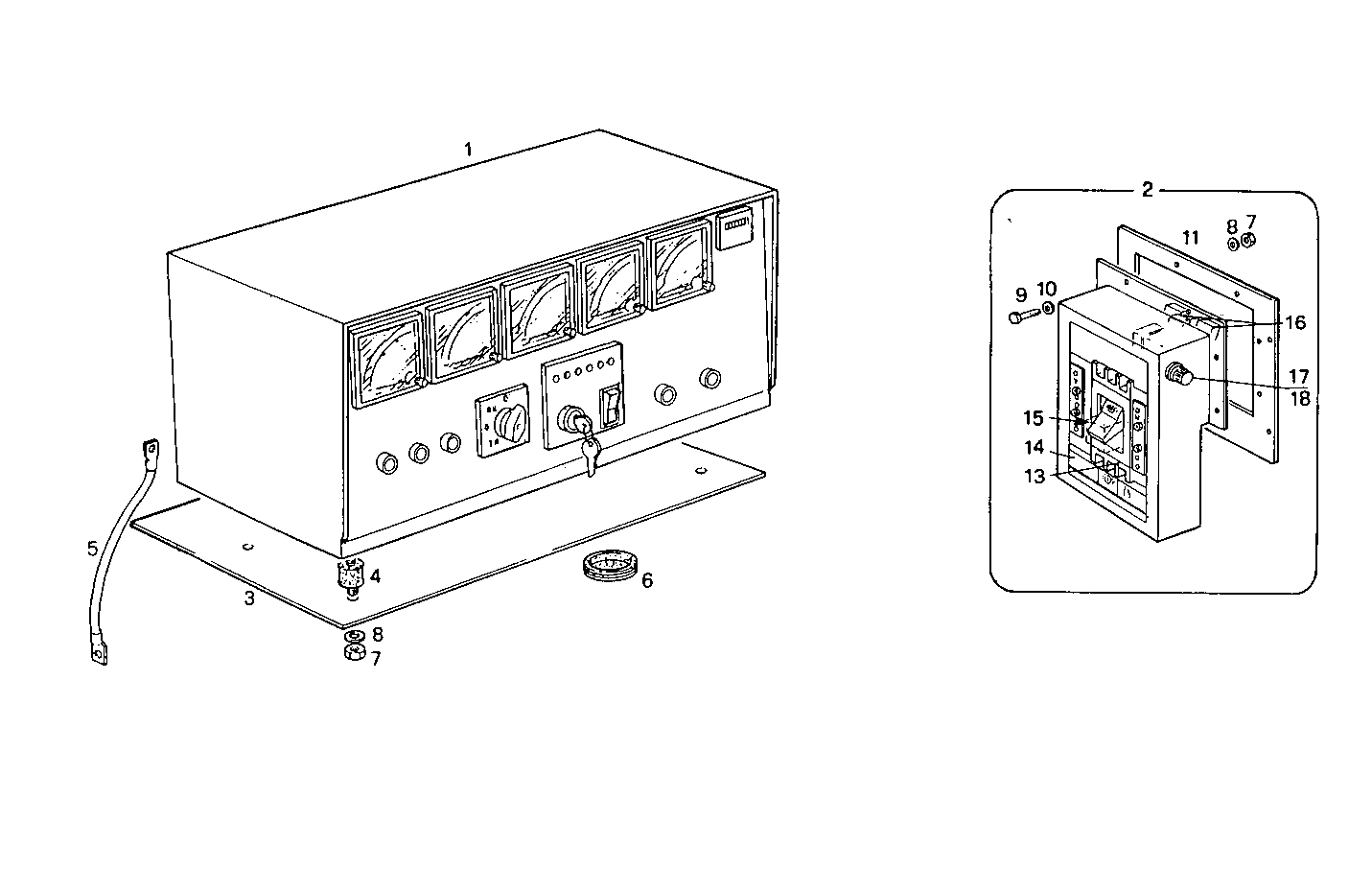

A61330002 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI (GAC-HUGLI)
| Item | Part number | Description |
|---|---|---|
| 1 | 8019302 | CONTROL BOARD ASSY 380V 50-60HZ |
| 2 | 8020588 | SWITCH 160A |
| 3 | 8019140 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 16603524 | SCREW M6X12 MM (8.8) |
| 11 | 8021006 | COVER |
| 12 | 17094714 | WASHER Ø6,4X12 MM |
| 13 | 8021330 | SWITCH |
| 14 | 8021329 | SWITCH |
| 15 | 8021328 | MINIMUN TENSION COIL |
| 16 | 8090285 | TRANSFORMATOR |
| 17 | 8105267 | FUSE BOX 2A |
| 18 | 8105216 | FUSE 10A |
