8061Si06.05

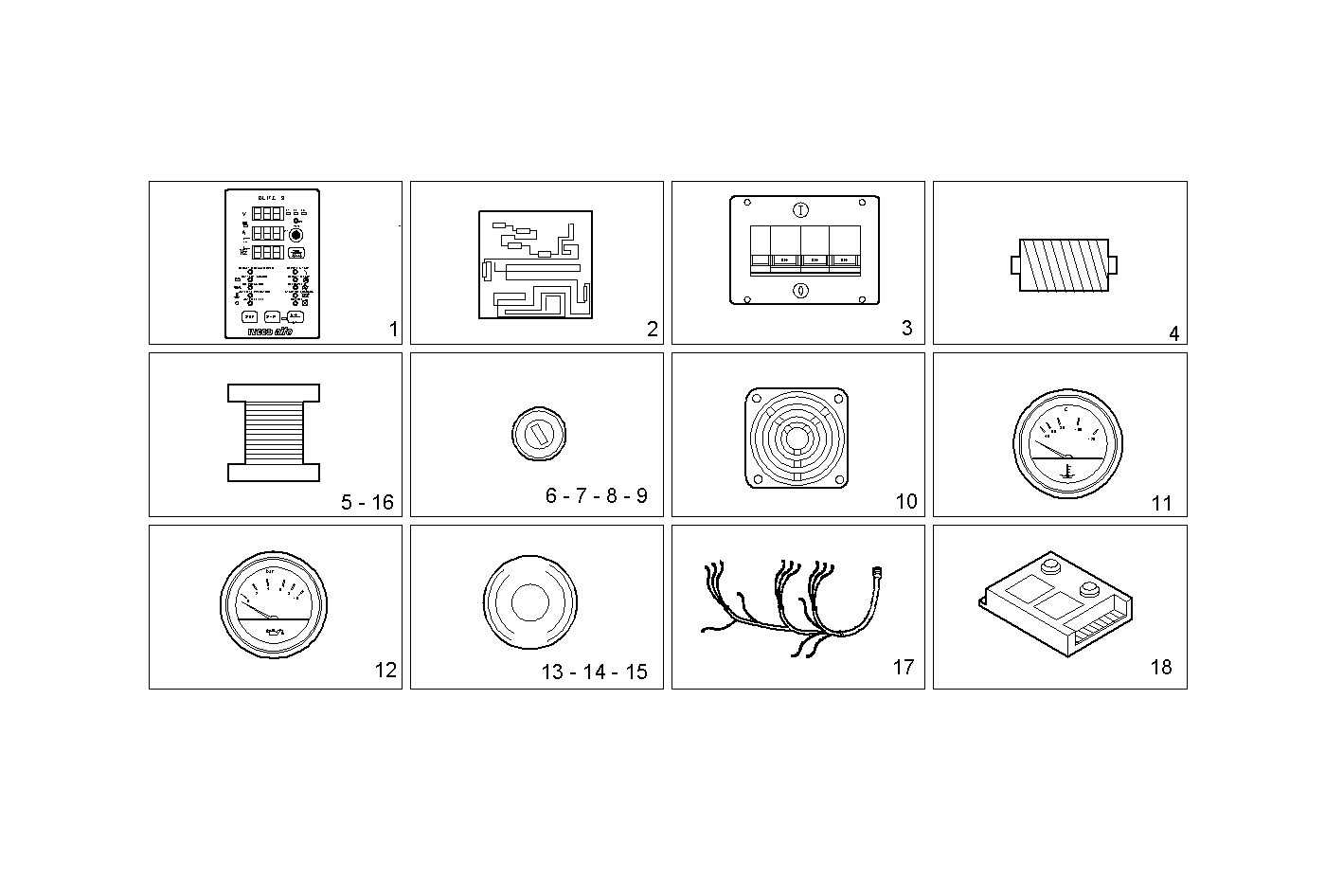

Q0000085 DIGITAL INSTRUMENT PANEL 12V - (components)

Iveco/FPT DIGITAL INSTRUMENT  PANEL 12V

Item Part number Description
1 8093802 ELECTRONIC CARD
2 8093749 ELECTRONIC CARD
3 8094625 THERMOSWITCH
4 8094661 MINIMUN TENSION COIL
5 8094600 AMMETER TRANSFORMATOR
6 8094598 FUSE BOX
7 8094599 FUSE 2A
8 8094621 FUSE 15A
9 8094620 FUSE 10 A
10 8094601 ACOUSTIC HORN
11 8094623 THERMOMETER
12 8094622 PRESSURE GAUGE
13 8094664 PUSH BUTTON
14 8094663 SPRING CONTACT
15 8094662 SPRING CONTACT
16 8094605 SPRING CONTACT
17 8094690 ENGINE HARNESS
18 8017472 SPEED CONTROL GAC-HUGLI 12V
