8061Si06.05

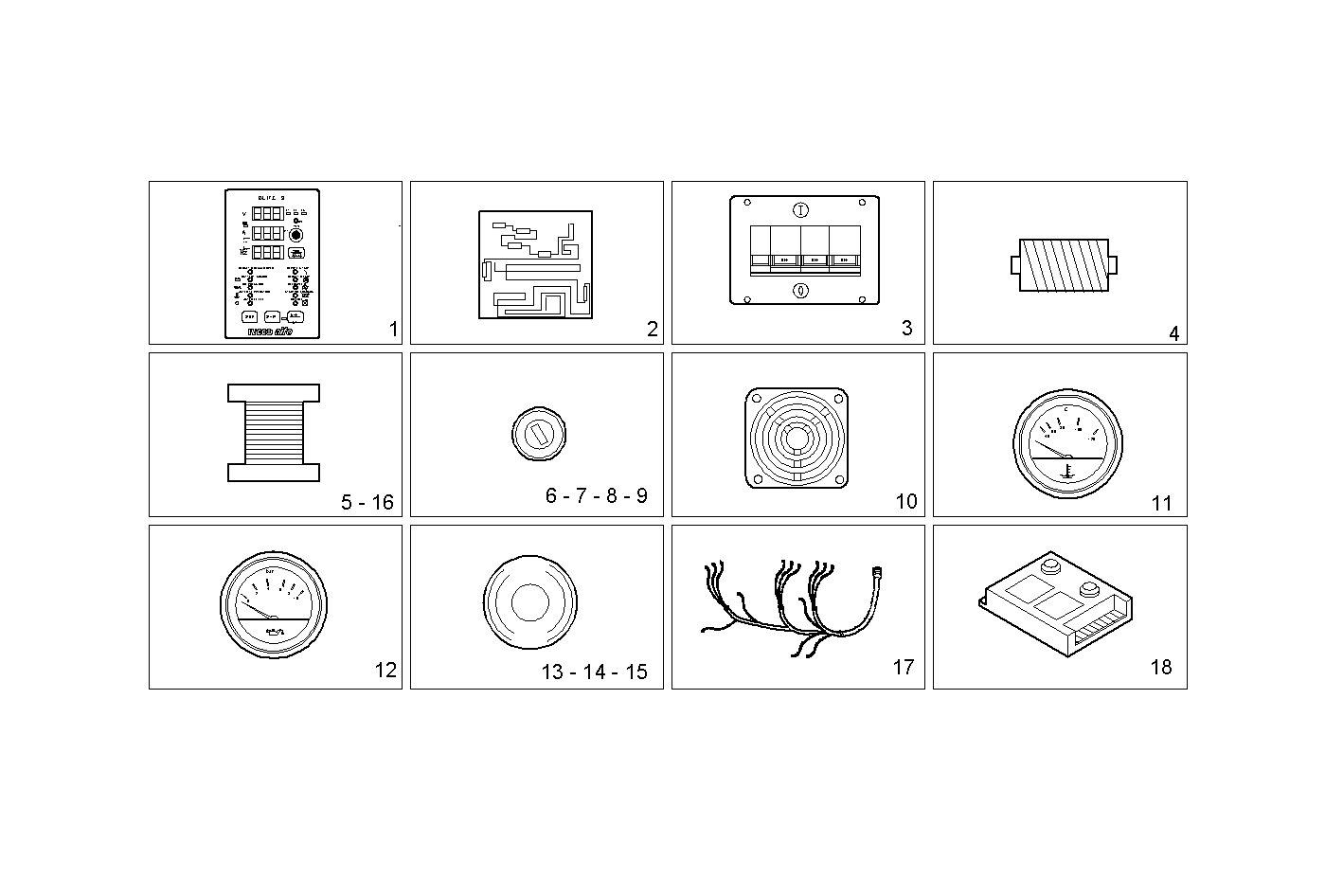

Q0000089 DIGITAL INSTRUMENT PANEL 24V - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8093802 | ELECTRONIC CARD |
| 2 | 8093749 | ELECTRONIC CARD |
| 3 | 8094626 | THERMOSWITCH |
| 4 | 8094661 | MINIMUN TENSION COIL |
| 5 | 8094602 | AMMETER TRANSFORMATOR |
| 6 | 8094598 | FUSE BOX |
| 7 | 8094599 | FUSE 2A |
| 8 | 8094621 | FUSE 15A |
| 9 | 8094620 | FUSE 10 A |
| 10 | 8094601 | ACOUSTIC HORN |
| 11 | 8094640 | THERMOMETER |
| 12 | 8094638 | PRESSURE GAUGE |
| 13 | 8094664 | PUSH BUTTON |
| 14 | 8094663 | SPRING CONTACT |
| 15 | 8094662 | SPRING CONTACT |
| 16 | 8094605 | SPRING CONTACT |
| 17 | 8094690 | ENGINE HARNESS |
| 18 | 8017472 | SPEED CONTROL GAC-HUGLI 12V |
