8061Si07.05

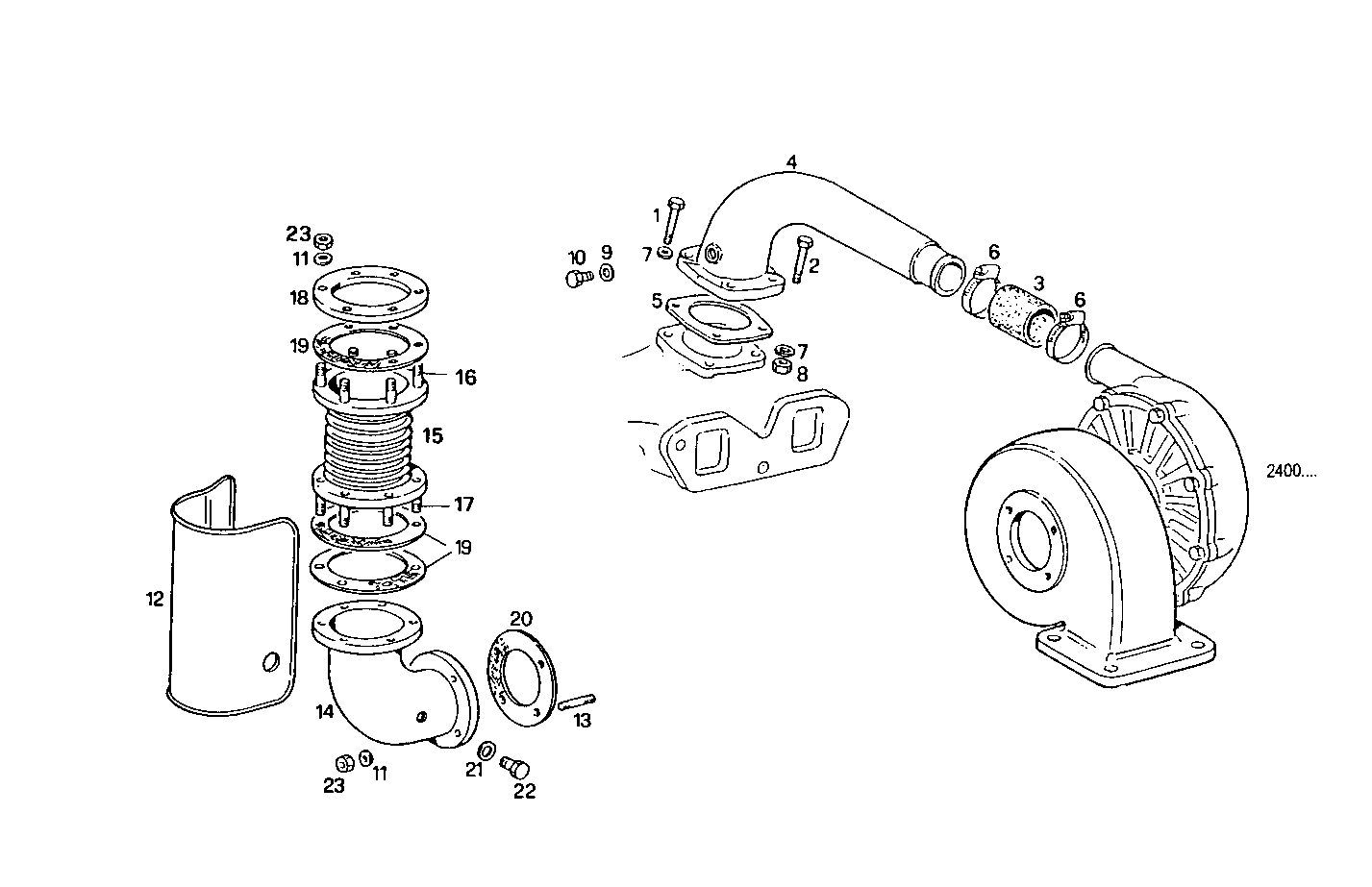

2420.218/02 SUPERCHARGING LINES [D 1-7-04] [from1-7-04]

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 16625734 HEXAGON BOLT M8X35
2 16605624 HEXAGON BOLT M8X25 MM (8.8)
3 98421377 RUBBER SLEEVE Ø51 MM
4 4754495 INTAKE ELBOW
5 98400790 FLAT ENGINE GASKET
6 98490783 CLIP Ø55-65 MM
7 17094914 WASHER 8x16
8 17037931 HEXAGON NUT M8X1,25
9 10279560 SEAL GASKET Ø22,2 MM
10 10305171 PLUG M22X1,5
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 8008237 PROTECTION
13 16729424 STUD M8X1,25X25
14 8039822 EXHAUST ELBOW
15 4935378 EXHAUST BELLOWS
16 13516921 STUD M8X12X22 MM
17 13517221 STUD M8X12X30 MM
18 4919183 FLANGE
19 8009606 GASKET
20 8009733 GASKET
21 4858607 WASHER Ø12X17 MM SP=1,5 MM
22 16992211 THREADED PLUG M12X1,5
23 17042531 HEXAGON NUT M8
